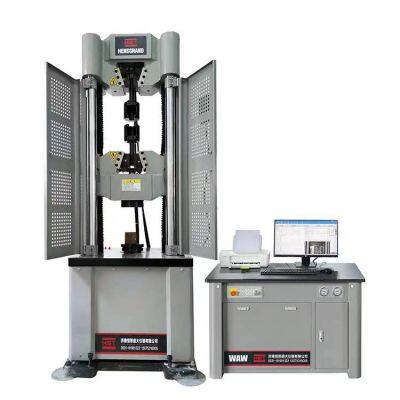

HST 1000kn Electromechanical Universal Testing Machine for Tensile
US$ 90972.70
1 - 4 Set
US$ 89573.12
≥5 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12months
brand name:
HST
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-WAW-F SERIES 2000KN 3000KN Single Test Space Servo- Hydraulic Universal Testing Machine Servo Control Strength TesterUS$ 75000 - 80000MOQ: 1 Set -
HST-WAW-F SERIES 300KN 600KN Single Test Space Servo- Hydraulic Universal Testing Machine Servo Control Strength TesterUS$ 12900 - 15900MOQ: 1 Set
-
Factory Direct Customized Chain Steel Strand Tensile Test Hydraulic Tensile Testing MachineUS$ 193491.94 - 200020.98MOQ: 1 Set
-
HST Manufacturing Universal Tensile Strength Tester / Universal Testing Machine PriceUS$ 131210.63 - 138327.49MOQ: 1 Set
-
WAW Electro-hydraulic Servo Universal Testing Machine 3000KN 4000KN Hydraulic Universal Testing Machine UTMUS$ 8500 - 23000MOQ: 1 Set
Warranty
12months
brand name
HST
place of origin
Shandong, China
customized support
OEM
power
2.2KW
Protection Class
IP55
Voltage
380 V
warranty
1YEAR
Product name
Hydraulic universal test machine
Application
Tensile, comprssion, bending test
Power supply
380V, 50HZ, 3P or customized
Sturcture
4 columns and 2 screws
Standard
ASTM , ISO, EN, GB, etc
Certificate
CE, ISO
Clamping method
Hydraulic clamp
Protection way
Overload, overcurrent, protection net, etc
Max.piston stroke
250mm
100kN 300kN 500kN 600kN 1000kN 2000kN load cell servo hydraulic utm universal testing machine tester price WAW-B WAW-E
Product Description
Hydraulic Universal Testing Machine is suitable for tension, compression, bending, shearing, peeling, tearing and other tests by adding different test fixture for metal and non-metal materials. It is widely used in inspection department, engineering area, laboratories, universities and institutes for material properties research and quality control.
| Model | WEW-300D | WEW-600D | WEW-1000D | WEW-2000D |
| Structure | 4 columns and 2 screws | |||
| Control way | loading process manual control,computer automatic data dealing | |||
| Max.load (kN) | 300kN | 600kN | 1000kN | 2000kN |
| Load accuracy | ≤±1% | |||
| Load range | 2%-100%FS | |||
| Load resolution | 1/300000 | |||
|
Deformation Measurement Range |
2%~100%FS | |||
| Deformation accuracy | ≤±1% | |||
|
Displacement resolution (mm) |
0.01 | |||
| Displacement error | ≤±0.5% | |||
| Max.piston stroke(mm) | 250 | |||
| Max piston moving speed | 0-90mm/min Manual adjustment | |||
| Crosshead lifting speed | 200mm/min | |||
| Max. tension test space |
750mm (can customize) |
650mm (can customize) |
650mm (can customize) |
850mm (can customize) |
| Max.Compression Test Space |
600mm (can customize) |
500mm (can customize) |
500mm (can customize) |
650mm (can customize) |
| Column clearance(mm) | 420 | 475 | 525 | |
| Clamping method | Hydraulic clamp | |||
|
Round specimen clamping range (mm) |
Φ10-Φ20,Φ20-Φ32, (Φ4-Φ10 Optional ) | Φ13-Φ26,Φ26-Φ40, (Φ6-Φ13 , Φ40-Φ50 Optional ) | Φ13-Φ26,Φ26-Φ40, (Φ6-Φ13 , Φ40-Φ50 Optional ) | Φ12-Φ30mm, Φ30-Φ50mm, Φ50-Φ70mm |
|
Flat specimen clamping range (mm) |
0-15 (15-30 Optional) | 0-15 (15-30 Optional) | 0-15 (15-30 Optional) | 0-35 mm |
|
Flat specimen clamping width(mm) |
80 | |||
| Compression plate size (mm) | φ160 | |||
| Bending roller distance(mm) | 450 | |||
| Width of bending rollers (mm) | 120 | |||
| Power supply | 3-phase,AC380V, 50Hz(can be customized) | |||
