Home > Instruments & Meters > Test Instrument > Test Machine > HST-WAW-F SERIES 2000KN 3000KN Single Test Space Servo- Hydraulic Universal Testing Machine Servo Control Strength Tester

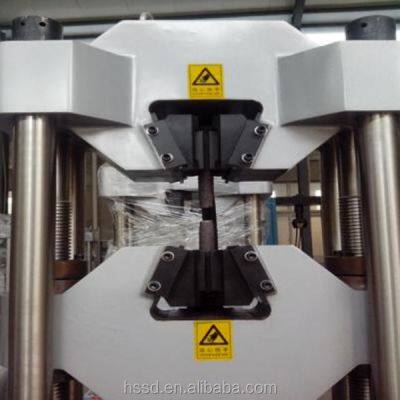

HST-WAW-F SERIES 2000KN 3000KN Single Test Space Servo- Hydraulic Universal Testing Machine Servo Control Strength Tester
US$ 75000 - 80000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Testing Machine
Warranty:
12months
Accuracy:
≤± 0.5%
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HST-WAW-F SERIES 300KN 600KN Single Test Space Servo- Hydraulic Universal Testing Machine Servo Control Strength TesterUS$ 12900 - 15900MOQ: 1 Set -
Factory Direct Customized Chain Steel Strand Tensile Test Hydraulic Tensile Testing MachineUS$ 193491.94 - 200020.98MOQ: 1 Set
-
HST Manufacturing Universal Tensile Strength Tester / Universal Testing Machine PriceUS$ 131210.63 - 138327.49MOQ: 1 Set
-
WAW Electro-hydraulic Servo Universal Testing Machine 3000KN 4000KN Hydraulic Universal Testing Machine UTMUS$ 8500 - 23000MOQ: 1 Set
-
Hydraulic Universal Testing Machine, Standard Jaws for Tensile, Compressing, and Bending TesterUS$ 7500 - 18000MOQ: 1 Set
Warranty
12months
Accuracy
≤± 0.5%
brand name
HST
place of origin
Shandong, China
Application
Universal Testing, Auto Testing, Plastic Testing, Textile Testing, Paper Testing, Strength Testing, Tensile Testing, Compression Testing, Impact Testing, Tensile, comprssion, bending test
customized support
OEM, ODM
power
/
Protection Class
IP65
Voltage
380 V
warranty
1 Year
Product name
Single Test Space Servo- Hydraulic Universal Testing Machine
Power supply
380V, 50HZ, 3P or customized
Standard
ASTM , ISO, EN, GB, etc
Certificate
CE, ISO
Clamping method
Hydraulic clamp
Protection way
Overload, overcurrent, protection net, etc
Max.piston stroke
250mm
HST-WAW-F SERIES 2000-3000KN Single Test Space Servo-Hydraulic Universal Testing Machine
Products Description
Application:
WAWSeries Computer-Controlled Servo-hydraulic Universal Testing Machine is suitable to test various metallic &
non-metallic materials for tension, compression, bending and shearing testing.
non-metallic materials for tension, compression, bending and shearing testing.
Types of specimens and materials:
1. Metals-(wire,rod, tube, strip, plate, strip) ;
2. Fasteners (tensile, proof, single and double shear) ;
3. Construction materials
(reinforcement bar, wire, mesh, folding, compression of concrete and components).,etc.
(reinforcement bar, wire, mesh, folding, compression of concrete and components).,etc.
Applied Standards:
Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221. Strain measurement meets or exceeds the following
standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
standards: ASTM E83, ISO 9513, BS 3846 and EN 10002-4.
Model |
WAW-2000F /WAW-2000J |
WAW-3000F /WAW-3000J |
|
Max Load(KN) |
2000 |
3000 |
|
Load Accuracy |
class 0.5 ,ISO7500 |
||
Testing Load Accuracy |
≤± 0.5% |
||
Load Measuing Range |
1％～100％ FS |
||
Load Resolution |
1/500000 of FS |
||
Accuracy of stress rate control |
± 0.5% |
||
Test speed accuracy |
≤± 0.5% of Indicating Value |
||
Displacement Accuracy |
≤± 0.5% of Indicating Value |
||
Displacement Eesolution |
0.0025 |
||
Clamping method |
hydraulic Automatic Clamp with wedge grip(F SERIES) hydraulic Automatic Clamp with Side action Grip (J SERIES )
|
||
Max. Tension Test Space(mm) |
830 |
850 |
|
Distance between Column(mm) |
810 |
940 |
|
Actuator Stroke(mm) |
750 |
650 |
|
Round Insert(mm/min) |
φ15-φ40
φ40-φ70
|
φ15-φ30
φ30-φ50 φ50-φ80
|
|
Flat Insert (mm) |
0-40;40-70 |
0-40;40-80 |
|
Compression platens |
φ160 |
||
Power Supply |
3-phase,AC380V, 50Hz (Can Be Customized) |
||
