105 Degree Constant Wattage Heating Cables Heat Resistance Cable
US$ 1.5 - 5
MOQ: 10 Meters
Key Specifications
Get Latest Price
Insulation Material:
FEP
Conductor Material:
Copper, Copper
Jacket:
FEP
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High-Temperature Constant Temperature Heating Cable for Hot PipesUS$ 1.5 - 5MOQ: 10 Meters -
220v Two Core Parallel Constant Wattage Heating Cable Electric Heating CableUS$ 1.5 - 5MOQ: 10 Meters
-
Double-conducting Parallel Constant-voltage Heating Cable Underfloor Heat Trace Cable With FEP MaterialUS$ 1.5 - 5MOQ: 10 Meters
-
230 Constant Power Heating Cables for Gutters 30wm Constant Power Heating CableUS$ 2.11MOQ: 100 Meters
-
Parallel Constant Wattage Heating Cable for Oil Antifreeze Heating Cable Coil at Constant Power 30w230vUS$ 2 - 5MOQ: 10 Meters
Jacket
FEP
Number of Conductors
Customers' Demand
Model Number
Customized
Brand Name
Youyu
Place of Origin
Anhui, China
Rated Voltage
230V
Bending radius
38mm
Min. Installation Temp.
-20℃
Output
50w/m
Max tolerance temperature
205℃
Max use length
270m
Product Description
Constant Wattage Heating Cable is divided into parallel type and series type, Parallel constant wattage heating cable is connected by multiple heating nodes in parallel across the entire length. It can be shared to use according to actual length, but at least reserve one heating node. Series type is suitable for the case where the circuit length exceeds the upper limit of the parallel constant wattage cable.

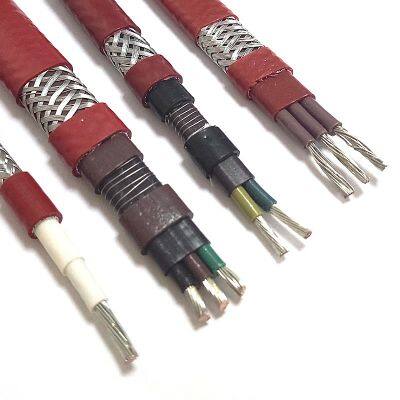

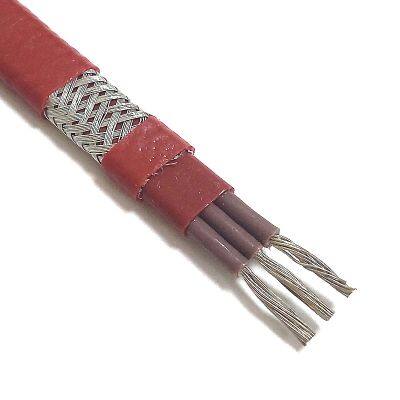

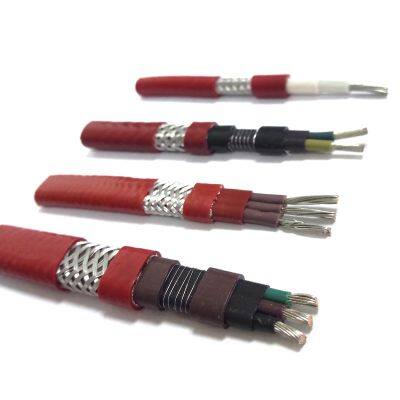

Two paralleled stranded copper wire as the bus wires with insulation layer FEP, then wrap the nickel-chromium alloy as the heating wire connect with bus wires at regular intervals, form the parallel resistance. Finally covered with insulation jacket FEP. When the bus wires power on, each parallel resistance begin to heat, thus form a continuous heating cable.
Technical Data Sheet of Two-core Parallel Type Constant Wattage Heating Cable (220V) |
||||||||||
Two-core Parallel Type |
Rated
Voltage
(V)
|
Rated
Power
(w/m)
|
Max Application
Length(m)
|
Max Maintain Temperatue of Fluid (℃) |
Max Tolerance Temperature(℃) |
|||||
RDY2Q-J3-10 |
220 |
10 |
200 |
150 |
205 |
|||||
RDY2Q-J3-20 |
220 |
20 |
120 |
140 |
205 |
|||||
RDY2Q-J3-30 |
220 |
30 |
100 |
125 |
205 |
|||||
RDY2Q-J3-40 |
220 |
40 |
100 |
100 |
205 |
|||||
Technical Data Sheet of Two-core Parallel Type Constant Wattage Heating Cable (380V) |
||||||||||
Two-core Parallel Type |
Rated
Voltage
(V)
|
Rated
Power
(w/m)
|
Max Application
Length(m)
|
Max Maintain Temperatue of Fluid (℃) |
Max Tolerance Temperature(℃) |
|||||
RDY2Q-J3-20-380 |
380 |
20 |
300 |
130 |
205 |
|||||
RDY2Q-J3-30-380 |
380 |
30 |
230 |
125 |
205 |
|||||
RDY2Q-J3-40-380 |
380 |
40 |
185 |
100 |
205 |
|||||
Technical Data Sheet of Three-core Parallel Type Constant Wattage Heating Cable (380V) |
||||||||||
Three-core Parallel Type |
Rated
Voltage
(V)
|
Rated
Power
(w/m)
|
Max Application
Length(m)
|
Max Maintain Temperatue of Fluid (℃) |
Max Tolerance Temperature(℃) |
|||||
RDY3Q-J3-20 |
380 |
20 |
390 |
150 |
205 |
|||||
RDY3Q-J3-30 |
380 |
30 |
320 |
140 |
205 |
|||||
RDY3Q-J3-40 |
380 |
40 |
300 |
130 |
205 |
|||||
RDY3Q-J3-50 |
380 |
50 |
250 |
120 |
205 |
|||||
Technical Data Sheet of Two-core Parallel Type Constant Wattage Heating Cable (220/380V) |
||||||||||
Two-core Parallel Type |
Rated
Voltage
(V)
|
Rated
Power
(w/m)
|
Max Application
Length(m)
|
Max Maintain Temperatue of Fluid (℃) |
Max Tolerance Temperature(℃) |
|||||
RDY2Q-J4-40 |
220/380 |
40 |
120 |
200 |
260 |
|||||
RDY2Q-J4-50 |
220/380 |
50 |
110 |
180 |
260 |
|||||
RDY2Q-J4-60 |
220/380 |
60 |
100 |
160 |
260 |
|||||
Parallel constant wattage heating cable can be used for pipe and equipment freeze protection and process temperature maintenance requiring high power output or high temperature exposure. This type provide an economical alternative to self regulating heating cable but requires more skill for installation and more advanced control and monitor system. Constant wattage heating cables can provide process temperature maintenance up to 150°C and can withstand exposure temperatures up to 205°C with power on.
