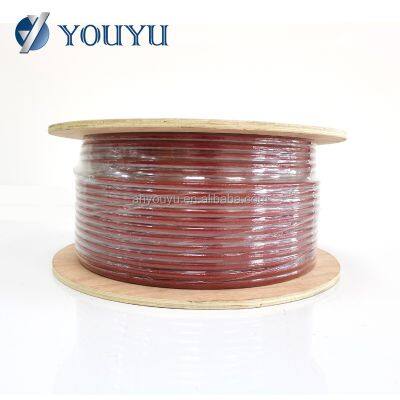

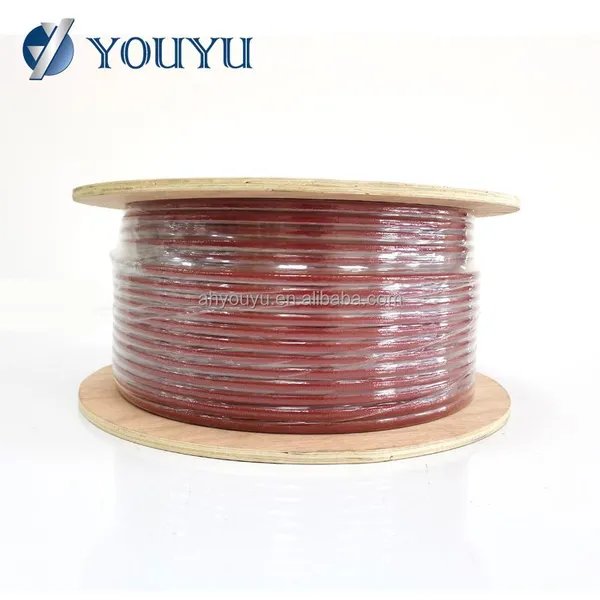

Two-Core Parallel Heating Cable Constant Wattage XLPE Insulation Copper-Infused PFA Jacket 220V for Instrument Cable Assemblies
US$ 2 - 5
MOQ: 10 Meters
Key Specifications
Get Latest Price
Insulation Material:
XLPE
Conductor Material:
Copper
Jacket:
PFA
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Wholesale Products Self Regulating Heating Cable Insulated Constant Golden Supplier Power Heating CableUS$ 3.51MOQ: 100 Meters -
Constant Wattage Heating Cable Price China Constant Temperature Heating Cable for Underground Heating CableUS$ 2.5 - 3.5MOQ: 10 Meters
-
Copper Conductor Heating Cable XLPE FEP Insulated Heating Tracing Cable for Pipe Insulation Constant Temperature PlugUS$ 2 - 5MOQ: 10 Meters
-
Constant Wattage Heating Cable Twin Conductor Water Pipe Electric Heated Floor CableUS$ 2 - 5MOQ: 10 Meters
-
High Temperature 150 Degree Pipelines Heating Cable With Copper Conductor & FEP Insulation Constant Wattage Heat CableUS$ 2 - 3.5MOQ: 1 Meter
Insulation Material
XLPE
Conductor Material
Copper
Jacket
PFA
Number of Conductors
2
Model Number
/
Brand Name
youyu
Place of Origin
Anhui, China
Length
1 m
Product name
Two-core Parallel Constant Wattage heating cable for
Core
two
Voltage
220v
Packing
carton
Product Description
Constant Wattage Heating Cable is divided into parallel type and series type, Parallel constant wattage heating cable is connected by multiple heating nodes in parallel across the entire length. It can be shared to use according to actual length, but at least reserve one heating node. Series type is suitable for the case where the circuit length exceeds the upper limit of the parallel constant wattage cable.

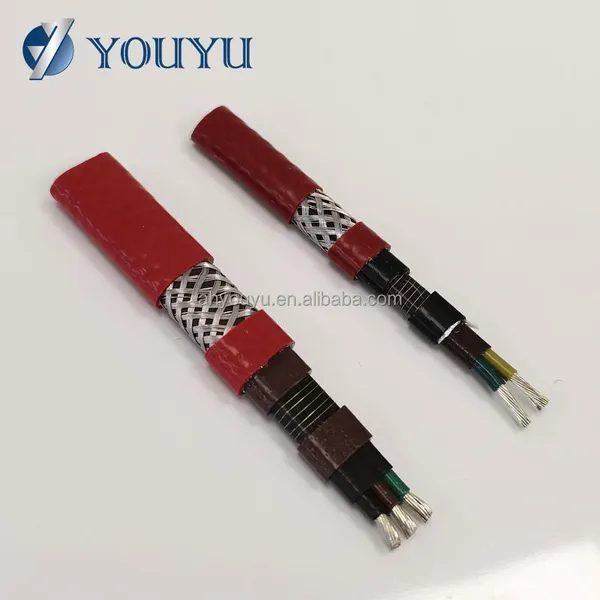

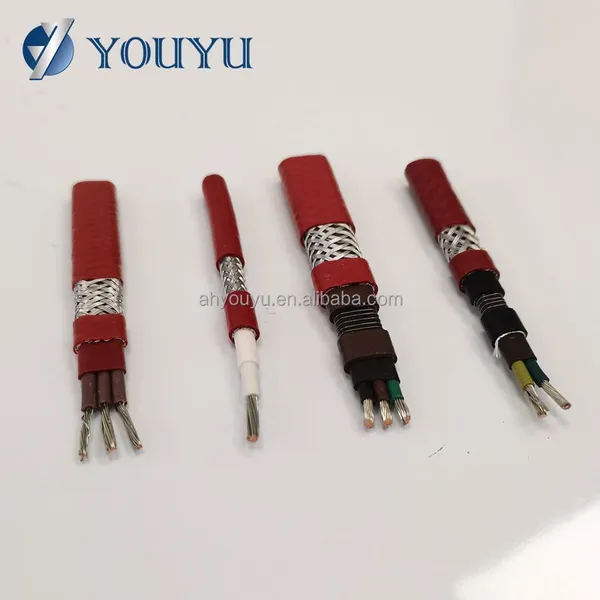

Two paralleled stranded copper wire as the bus wires with insulation layer FEP, then wrap the nickel-chromium alloy as the heating wire connect with bus wires at regular intervals, form the parallel resistance. Finally covered with insulation jacket FEP. When the bus wires power on, each parallel resistance begin to heat, thus form a continuous heating cable.
Technical Data Sheet of Two-core Parallel Type Constant Wattage Heating Cable (220V) |
||||||||||
Two-core Parallel Type |
Rated
Voltage
(V)
|
Rated
Power
(w/m)
|
Max Application
Length(m)
|
Max Maintain Temperatue of Fluid (℃) |
Max Tolerance Temperature(℃) |
|||||
RDY2Q-J3-10 |
220 |
10 |
200 |
150 |
205 |
|||||
RDY2Q-J3-20 |
220 |
20 |
120 |
140 |
205 |
|||||
RDY2Q-J3-30 |
220 |
30 |
100 |
125 |
205 |
|||||
RDY2Q-J3-40 |
220 |
40 |
100 |
100 |
205 |
|||||
Technical Data Sheet of Two-core Parallel Type Constant Wattage Heating Cable (380V) |
||||||||||
Two-core Parallel Type |
Rated
Voltage
(V)
|
Rated
Power
(w/m)
|
Max Application
Length(m)
|
Max Maintain Temperatue of Fluid (℃) |
Max Tolerance Temperature(℃) |
|||||
RDY2Q-J3-20-380 |
380 |
20 |
300 |
130 |
205 |
|||||
RDY2Q-J3-30-380 |
380 |
30 |
230 |
125 |
205 |
|||||
RDY2Q-J3-40-380 |
380 |
40 |
185 |
100 |
205 |
|||||
Technical Data Sheet of Three-core Parallel Type Constant Wattage Heating Cable (380V) |
||||||||||
Three-core Parallel Type |
Rated
Voltage
(V)
|
Rated
Power
(w/m)
|
Max Application
Length(m)
|
Max Maintain Temperatue of Fluid (℃) |
Max Tolerance Temperature(℃) |
|||||
RDY3Q-J3-20 |
380 |
20 |
390 |
150 |
205 |
|||||
RDY3Q-J3-30 |
380 |
30 |
320 |
140 |
205 |
|||||
RDY3Q-J3-40 |
380 |
40 |
300 |
130 |
205 |
|||||
RDY3Q-J3-50 |
380 |
50 |
250 |
120 |
205 |
|||||
Technical Data Sheet of Two-core Parallel Type Constant Wattage Heating Cable (220/380V) |
||||||||||
Two-core Parallel Type |
Rated
Voltage
(V)
|
Rated
Power
(w/m)
|
Max Application
Length(m)
|
Max Maintain Temperatue of Fluid (℃) |
Max Tolerance Temperature(℃) |
|||||
RDY2Q-J4-40 |
220/380 |
40 |
120 |
200 |
260 |
|||||
RDY2Q-J4-50 |
220/380 |
50 |
110 |
180 |
260 |
|||||
RDY2Q-J4-60 |
220/380 |
60 |
100 |
160 |
260 |
|||||
Parallel constant wattage heating cable can be used for pipe and equipment freeze protection and process temperature maintenance requiring high power output or high temperature exposure. This type provide an economical alternative to self regulating heating cable but requires more skill for installation and more advanced control and monitor system. Constant wattage heating cables can provide process temperature maintenance up to 150°C and can withstand exposure temperatures up to 205°C with power on.
