Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Quality 230v 30w 40w Pipe Heating 12 Volt Heating Cable Electric Under Floor Heating System

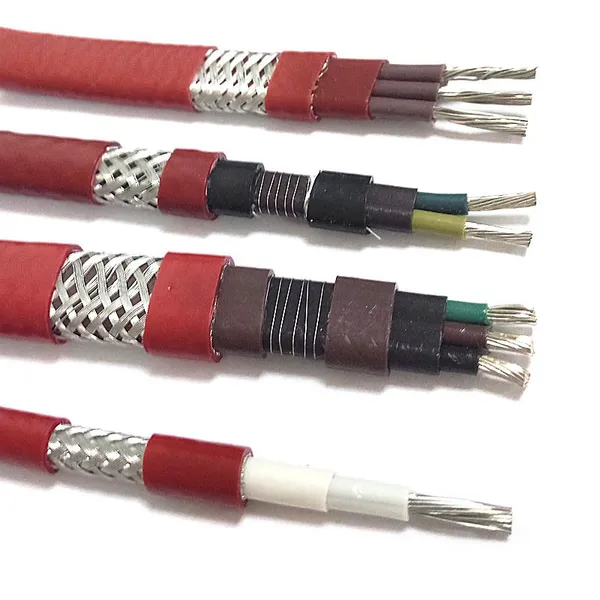

Quality 230v 30w 40w Pipe Heating 12 Volt Heating Cable Electric Under Floor Heating System
US$ 2 - 5
MOQ: 10 Meters
Key Specifications
Get Latest Price
Insulation Material:
FEP
Conductor Material:
Copper, Copper
Jacket:
FEP
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Quality 220v 17w Pipe Heating Heating Cable Electric Under Floor Heating SystemUS$ 0.5 - 1.5MOQ: 10 Meters -
Two-Core Parallel Heating Cable Constant Wattage XLPE Insulation Copper-Infused PFA Jacket 220V for Instrument Cable AssembliesUS$ 2 - 5MOQ: 10 Meters
-
China Wholesale Products Self Regulating Heating Cable Insulated Constant Golden Supplier Power Heating CableUS$ 3.51MOQ: 100 Meters
-
Constant Wattage Heating Cable Price China Constant Temperature Heating Cable for Underground Heating CableUS$ 2.5 - 3.5MOQ: 10 Meters
-
Copper Conductor Heating Cable XLPE FEP Insulated Heating Tracing Cable for Pipe Insulation Constant Temperature PlugUS$ 2 - 5MOQ: 10 Meters
Jacket
FEP
Number of Conductors
Customers' Demand
Model Number
Customized
Brand Name
Youyu
Place of Origin
Anhui, China
Number of Conductor
2~3
Rated Voltage
230V
Bending radius
38mm
Conductor insulation
FEP
Outer Insulation
FEP
Min. Installation Temp.
-20℃
Material
FEP
Output
20~60w/ft(28w/m)+-10%
Quality 230v 30w 40w pipe heating 12 volt heating cable electric under floor heating system
Product Description
Summary
The output power of constant wattage heating cable is not subject to the change of environment, Its use length is proportional to the power,
It needs to be equipped with explosion-proof temperature controller and control box to control the medium temperature, It is widely used in oil, chemical, metallurgical and other industries for anti freezing, anticoagulant, anticoagulant, heat preservation and heating,
The constant wattage heating cable is divided into parallel type and series type, Parallel constant wattage heating cable is connected by multiple heating nodes in parallel across the entire length. It can be shared to use according to actual length, but at least reserve one heating node. Series type is suitable for the case where the circuit length exceeds the upper limit of the parallel constant wattage cable.
|
Product Model
|
Rated
Voltage
(V)
|
Rated
Power
(w/m)
|
Max Application
Length(m)
|
Max Maintain Temperature
(℃)
|
Max Tolerance Temperature(℃)
J3(4)
|
|
RDY2-J3(4)-10
|
220V
|
10
|
200
|
150
|
205(260)
|
|
RDY2-J3(4)-15
|
220V
|
15
|
180
|
150
|
205(260)
|
|
RDY2-J3(4)-20
|
220V
|
20
|
150
|
120
|
205(260)
|
|
RDY2-J3(4)-25
|
220V
|
25
|
150
|
120
|
205(260)
|
|
RDY2-J3(4)-30
|
220V
|
30
|
150
|
90
|
205(260)
|
|
RDY2-J3(4)-35
|
220V
|
35
|
130
|
90
|
205(260)
|
|
RDY2-J3(4)-40
|
220V
|
40
|
120
|
65
|
205(260)
|
|
RDY2-J3(4)-45
|
220V
|
45
|
120
|
65
|
205(260)
|
|
RDY2-J3(4)-50
|
220V
|
50
|
120
|
65
|
205(260)
|
Company Information
Client & Certificate
FAQ
| 1. How much electricity is consumed per hour? |
| Consider an average room size of 100m2 . The heated area is approximately 80%, or 80m2 . |
| In the case of the 150W mats, when the heater is ON, the hourly consumption is 1500W times 80m2. |
| When the recommended thermostat is turned on, take 100m2 as an example. The room is filled with heat about 20min~30min, which is between 450W and 750W. Of course, the specific cost depends on your electricity consumption and electricity unit price. |
| 2. Do I use insulation materials? |
| We recommend that you use insulation materials. On the one hand, it is for your safety considerations, on the other hand, because it can lock the heat, the preheating will be faster, and the power consumption will be reduced. |
| 3. Is it safe to use in a humid place? |
| Yes, our products are of high quality and have a grounding wire. |
| 4. How long is the warranty time? |
| 25 years for heating cable & heating mat. |
| 2 years for for constant wattage/self-regulating heating cable and thermostats. |
| 5. Can I crop it? |
| Yes, you can crop the grid |
| 6. What is the thickness of the cable? |
| The cable is 3.5mm thick. |
