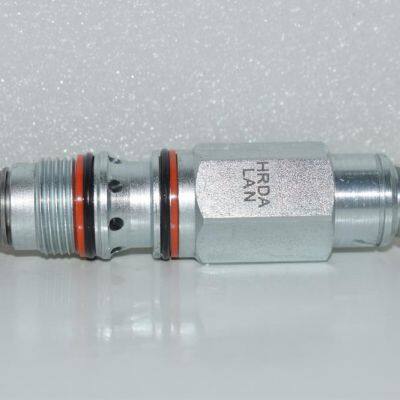

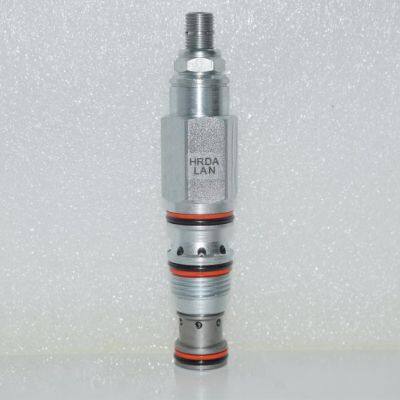

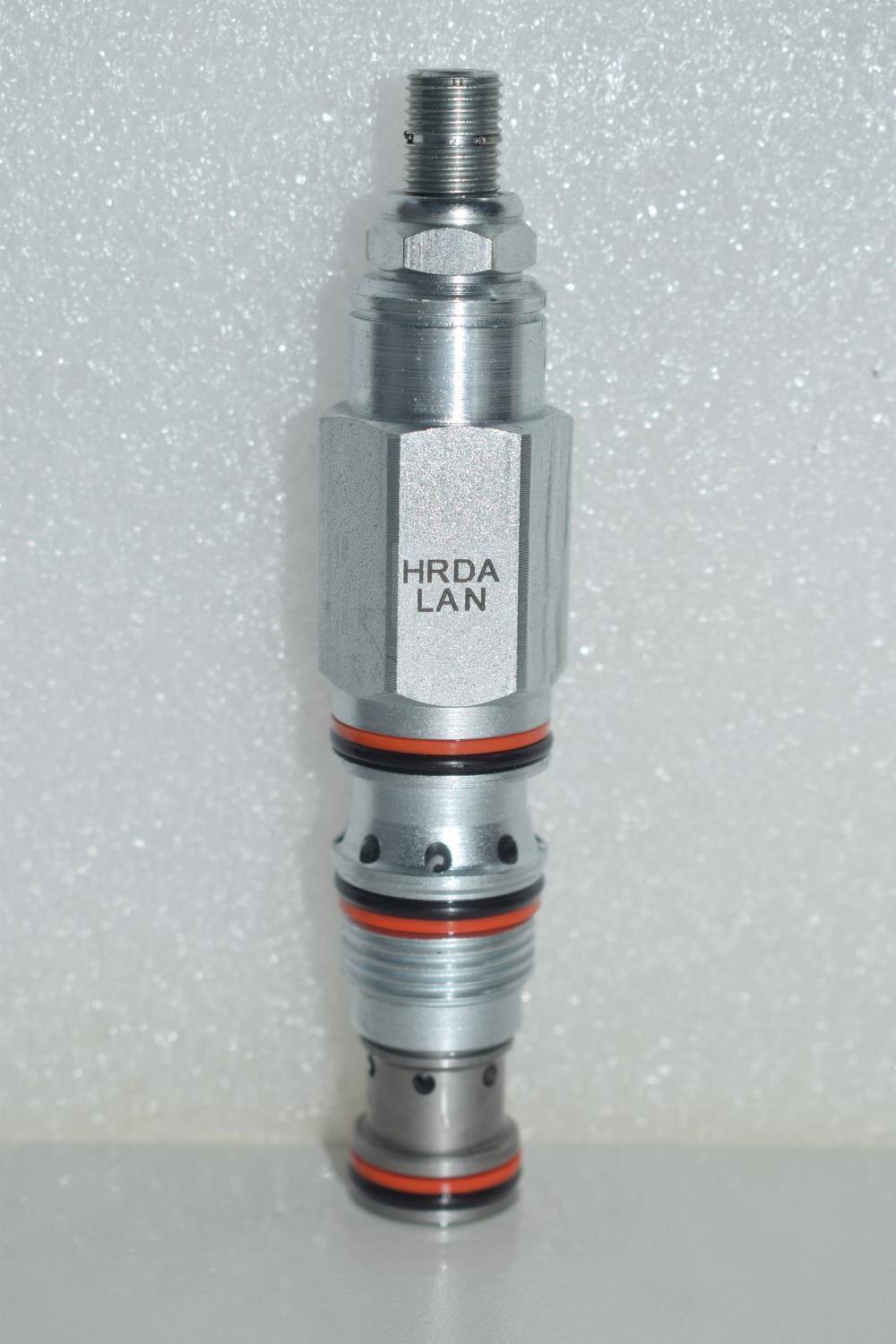

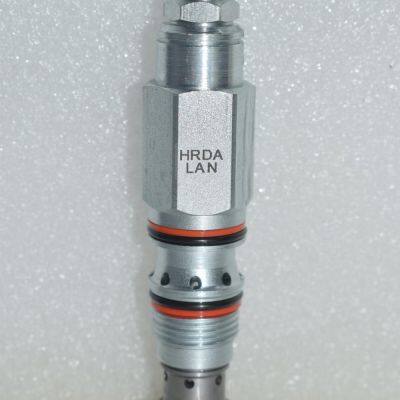

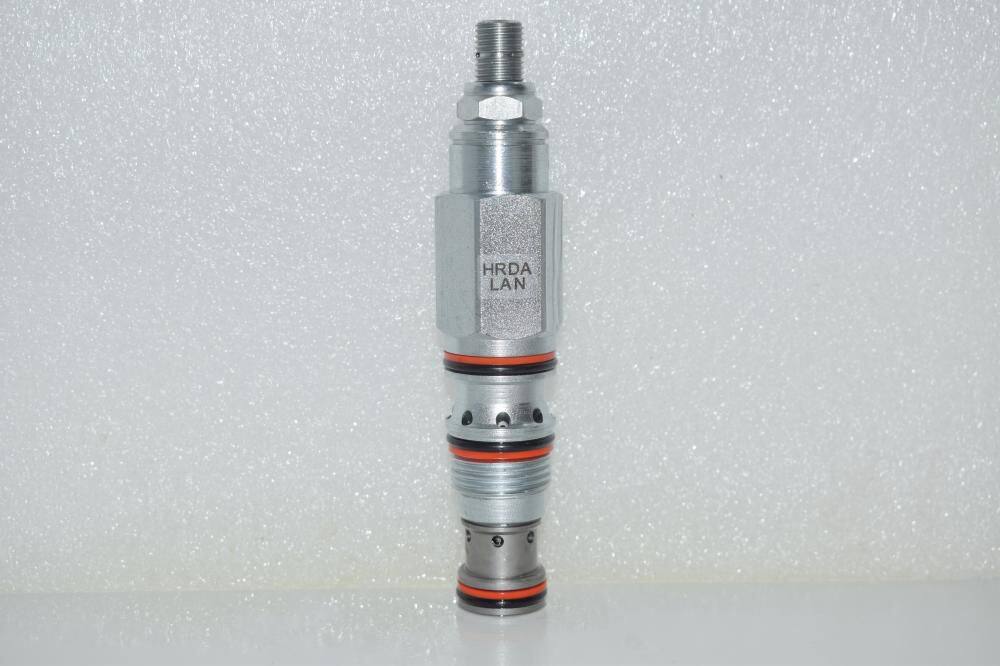

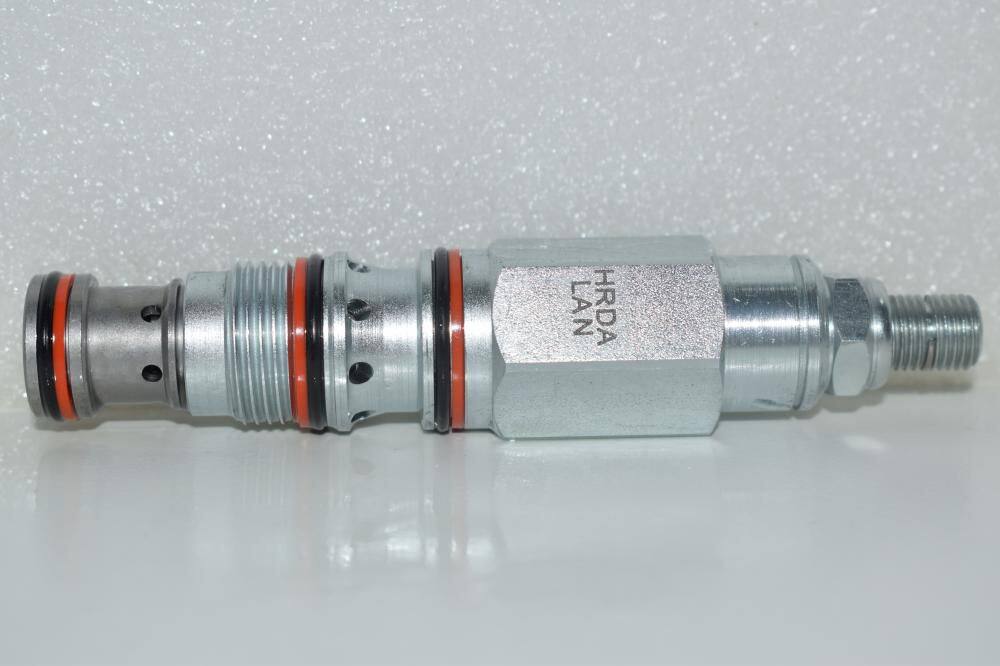

HRDALAN Composite Relief Valve
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Socket:
T-11A
Current-carrying capacity:
40 L/min
Maximum operating pressure:
350 bar
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
90 days
Related Products
-
PRDBLWN Direct-Operated Pressure Relief/Overflow Control ValveUS$ 69 - 72MOQ: 1 Piece -
RDFALCN Direct-Acting Relief Valve High-Efficiency Pressure Control ValveUS$ 26.5 - 77.8MOQ: 1 Piece
-
RPGCLEN Relief Valve Balance Spool Valve Normally Closed Pressure RegulatingUS$ 87.6 - 95MOQ: 1 Piece
-
PPDBOAN Pressure Control Valve,Overflow-Type Pressure Relief ValveUS$ 79 - 82MOQ: 1 Piece
-
PBFBLAN Pressure Reducing Valve Pbfb Domestic Pressure Control Valve Pilot-OperatedUS$ 28 - 30MOQ: 1 Piece
Socket
T-11A
Current-carrying capacity
40 L/min
Maximum operating pressure
350 bar
Feture
Composite
Model weight
0.20kg
Valve mounting torque
41-47 Nm
Sealing materials
Optional
Coating
Optional
Surface coating
Optional
Sealing material
Nitrile
Origin
China
Contact me to get more information.

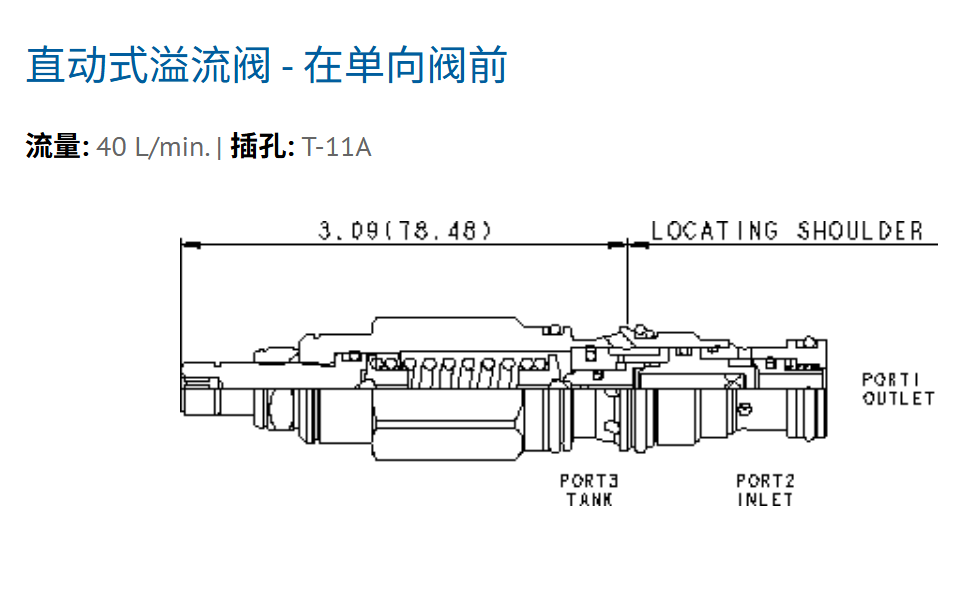

The overflow valve in front of the check valve is a composite valve. This valve incorporates a direct-acting relief valve in addition to the check valve function. When the pressure at the inlet (port 2) reaches the valve's set value, the valve begins to relieve to the tank (port 3), throttling to limit the pressure rise. The check valve flow is from the inlet (port 2) to the system port (port 1). Such valves provide smooth regulation, low noise, almost zero leakage, strong resistance to oil contamination, clogging prevention, and fast response.
