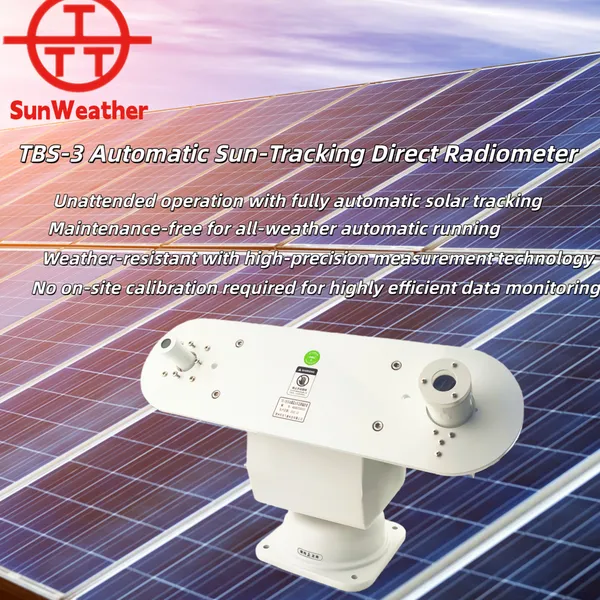

Help CenterTBS-3 Fully Automatic Photovoltaic Solar Tracking System With Solar Tracker With Direct Solar Radiation for Photovoltaic Power Station
Related Products
-
TRM-ZS7 Road Meteorological Monitoring System With Traffic Surface State Sensor, With Traffic Visibility SensorNegotiableMOQ: 1 Set -
PC-8 Weather Station Outdoor Dust Monitoring Integrated With Multi-Element Sensors With Noise SensorNegotiableMOQ: 1 Unit
-
TBQ-2 Solar Pyranometer Radiation Sensor RS485 PV Monitoring Detector Total Solar Irradiance Sensor Pyranometer for Photovoltaics PlantsNegotiableMOQ: 1 Piece
-
TBK11 All Sky Imager All-Sky Camera Whole Sky ImagerNegotiableMOQ: 1 Unit
-
TBS-4 Fully Automatic Solar Photometer Automatic Sun Photometer Photovoltaic Luminosity Monitoring SystemNegotiableMOQ: 1 Unit
Brand NameSun Weather
Place of OriginChina
Model NumberTBS-3

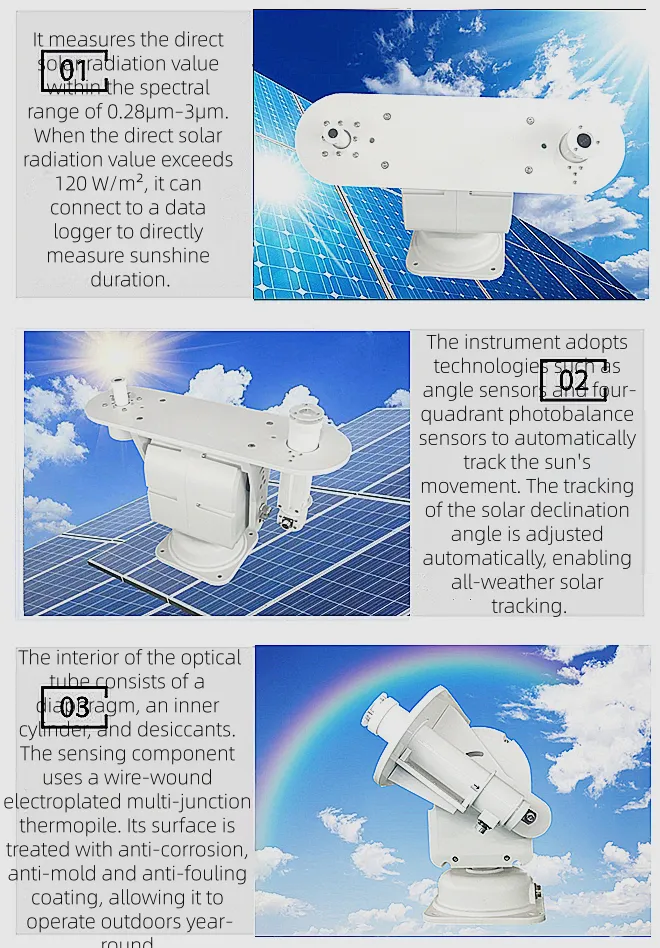

1.Product Description
The fully automatic tracking pyranometer adds a time tracking function based on the original fully automatic tracking device (TBS-YG5). A GPS module is added to the equipment, which can quickly locate the longitude, latitude and time information of the installation location, making installation and debugging more convenient. Fully automatic tracking device is used with the controller. The controller calculates the current position of the sun based on the longitude, latitude and time measured by the GPS, and then controls the rotation of the fully automatic tracking device to reach the position of the sun. Due to installation errors, terrain and other factors, there will be some deviations in tracking based on time. At this time, the high-precision four-quadrant sensor performs accurate tracking, making the tracking error of the fully automatic tracking device less than 0.1°.
2.Technical Specifications
Measurement | Range | |
Tracking Device | Pitch Angle | 0~120° |
Horizontal Angle | 0~360° | |
Tracking Accuracy | <0.1° | |
Radiometer Light Tube | Sensitivity | 7~14 μV/W*m2 |
Response Time | ≤15 seconds（99%） | |
Internal Resistance | About 90Ω | |
Stability | ±2% | |
Temperature Characteristics | ±2%（-30℃ ~ +60℃） | |
Nonlinear | ±2% | |
Test Range | 0~2000W/m2 | |
Spectral Range | 280~3000nm |

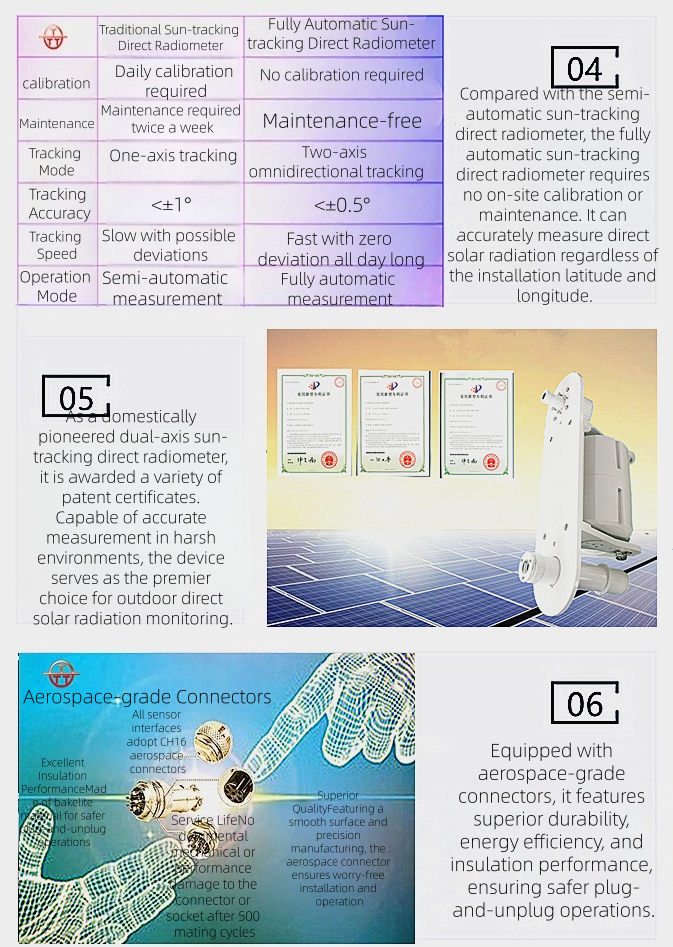

3.Features
1)The fully automatic tracking pyranometer adds a time tracking function to the original fully automatic tracking device.
2)A GPS module is added to the equipment, which can quickly locate the longitude, latitude and time information of the installation location, making installation and debugging more convenient.
3)Fully automatic tracking device is used with the controller. The controller calculates the current position of the sun based on the longitude, latitude and time measured by the GPS, and then controls the rotation of the fully automatic tracking device to reach the position of the sun.
4)Due to installation errors, terrain and other factors, there will be some deviations in tracking based on time. At this time, the high-precision four-quadrant sensor performs precise tracking, making the tracking error of the fully automatic tracking device less than 0.1°.

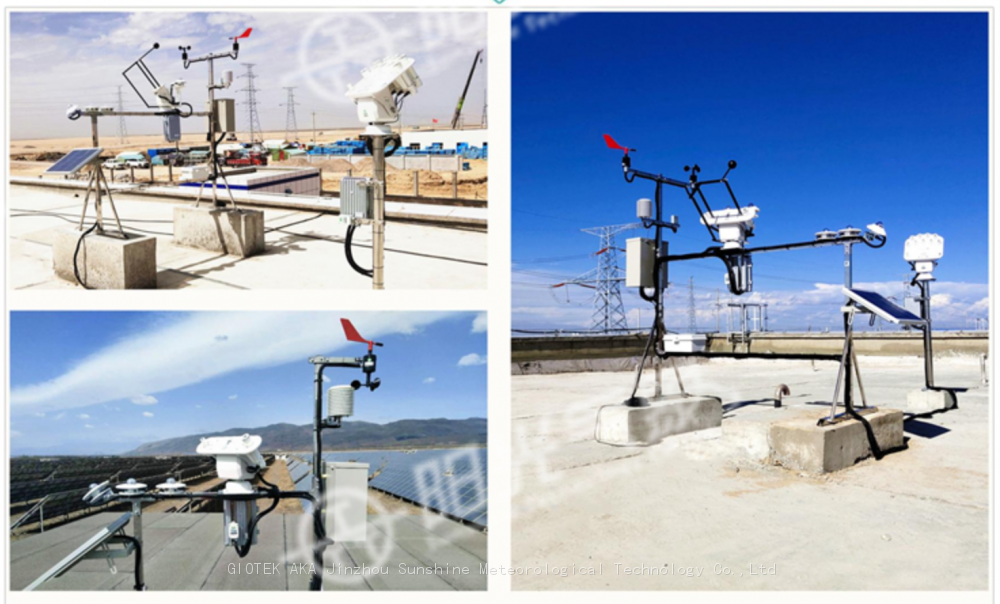

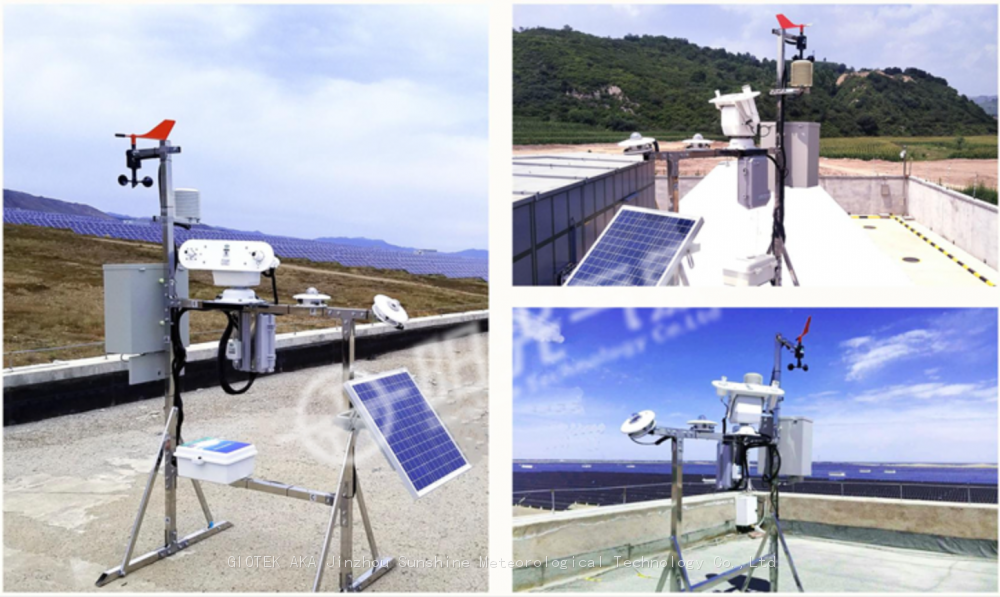

4.Application Cases
For more information, please contact me.
