Product Name: DYC-Q Series Low Vacuum Electromagnetic Differential Pressure Inflating Valve
Category: Vacuum Inflating Valve

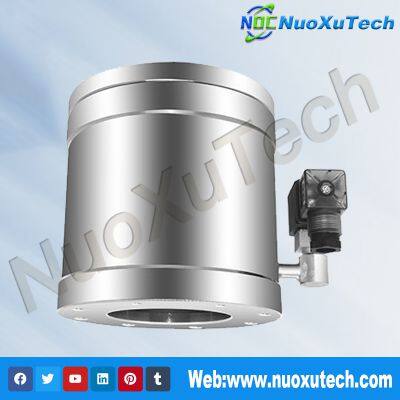

The DYC-Q Series Low Vacuum Electromagnetic Inflating Valve is a specialized vacuum valve designed for installation on the intake port of mechanical vacuum pumps. It uses atmospheric pressure to automatically close the valve core and seal the vacuum system when the pump stops, preventing oil backflow and protecting the system.

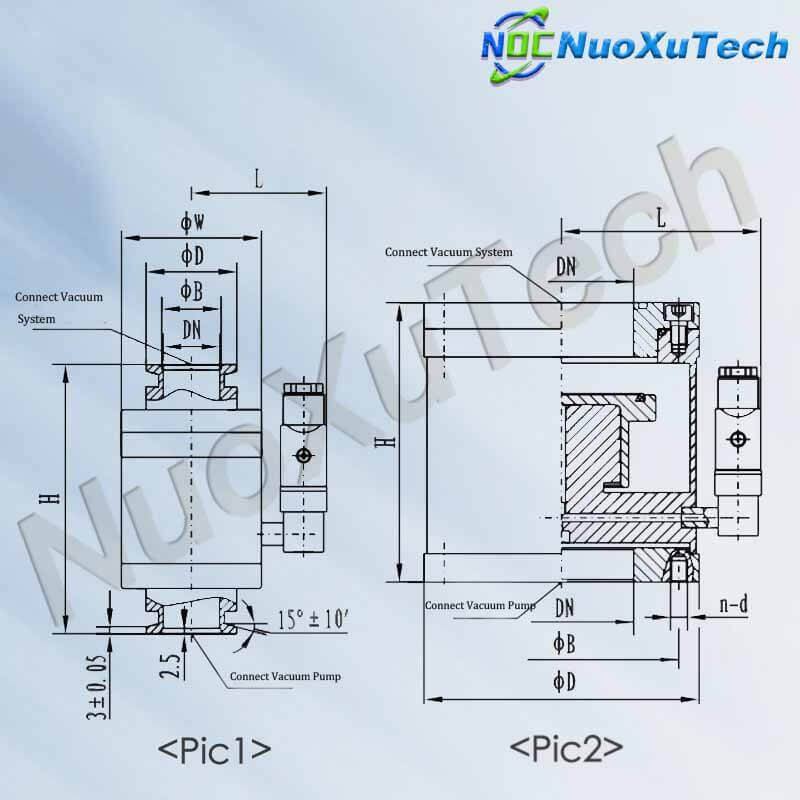

Pic 1 (KF) connection and dimensions (GB4982)
| model | diameter（DN） | ΦW | ΦD | ΦB | H | L | Flange standard |
| DYC-Q16/KF | 16 | 60 | 30 | 17.2 | 115 | 72 | GB4982 |
| DYC-Q25/KF | 25 | 70 | 40 | 26.2 | 130 | 76 | |
| DYC-Q32/KF | 32 | 90 | 55 | 41.2 | 150 | 85 | |
| DYC-Q40/KF | 40 | 100 | 55 | 41.2 | 160 | 90 | |
| DYC-Q50/KF | 50 | 110 | 75 | 52.2 | 195 | 95 | / |
Note: DYC-Q32/KF flange adopts KF40 standard
Pic 2 Connection and Dimensions (GB/T6070)
| model | diameter (DN） | ΦD | ΦB | H | L | n-d | Flange standard |
| DYC-Q16 | 16 | 60 | 45 | 75 | 72 | 4-M6 | GB/T6070 |
| DYC-Q25 | 25 | 70 | 55 | 90 | 76 | ||
| DYC-Q32 | 32 | 90 | 70 | 100 | 85 | 4-M8 | |
| DYC-Q40 | 40 | 100 | 80 | 110 | 90 | ||
| DYC-Q50 | 50 | 110 | 90 | 123 | 95 | ||
| DYC-Q65 | 65 | 125 | 105 | 147 | 102 | ||
| DYC-Q80 | 80 | 145 | 125 | 145 | 112 | ||
| DYC-Q100 | 100 | 165 | 145 | 140 | 121 | 8-M8 | |
| DYC-Q125 | 125 | 200 | 175 | 185 | 138 | 8-M10 | |
| DYC-Q150 | 150 | 220 | 195 | 211 | 145 | ||
| DYC-Q160 | 160 | 225 | 200 | 211 | 150 | ||
| DYC-Q200 | 200 | 285 | 260 | 240 | 180 | 12-M10 | |
| DYC-Q250 | 250 | 335 | 310 | 290 | 204 |
| Applicable range (Pa) | (Pa)10^5~10^-2 |
| Gas leakage rate (Pa.L/S) | ≤6.5×10^-2 |
| Medium temperature (℃) | -25~+40 |
| On/Off Time S | ≤3 |
| Rated voltage | 220/50;DC24V |
Automatic Operation: Synchronized with the mechanical vacuum pump to open and close automatically.
Pressure Differential Actuation: Utilizes atmospheric pressure to close the valve core when the pump stops.
Vacuum Preservation: Seals the vacuum system immediately upon pump shutdown to maintain vacuum levels.
Backflow Prevention: Prevents oil backflow into the vacuum system by introducing atmospheric air into the pump.
Reliable Performance: Ensures the protection of the vacuum system and supports efficient pump restarts.
Mechanical vacuum pumps
Industrial vacuum systems
Laboratory vacuum systems
Semiconductor manufacturing
Any application requiring reliable vacuum maintenance and backflow prevention
Operation: Electromagnetic differential pressure actuation
Sealing Type: High-performance sealing for vacuum environments
Working Medium: Air and non-corrosive gases
Installation: Suitable for installation on the intake port of mechanical vacuum pumps
Enhanced Reliability: Ensures consistent and reliable vacuum maintenance.
Automatic Response: Quick response to pump shutdowns and power interruptions.
Compact Design: Easy to integrate with existing vacuum systems.
Durable Construction: Built for long-lasting performance in demanding environments.
For more information about the DYC-Q Low Vacuum Electromagnetic Inflating Valve, contact NuoXuTech
