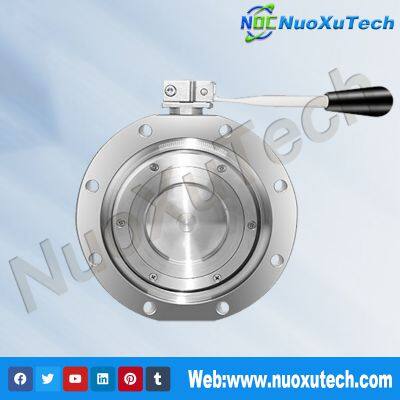

Product Name: GI-A Series High Vacuum Butterfly Valve
Category: Vacuum Butterfly Valve
The GI-A Series High Vacuum Butterfly Valve is designed to regulate the flow of gases within vacuum pipelines. Featuring a unique clamping structure, the valve plate ensures a tight seal by compressing the sealing ring, with an additional fine adjustment function for the primary seal. The valve is equipped with a locking mechanism for secure opening and closing operations. It is suitable for use with air and non-corrosive gases.

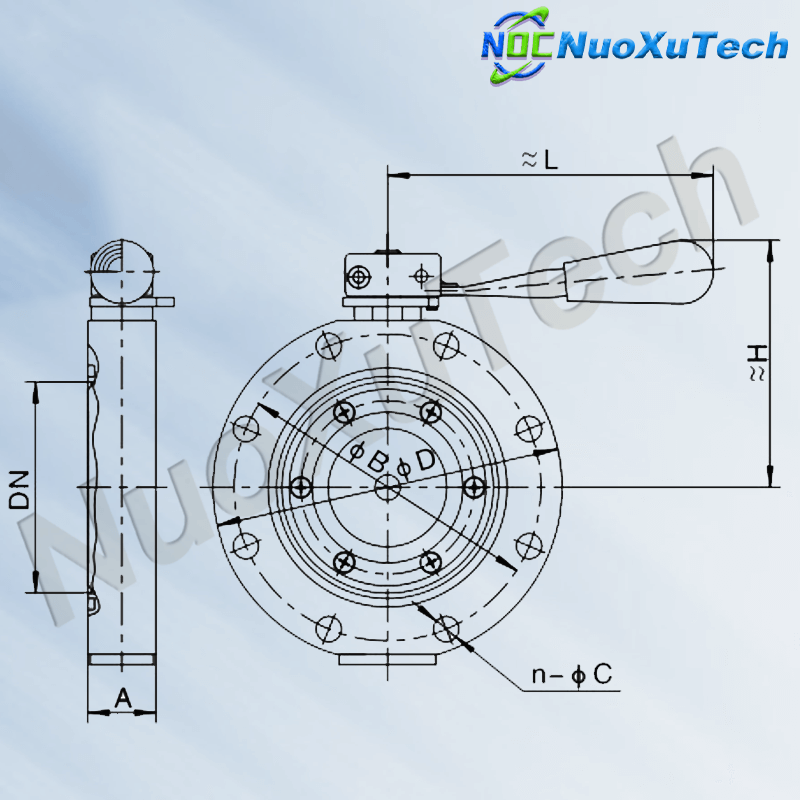

Dimension Drawing
Connection and Dimensions
| model | diameter（DN） | ΦD | ΦB | H | A | L | n-ΦC |
| GI-50A | 50 | 110 | 90 | 84 | 26 | 130 | 4-Φ9 |
| GI-63A | 63 | 130 | 110 | 94 | 32 | ||
| GI-80A | 80 | 145 | 125 | 107 | 154 | 8-Φ9 | |
| GI-100A | 100 | 165 | 145 | 117 | |||
| GI-125A | 125 | 200 | 175 | 136 | 35 | 197 | 8-Φ11 |
| GI-150A | 150 | 225 | 200 | 150 | |||
| GI-200A | 200 | 285 | 260 | 188 | 45 | 242 | 12-Φ11 |
| GI-250A | 250 | 335 | 310 | 220 | 50 | 330 | |
| GI-300A | 300 | 425 | 395 | 263 | 55 | 12-Φ14 | |
| GI-400A | 400 | 510 | 480 | 320 | 60 | 435 | 16-Φ14 |
| Applicable range (Pa) | 105~1.3×10-6 |
| Valve leakage rate (Pa.L/S) | ≤1.3×10-7 |
| Medium temperature (°C) | -25~+80 (the sealing material is NBR) -30~+150 (the sealing material is fluororubber) |
High Vacuum Performance: Specifically designed for high vacuum applications, ensuring reliable control of gas flow.
Clamping Structure: The valve plate employs a clamping mechanism that compresses the sealing ring for a robust seal.
Fine Adjustment Sealing: Provides fine-tuning capabilities for the primary seal to enhance performance.
Locking Function: Ensures secure opening and closing of the valve, preventing accidental changes in valve position.
Versatile Medium Compatibility: Suitable for air and non-corrosive gases, making it ideal for a variety of vacuum system applications.
High vacuum systems in industrial settings
Semiconductor manufacturing
Pharmaceutical processing
Chemical research and development
General laboratory vacuum applications
Operation: Manual or automated control with locking mechanism
Sealing Type: Clamping structure with fine adjustment
Working Medium: Air and non-corrosive gases
Secure and Reliable: Locking function ensures the valve remains in the desired position.
Precise Sealing: Fine adjustment capabilities provide a robust and adaptable seal.
Durable Design: Constructed for long-term use in high vacuum environments.
Flexible Applications: Suitable for a wide range of industrial and research vacuum systems.
For more information about the GI-A Series High Vacuum Butterfly Valve, contact NuoXuTech
