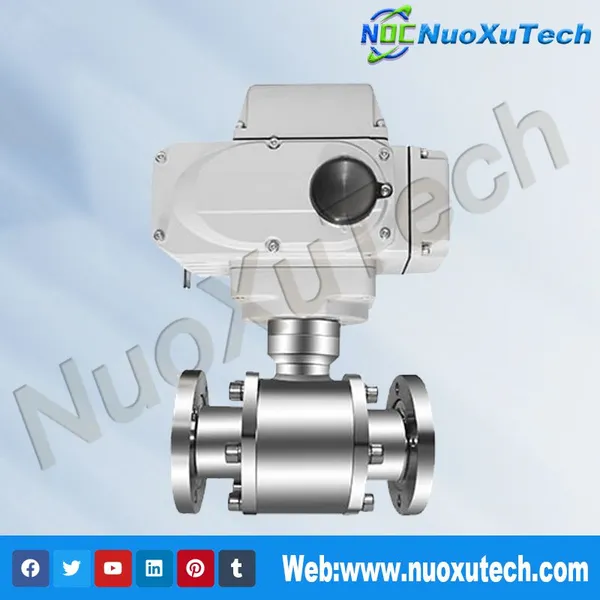

GUD-A Series Electric Vacuum Pressure Ball Valve

Product Name: GUD-A Series Electric Vacuum Pressure Ball Valve
Category: High Vacuum Ball Valve

The GUD-A Series Electric Vacuum Pressure Ball Valve by NuoXuTech is an essential component for controlling media flow in vacuum systems. With its electric rotary and electronic adjustment valve drive mechanism, it ensures reliable performance in both vacuum and low-pressure conditions. This versatile valve can be installed in any orientation and handles both acidic and alkaline gases or liquids, making it ideal for industrial applications, chemical processing, and research laboratories. Enhance your system’s efficiency and reliability with the GUD-A Series’ precise electric control and durable construction.

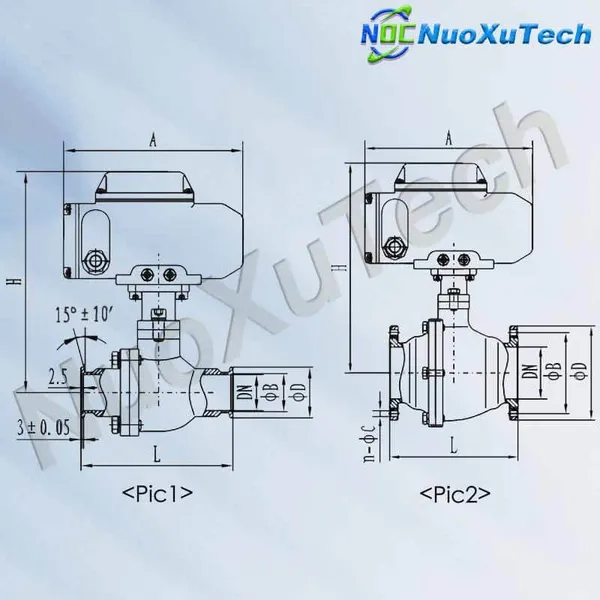

Dimension Drawing

GUD

Pic 1 Outline and quick release flange connection dimensions

modle diameter（DN） φD φB H L A Flange standard
GUD-10A/KF 10 30 12.2 220 92 166 GB/T4982-2003
GUD-16A/KF 16 30 17.2 220 100 166
GUD-25A/KF 25 40 26.2 225 114 166
GUD-32A/KF 32 55 41.2 235 140 166 /
GUD-40A/KF 40 55 41.2 240 165 196 GB/T4982-2003
GUD-50A/KF 50 75 52.2 250 175 196 /

Pic 2 Appearance and dimension of looper flange connection

modle diameter（DN） φD φB H L A n-φpc Flange standard
GUD-10A 10 55 40 220 92 166 4-φ6.5 GB/T6070-1995
GUD-16A 16 60 45 220 100 166 4-φ6.5
GUD-20A 20 65 50 220 114 166 4-φ6.5
GUD-25A 25 70 55 225 114 166 4-φ6.5
GUD-32A 32 90 70 235 140 166 4-φ9
GUD-40A 40 100 80 240 165 196 4-φ9
GUD-50A 50 110 90 250 175 196 4-φ9
GUD-63A 63 130 110 310 186 196 4-φ9
GUD-80A 80 145 125 300 198 196 8-φ9
GUD-100A 100 165 145 355 220 255 8-φ9
GUD-125A 125 200 175 375 266 255 8-φ11
GUD-150A 150 225 200 400 296 255 8-φ11
GUD-200A 200 285 260 500 390 310 12-φ11
GUD-250A 250 335 310 560 470 355 12-φ11
GUD-300A 300 425 395 600 530 355 12-φ14



Specification
Applicable range (Pa) Quick release flange (KF) 2×10^5 ~1.3×10^-6 Loose flange 6×10^5 ~1.3×10^-6
Valve leakage rate (Pa.L/S) ≤1.3×10^-6
On/Off Time S DN≤32 20； DN≥40 30
Medium temperature (℃) Standard factory: -30~+150 Special designation: -30~+240
Flange GB4982；GB/T6070
Power supply voltage Standard factory: AC220V/50Hz
Special designation: AC380V; DC24V switch type 4-20mA DC regulation type: 1-5V DC regulation type
Signal feedback and explosion-proof Standard factory: with passive contact type
Special designation: adjustable type 4 20mA DC; adjustable type 1-5V DC


For more information about the GUD-A Series Electric Vacuum Pressure Ball Valve, contact NuoXuTech

WhatsApp: +86 13849062209
Our team is ready to provide you with professional service and support.
