Product Name: GID-A Electric High Vacuum Butterfly Valve
Category: Vacuum Butterfly Valve

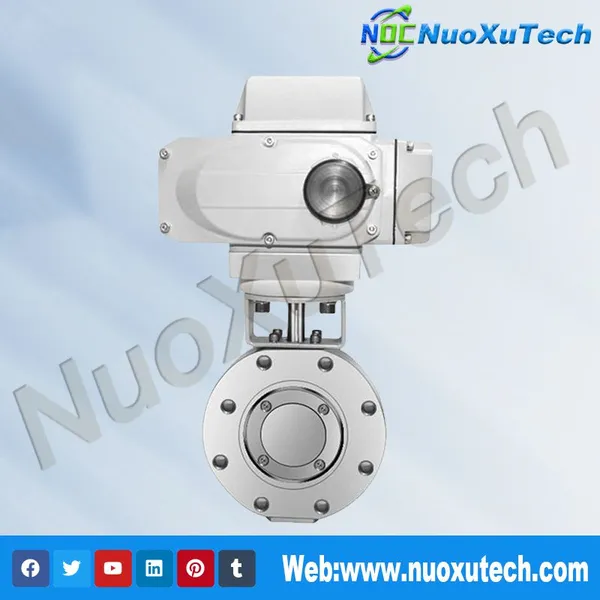

The GID-A Series Electric High Vacuum Butterfly Valve by NuoXuTech is designed for precise control of air and non-corrosive gases in vacuum systems. Featuring a rotary electric drive and electronic adjustment, this valve offers seamless operation through manual switches, computer interfaces, or external signals. Ideal for industrial vacuum systems, laboratory vacuum systems, and semiconductor manufacturing, it ensures reliable performance and enhanced sealing.

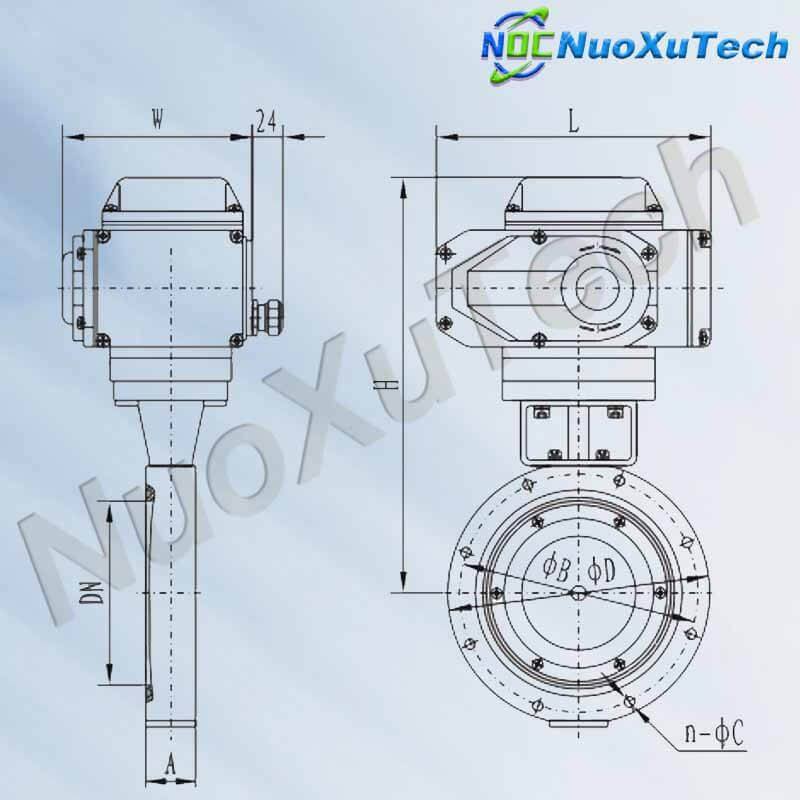

Dimension Drawing
Connection and Dimensions
| model | diameter (DN) | ΦD | ΦB | H | A | L | W | n-ΦC |
| GID-50A | 50 | 110 | 90 | 218 | 26 | 160 | 113 | 4-Φ9 |
| GID-63A | 63 | 130 | 110 | 229 | 32 | |||
| GID-80A | 80 | 145 | 125 | 272 | 196 | 121 | 8-Φ9 | |
| GID-100A | 100 | 165 | 145 | 282 | ||||
| GID-125A | 125 | 200 | 175 | 300 | 35 | 8-Φ12.5 | ||
| GID-150A | 150 | 225 | 200 | 369 | 255 | 159 | ||
| GID-200A | 200 | 285 | 260 | 399 | 45 | 12-Φ11 | ||
| GID-250A | 250 | 335 | 310 | 427 | 50 | |||
| GID-300A | 300 | 425 | 395 | 471 | 55 | 12-Φ14 | ||
| GID-400A | 400 | 510 | 480 | 549 | 60 | 310 | 211 | 16-Φ14 |
| GID-500A | 500 | 600 | 565 | 625 | 80 | 331 | 211 | 12-Φ18 |
| Applicable range (Pa) | 105 ~1.3×10-6 |
| Valve leakage rate (Pa.L/S) | ≤1.3×10-7 |
| On/Off Time S | DN≤63 20; 80≤DN≤200 30; DN≥250 48 |
| Medium temperature (°C) | -25~+80 (the sealing material is NBR) -30~+150 (the sealing material is fluororubber) |
| Flange standard | GB/T6070 |
| Rated voltage | Standard manufactured：AC220V/50Hz |
| Special designation: DC24V | |
| Control circuit | Standard manufactured：AC220V/50Hz switch type |
| Special designation: optional ①DC24V switch type ②4~20mA DC regulation type ③1~5V DC regulation type |
For more information about the GID-A Series Electric High Vacuum Butterfly Valve, contact NuoXuTech
