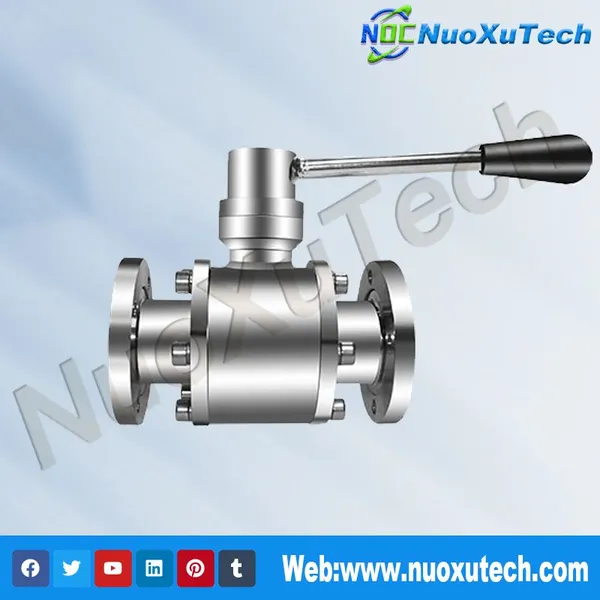

GU-A Series Manual Vacuum Pressure Ball Valve

Product Name: GU-A Series Manual Vacuum (Pressure) Ball Valve
Category: High Vacuum Ball Valve


The GU-A Series Manual Vacuum Pressure Ball Valve by NuoXuTech is an essential component for controlling media flow in vacuum systems. With its manual operation and spherical ball seal, it ensures reliable performance in both vacuum and low-pressure conditions. This versatile valve can be installed in any orientation and handles both acidic and alkaline gases or liquids, making it ideal for industrial applications, chemical processing, and research laboratories. Enhance your system’s efficiency and reliability with the GU-A Series’ precise manual control and durable construction.

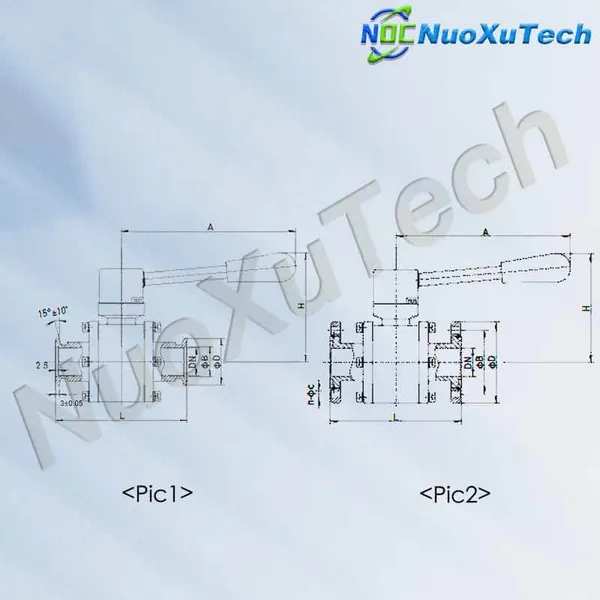

Dimension Drawing

（GU-A

（Pic 1) Outline and quick release flange connection dimensions

modle diameter（DN） φD φB H L A Flange standard
GU-10A/KF 10 30 12.2 95 92 125 GB/T4982-2003
GU-16A/KF 16 30 17.2 95 100 125 GB/T4982-2003
GU-25A/KF 25 40 26.2 105 114 140 GB/T4982-2003
GU-32A/KF 32 55 41.2 125 140 160 /
GU-40A/KF 40 55 41.2 130 160 160 GB/T4982-2003
GU-50A/KF 50 75 52.2 135 175 160 /

(Pic 2) Outline and size of looper flange connection

modle diameter（DN） φD φB H L A n-φc Flange standard
GU-10A 10 55 40 95 92 125 4-q)6.5 GB/T6070-1995
GU-16A 16 60 45 95 100 125 4-(p6.5
GU-20A 20 65 50 105 114 140 4-q)6.5
GU-25A 25 70 55 105 114 140 4-q)6.5
GU-32A 32 90 70 125 140 160 4-q)9
GU-40A 40 100 80 130 165 160 4-q)9
GU-50A 50 110 90 145 175 160 4-q)9
GU-63A 63 130 110 160 200 185 4-q)9
GU-80A 80 145 125 180 230 205 8-q)9
GU-100A 100 165 145 189 250 260 8-q)9
GU-125A 125 200 175 232 295 360 8-(p11
GU-150A 150 225 200 250 320 400 8-(p11
GU-200A 200 285 260 306 390 620 12-q)11



Specification
Applicable range (Pa) Quick release flange (KF) 2×10^5 ~1.3×10^-5 Loose flange 6×10^5 ~1.3×10^-5
Valve leakage rate (Pa.L/S) ≤1.3×10^-6
Medium temperature (℃) Standard factory: -30~+150 Special designation: -30~+240
