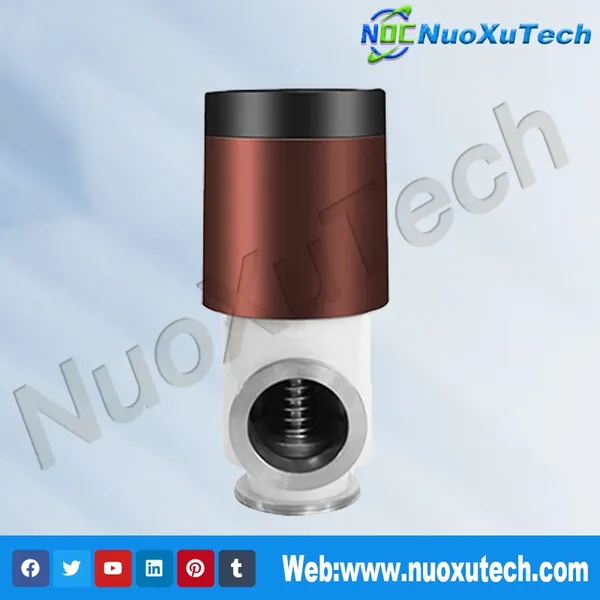

Product Name: DDC-JQ-B Series Electromagnetic Vacuum charging Valve
Category: Vacuum charging Valve
The DDC-JQ-B Series Electromagnetic Vacuum charging Valve is an essential component designed for installation on mechanical vacuum pumps. This valve is connected to the same power source as the pump, allowing synchronized control of the valve and pump operations. When the pump starts, the valve opens; when the pump stops or in the event of a power outage, the valve automatically closes, sealing the vacuum system. It also allows atmospheric air to enter the pump chamber through the intake port, preventing pump oil from flowing back and contaminating the vacuum system.

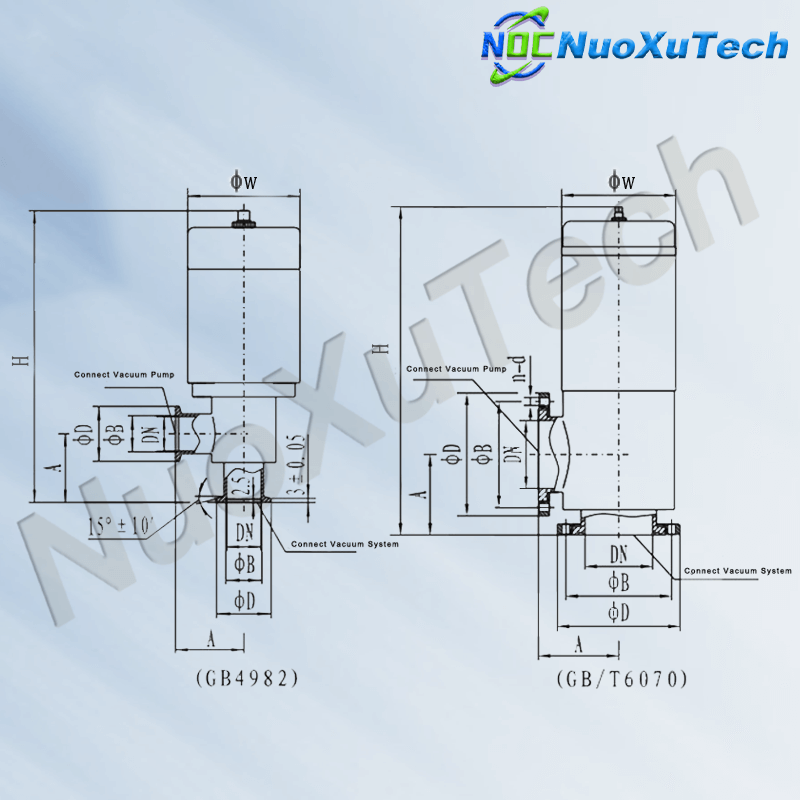

Connection and Dimensions
| model | diameter (DN) | ΦW | ΦD | ΦB | H | A | n-d | Flange standard |
| DDC-JQ16B/KF | 16 | 68 | 30 | 17.2 | 191 | 40 | / | GB4982 |
| DDC-JQ25B/KF | 25 | 82 | 40 | 26.2 | 216 | 50 | ||
| DDC-JQ32B/KF | 32 | 92 | 55 | 41.2 | 244 | 50 | ||
| DDC-JQ40B/KF | 40 | 110 | 55 | 41.2 | 275 | 65 | ||
| DDC-JQ50B/KF | 50 | 125 | 75 | 52.2 | 314 | 80 | / | |
| DDC-JQ50B | 50 | 125 | 110 | 90 | 314 | 80 | 4-Φ9 | GB/T6070 |
| DDC-JQ65B | 65 | 135 | 130 | 110 | 343 | 88 | 4-Φ9 | |
| DDC-JQ80B | 80 | 165 | 145 | 125 | 399 | 95 | 8-Φ9 | |
| DDC-JQ100B | 100 | 165 | 165 | 145 | 399 | 108 | 8-Φ9 | |
| DDC-JQ150 | 150 | 165 | 220 | 195 | 477 | 138 | 8-Φ11 |
Note: DDC-JQ100B matches piston vacuum pump model H-150
DDC-JQ32B/KF flange adopts KF40 standard
Specification| Applicable range (Pa) | 105~1×10-3 |
| Gas leakage rate (Pa.L/S) | (Pa.L/S) <6.7×10-4 |
| Valve”s roasting temperature(℃) | -25~+50 |
| Pressure difference when opening valve”s plates (MPa) | ≤65 |
| On/Off Time S | ≤3 |
| Rated voltage | 220/50 |
Electromagnetic Operation: The valve operates in sync with the vacuum pump, utilizing the same power source for seamless control.
Automatic Sealing: Automatically closes to seal the vacuum system when the pump stops or during power interruptions.
Prevents Contamination: Introduces atmospheric air through the pump intake to prevent oil backflow, protecting the vacuum system from contamination.
Medium Compatibility: Suitable for air and non-corrosive gases, making it versatile for various applications.
Mechanical vacuum pumps in industrial processes
Semiconductor manufacturing
Pharmaceutical production
Chemical research and processing
General laboratory vacuum applications
Operation: Electromagnetic control, synchronized with pump operation
Automatic Sealing: Closes to prevent backflow and contamination
Working Medium: Air and non-corrosive gases
Reliable Protection: Ensures the integrity and cleanliness of the vacuum system by preventing oil backflow.
Seamless Integration: Easily integrates with mechanical vacuum pumps, providing synchronized control and operation.
Durable Construction: Designed for long-term use in various industrial and research environments.
Versatile Application: Suitable for a wide range of applications requiring clean and efficient vacuum operations.
For more information about the DDC-JQ-B Electromagnetic Vacuum charging Valve, contact NuoXuTech
