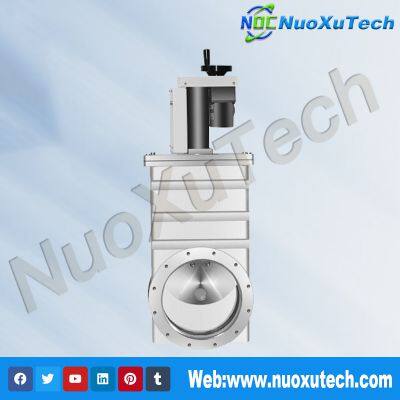

CCD Series Electric Ultra High Vacuum Gate Valve

Product Name: CCD Series Electric Ultra High Vacuum Gate Valve
Category: Ultra High Vacuum Gate Valve

The CCD Series Electric Ultra High Vacuum Gate Valve is meticulously engineered to handle the precise control of airflow in ultra-high vacuum systems. The valve operates using a screw-driven electric actuator, ensuring smooth and accurate axial movement of the sealing shaft (rod). This mechanism provides reliable and efficient operation, making it ideal for demanding ultra-high vacuum applications.



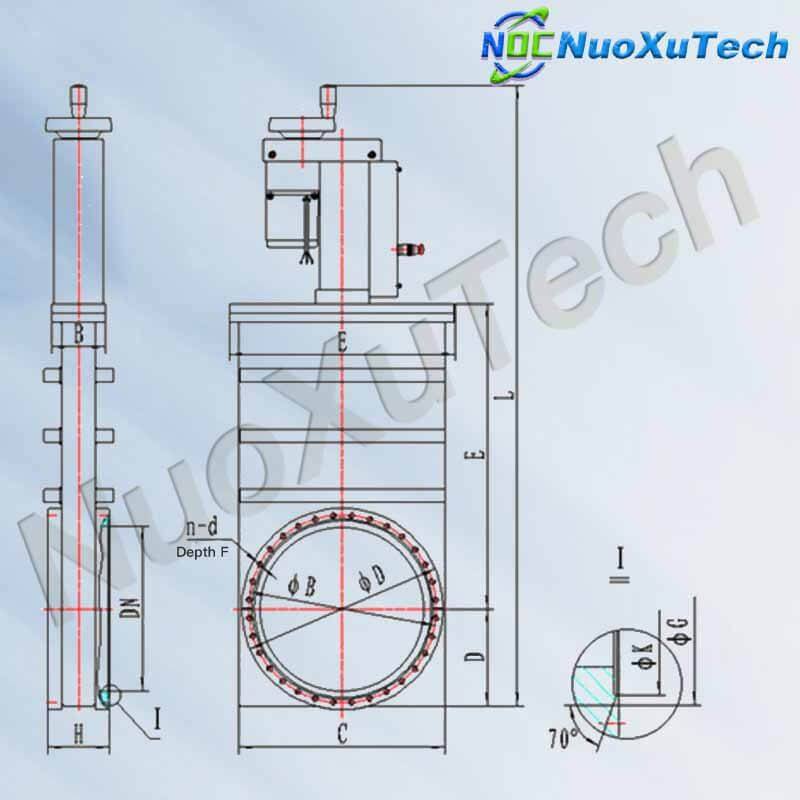

Outline Dimension

ModelDia(DN)ABCDEHLMNφN
CCD-80801667714061210605308410450
CCD-1001001869216072230705608610450
CCD-1501502349220796307786738611450
CCD-20020028092254121382807798912150
CCD-250250342100312148462928928912150
CCD-32032044910842521267013011969414050
CCD-40040053610851225681013013919414050

CCPic2 1 CC Series Manual Ultra High Vacuum Gate Valve



Pic 1 GB-LP Flange Connection Dimension

ModelCC-63CC-80CC-100CC-150CC-200CC-250CC-320CC-400
A666070787686112112
ΦB130145165225285335425512
ΦC110125145200260310395480
DN6380100150200250320400
ΦD6885105165208258328410
G2.42.42.42.43.63.64.84.8
n488812121216
dM8M8M8M10M10M10M12M12
F141211.51616151616
I.D6785106165206258325406
d3.553.553.553.555.35.377

Pic 2 ISO-F Flange Connection Dimension

ModelCC-63CC-80CC-100CC-150CC-200CC-250CC-320CC-400
A666070787686112112
ΦB130145165225285335425512
ΦC110125145200260310395480
DN6380100150200250320400
n488812121216
dM8M8M8M10M10M10M12M12
G3333334.54.5
ΦD10.283.2102.2153.2213.2261.2325400.2
F1010151515151616

Pic 3 CF Flange Connection Dimension

ModelCC-63CC-80CC-100CC-150CC-200CC-250CC-320
Dia(DN)6380100150200250320
A667070788092120
ΦB114130152202253305425
ΦC92.2110130.3181231.8284338.1
ΦK82.499120.6171.4222.1273.1326.4
ΦG7793115166217267320
n-d8-M816-M816-M820-M824-M832-M832-M10
F11131214141518
Specification
Applicable range (Pa)105～1.3×10-7
Gas leakage rate (Pa.L/S)DN≤200for≤1.3×10-7
DN≥250for≤6.7×10-7
Valve”s roasting temperature(℃)≤150(Except drive device)
Pressure difference when opening valve”s plates (MPa)≤2.7×103
Rated voltageStandard manufactured：AC220V/50Hz
Special designation：AC110V；DC24V；DC12V etc
On/Off Time S≤50
Key Features:

  1. Electric Operation: Screw-driven electric actuator for precise control.

  2. High Sealing Performance: Ensures excellent sealing for ultra-high vacuum environments.

  3. Smooth and Stable Action: Designed for smooth, stable operation and reliable performance.

  4. Compact Design: Small footprint for easy integration into various systems.

  5. High Flow Rate: Efficient management of gas flow in vacuum systems.

  6. Durable Construction: Long-lasting performance with high reliability.

  7. Aesthetic Design: Modern appearance suitable for advanced industrial settings.

Applications:

  • Ultra-high vacuum systems

  • Research laboratories

  • Semiconductor manufacturing

  • Industrial vacuum equipment

  • Any system requiring precise control of clean air and non-corrosive gases

Technical Specifications:

  • Operation: Electric screw-driven actuator

  • Movement: Axial movement of sealing shaft (rod)

  • Sealing Type: High-performance sealing for ultra-high vacuum

  • Working Medium: Clean air and non-corrosive gases

  • Installation: Suitable for various ultra high vacuum systems

Advantages:

  • Precise Control: Electric actuator ensures precise and reliable operation.

  • High Reliability: Robust construction and long service life.

  • Versatile Application: Ideal for a wide range of ultra-high vacuum applications.

  • Ease of Integration: Compact design for easy installation in existing systems.

For more information about the CCD Series Electric Ultra High Vacuum Gate Valve, contact NuoXuTech


WhatsApp: +86 13849062209
Our team is ready to provide you with professional service and support.
