I. Product Name & Core Positioning
HiTOP Solar CCTV Kit is a compact off-grid surveillance solution developed by BIGLUX specifically for flexible installation and rapid deployment scenarios. With a small size and lightweight design, it relies on an independent solar power supply, eliminating the need for fixed power grids and complex infrastructure. It can adapt to security monitoring needs in any location (such as remote sites, temporary events, and emergency areas) through multiple installation methods. Its core advantages lie in "multi-scenario adaptability, zero installation threshold, autonomous operation, and low maintenance cost," perfectly meeting short-term monitoring and flexible security needs and achieving a convenient "plug-and-play" experience.
II. Core Product Features
1. Efficient Solar Power Supply System
Solar Panel Configuration: Equipped with a 1×200W monocrystalline silicon bifacial solar panel. The bifacial light absorption design improves light absorption efficiency, enabling more sufficient energy conversion compared to traditional panels. It supports 90° rotation and 90° tilting bidirectional adjustment, which can flexibly adapt to different installation environments and sun trajectories, maximizing solar energy capture and ensuring continuous power supply.
Energy Storage & Endurance: Equipped with a lithium iron phosphate (LFP) battery with a capacity of 1280Wh, supporting DC 12V/24V/48V multi-voltage output. When fully charged, it can achieve 72 hours of continuous operation (under 14W load). Equipped with a 15A MPPT controller to optimize charging efficiency, it only takes 5.4 hours (estimated) to fully charge the battery. An optional AC backup input interface is available for auxiliary power supply on cloudy days or when the battery is low, ensuring uninterrupted monitoring.
2. Multi-Functional Integrated CCTV Box Design
Core Configuration: The CCTV box integrates energy storage, control, and heat dissipation functions. It has a built-in temperature-controlled fan to effectively regulate the internal temperature of the box and prevent equipment overheating. It is equipped with 2 side strobe lights to enhance security warning effects. Sufficient installation space is reserved to support the adaptation of most surveillance cameras, realizing integrated "power supply + installation."
Camera Installation: The box is equipped with multi-directional mounting plates-1 on each side and 2 at the bottom-supporting simultaneous installation of multiple cameras (usually 1 PTZ camera or 2-3 dome cameras). It adopts a tool-free quick-install design that simplifies the assembly process, reduces labor costs, and enables "plug-and-play" for cameras.
3. Multi-Scenario Adaptive Installation Methods

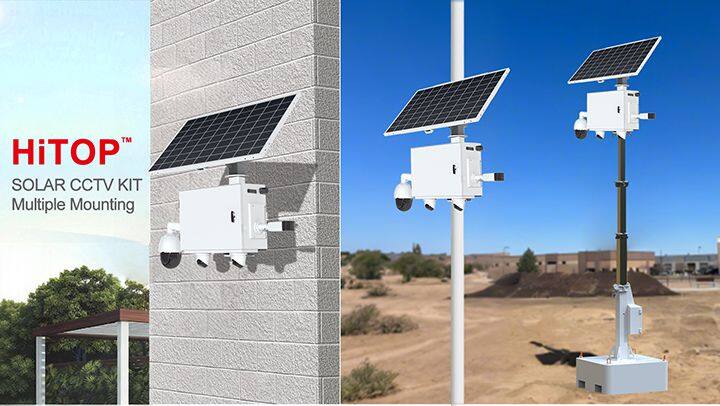

Installation Options: Three flexible installation modes are supported to adapt to different scenario needs:

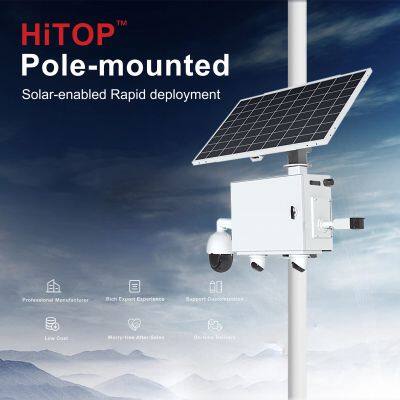

Pole Mounting: Compatible with poles with diameter ≤φ88-φ148mm, which can be fixed without additional modification.

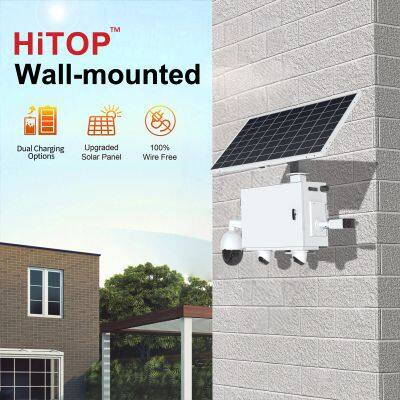

Wall Mounting: Requires M12 chemical anchors or expansion bolts and can be directly installed on walls.

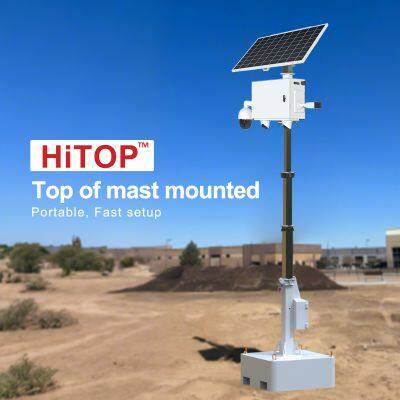

Top-of-Mast Mounting: Supports direct installation on the top of masts to expand the monitoring field of view.
Compact & Portable: The total weight of the whole kit is only 90KG. The box dimensions are 620×500×330mm, the solar panel dimensions are 1170×780×30mm, and the dimensions after combined installation are 1700×508×1246mm. It is easy to transport and carry, and on-site deployment can be completed quickly.
4. Stable & Durable Structure & Protection Design
Protection Performance: Core components are optimized for outdoor durability, with an operating temperature range of -20ºC~55ºC, which can withstand harsh outdoor conditions such as rain, dust, and humidity. The combination of a built-in temperature-controlled fan and sealed design ensures heat dissipation while preventing foreign objects from entering, extending the service life of the equipment.
Quality Assurance: Core electrical components such as solar panels, MPPT controllers, and batteries are from well-known brands and comply with international certification standards such as CE and FCC, ensuring the stability and reliability of product operation.
III. Detailed Product Specifications (Single Model)
IV. Core Application Scenarios
Temporary Surveillance Scenarios: Temporary construction sites, open-air parking lots, short-term exhibitions, and post-disaster emergency rescue sites-complete monitoring links can be set up quickly without complex installation.
Fixed Security Scenarios: Factory perimeter walls, logistics warehouse corners, remote mining sites, and border posts. Multiple installation methods adapt to different site conditions, replacing traditional wired monitoring.
Rental Service Scenarios: Suitable for equipment rental companies, it can be used as a lightweight monitoring rental asset to serve temporary engineering projects, temporary security, and other needs. Its low-maintenance feature reduces rental operation costs.
V. Packaging & Logistics Services
Packaging Standards:
Sample Shipment: Each kit is packed in a wooden crate, focusing on protecting vulnerable components such as solar panels and CCTV boxes to avoid collision damage during transportation.
Bulk Shipment: 30 units can be loaded into a 20GP container, and 60 units into a 40HQ container, maximizing transportation efficiency and reducing unit logistics costs.
Logistics Services:
North America: Provides "door-to-door (DDP)" full-process logistics service, covering customs clearance and delivery to the designated location.
Middle East/Europe/Others: Defaults to "factory-to-port (CIF)" service, compatible with customer-designated freight forwarders, supporting delivery to major global ports.
VI. Customization Services & After-Sales Guarantee
1. Customization Services
Appearance Customization: Supports product color and LOGO customization to match the customer's brand image or project-specific needs.
Configuration Upgrade: Optional Hikvision cameras and pre-installation services are available to realize integrated delivery of "kit + cameras," which can be used immediately after unboxing.
2. After-Sales Guarantee
Warranty Period: 2-year standard warranty, covering core components such as solar panels, batteries, MPPT controllers, and CCTV boxes. For product failures during the warranty period, free technical support and replacement parts are provided.
Response Mechanism: 7×24-hour online technical consultation is available; engineers can provide remote debugging guidance for complex issues. In case of emergencies, emergency replacement parts can be expedited to reduce downtime.
Production Lead Time: Standard samples are shipped within 2 weeks; production lead time for bulk orders (10 units and above) is approximately 1 month, which can be confirmed with the sales team.
Quality Assurance: Core electrical components have passed international certifications, and the product design complies with outdoor durability standards to ensure long-term stable operation.
VII. Enterprise Strength Endorsement
Experience & Qualifications: 10 years of R&D and manufacturing experience in mobile solar solutions, holding ISO9001 (Quality Management System) and CE (EU market access) certifications. Products comply with international standards.
Production Capacity & Projects: Monthly capacity of 200+ units, completing 500+ outdoor surveillance projects worldwide (covering North America, the Middle East, Europe, Africa, etc.), focusing on providing mobile energy products with high reliability and low maintenance costs.
Core Advantages: Integrates R&D, design, and production, supporting OEM/ODM services. It deeply cultivates the needs of flexible installation and rapid deployment scenarios and can provide customers with full-chain support from "R&D to production to logistics to after-sales," making it a trustworthy partner for mobile solar solutions.
