I. Product Name & Core Positioning

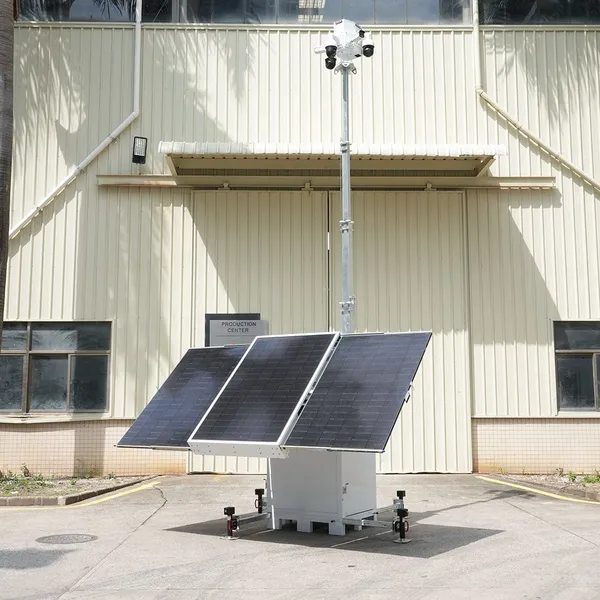

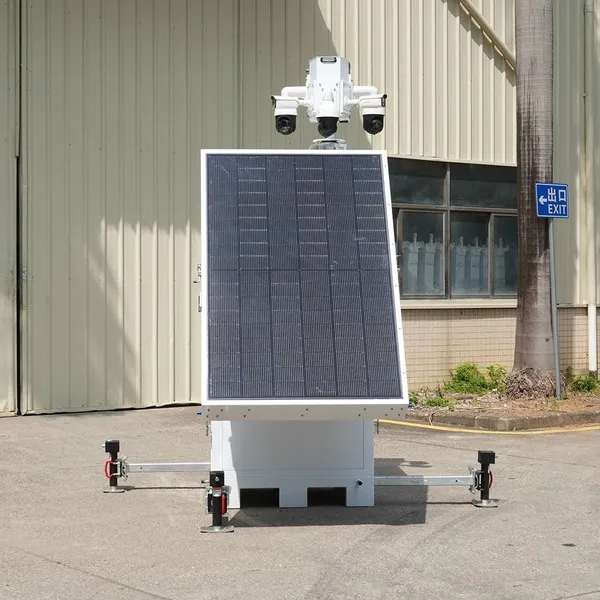

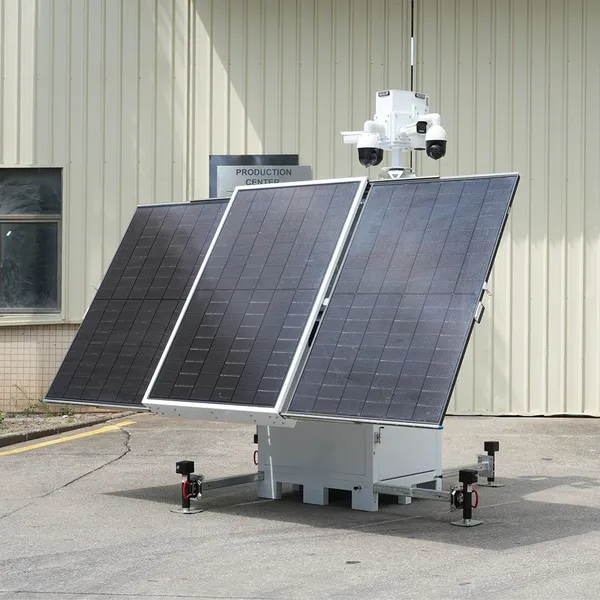

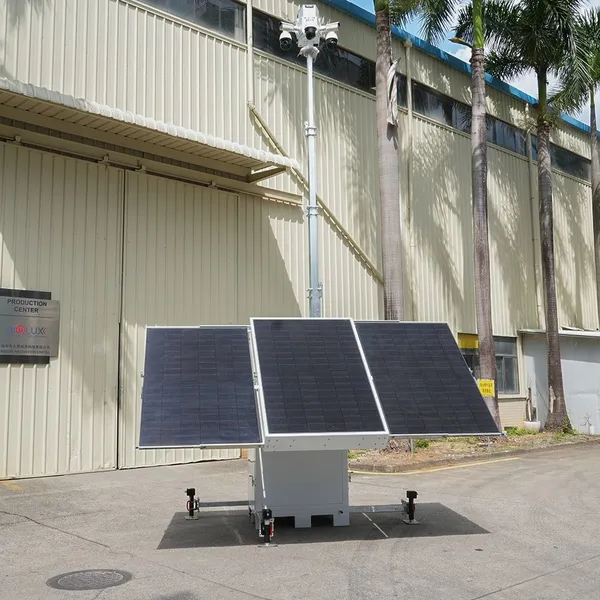

HiCUBE Solar Surveillance Tower is a modular off-grid surveillance solution developed by BIGLUX in compliance with EU standards. Featuring a compact design to reduce volume, it facilitates transportation and rapid deployment and supports flexible configurations of "tower-only" or "integrated with cameras/LED lights" to meet diverse security needs. Its core advantages lie in "modular customization, high-power supply, strong protection performance, and easy maintenance," perfectly adapting to long-term outdoor surveillance, rental services, and rapid multi-scenario deployment needs, while aligning with low-carbon and environmental protection concepts.
II. Core Product Features
1. Efficient Solar Power Supply System
Solar Panel Configuration: Equipped with 3×450W monocrystalline silicon bifacial solar panels, with a total power of 1350W. Adopts a foldable triple-panel design for easy deployment and storage; supports 0°-60° electric tilting adjustment, which can adapt to solar trajectories at different latitudes, maximizing solar energy capture and improving power generation efficiency.
Energy Storage & Endurance: Equipped with lithium iron phosphate (LFP) batteries-10240Wh for the basic model and 15360Wh for the advanced model, both with DC 48V voltage. Includes a 2.5kW AC charger (compatible with 110V/230V voltage) for auxiliary charging on cloudy days. Equipped with an MPPT controller (30A for the basic model, 35A for the advanced model with remote battery monitoring function) to optimize charging efficiency and extend battery life. It can achieve 72 hours of continuous operation when fully charged (110W load for the basic model, 170W load for the advanced model).
Battery Safety: Adopts an independent battery compartment design to enhance operational safety; each battery is equipped with independent BMS (Battery Management System) protection, ensuring stable endurance even in rainy weather.
2. Strong Protection & Durable Design
Vandalism Protection: Adopts a multi-layer protective door design to resist theft and malicious damage; hinges are installed in an embedded manner with no exposed screws to prevent prying; the mast has built-in composite cables (network cable + power cable) to prevent intentional cutting of lines.
Rust Resistance: The telescopic mast base and outriggers undergo hot-dip galvanized treatment, with an average zinc coating thickness ≥100μm; the shell uses outdoor powder coating, which can still maintain an excellent rust-proof effect in long-term humid environments, adapting to long-term outdoor deployment.
Waterproof Performance: The electrical compartment and battery compartment are designed independently, with a semi-sealed structure for direct water drainage; key joints are equipped with rubber strips and sealant to effectively prevent rainwater leakage, ensuring stable operation even in heavy rain.
3. Flexible & Practical Surveillance & Structural Design
CCTV Box Configuration: Features a six-sided structure, supporting 350° rotation and a rear-opening design for easy camera installation and maintenance; built-in 8-port POE switch, supporting DC 24V/48V and AC 110V/220V multi-voltage output, realizing "plug-and-play" for cameras.
Telescopic Mast: With a height of 6.5 meters, it is equipped with an electric lifting system for easy operation; the mast is made of hot-dip galvanized steel with built-in wiring, balancing durability and safety.
Trailer Design: Adopts US/EU/AU standard single-axle trailer, equipped with foldable tow bar, forklift holes, and lifting rings, facilitating transportation and on-site mobile deployment, and adapting to usage needs in different regions around the world.
4. Easy Maintenance & Modular Advantages
Convenient Maintenance: The equipment shell is provided with three openable doors, and the electrical cabinet door is easily accessible; the modular design simplifies the component replacement process and reduces maintenance difficulty and costs.
Flexible Configuration: Supports customized selection-you can choose only the tower body or integrate accessories such as cameras and LED lights; optional Hikvision cameras and pre-installation services are available to meet the complete surveillance needs of different scenarios.
III. Detailed Product Specifications (By Model)
| Model | BL3P-L7EHCS0B | BL3P-L7EHCS0P |
| Solar Panels | 3×450W monocrystalline silicon bifacial, 0°-60° electric tilting, foldable triple-panel design | |
| MPPT Controller | 30A (with remote battery monitoring) | 35A (with remote battery monitoring) |
| Battery | LFP 10240Wh DC 48V | LFP 15360Wh DC 48V |
| Estimated Solar Charging Time | 9 hours | 9.6 hours |
| Continuous Operation Time | 72 hours (114W load) | 72 hours (170W load) |
| CCTV Box | 350° rotatable, six-sided, rear-opening, built-in 8-port POE switch, blue&white strobe light | |
| Telescopic Mast | 6.5m, electric lifting system, hot-dip galvanized steel + built-in wiring | |
| AC Charger | 2.5kW AC 110V/230V | |
| Trailer Type | US/EU/AU standard single-axle trailer, foldable tow bar, with forklift holes + lifting rings | |
| Operating Temperature | -20ºC~55ºC | |
| Extended Dimensions | 3225×3600×6962mm | |
| Retracted Dimensions | 1315×1385×2840mm | |
| Gross Weight | 945kg | 990kg |
| Container Loading Quantity | 20GP: 8 units / 40HQ: 18 units | |
| Optional Accessories | Cameras, NVR, 4G Router, Loud Speaker | |
IV. Core Application Scenarios
Outdoor Security Scenarios: Open-air parking lots, industrial parks, and border defense lines-the modular design adapts to different surveillance scale needs.
Engineering & Industrial Scenarios: Construction sites, mining/oil fields, and road construction areas-strong protection performance adapts to harsh operating environments.
Temporary & Emergency Scenarios: Large-scale event venues, post-disaster emergency rescue areas-the compact design facilitates rapid transportation and deployment.
Rental Service Scenarios: Suitable for equipment rental companies-the modular configuration can meet customers' diverse customization needs, and the low-maintenance feature reduces operating costs.
V. Packaging & Logistics Services
Packaging Standards:
Sample Shipment: Each unit is packed in a wooden crate, focusing on protecting vulnerable components such as solar panels, telescopic masts, and surveillance boxes from collision damage during transportation.
Bulk Shipment: 8 units can be loaded into a 20GP container, and 18 units into a 40HQ container, optimizing transportation efficiency and reducing unit logistics costs.
Logistics Services:
North America: Provides "door-to-door (DDP, Delivered Duty Paid)" full-process logistics service, including customs clearance and final delivery.
Middle East/Europe/Others: Defaults to "factory-to-port (CIF, Cost, Insurance, and Freight)" service, supporting cooperation with customer-designated freight forwarders.
VI. Customization Services & After-Sales Guarantee
1. Customization Services
Appearance Customization: Supports product color and LOGO customization to match the customer's brand image or project-specific needs.
Configuration Customization: Supports modular configurations of "tower-only" or "integrated with cameras/LED lights"; optional Hikvision cameras and pre-installation services are available to realize "ready-to-use out of the box."
2. After-Sales Guarantee
Warranty Period: 2-year standard warranty, covering core components such as solar panels, batteries, MPPT controllers, masts, and surveillance boxes. For product failures during the warranty period, free technical support and replacement parts are provided.
Response Mechanism: 7×24-hour online technical consultation is available; engineers can provide remote debugging guidance for complex issues. For low-temperature winter environments, customized solutions such as thermal insulation cotton, battery heating pads, low-temperature lithium batteries, and methanol fuel generators are provided.
Production Lead Time: Standard samples are generally shipped within 4 weeks, and bulk orders (10 units and above) have a production lead time of approximately 6 weeks. Specifics can be confirmed with the sales team.
VII. Enterprise Strength Endorsement
Experience & Qualifications: With 10 years of R&D and manufacturing experience in mobile solar solutions, the products comply with EU standards, hold ISO9001 (Quality Management System) and CE (EU Market Access) certifications, and meet international standards.
Production Capacity & Projects: Monthly capacity of over 200 units, completing more than 500 outdoor surveillance projects worldwide, covering North America, the Middle East, Europe, etc., focusing on providing modular and highly reliable mobile energy products.
Core Advantages: Integrates R&D, design, and production, supporting OEM/ODM services. It deeply focuses on modular customization and strong protection design and provides full-chain support from "R&D to production to logistics to after-sales," making it a trusted off-grid surveillance solution partner that meets international standards.
