I. Product Name & Core Positioning

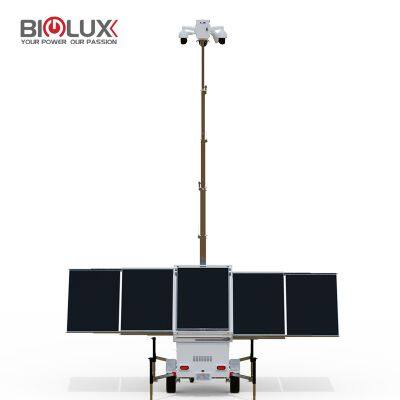

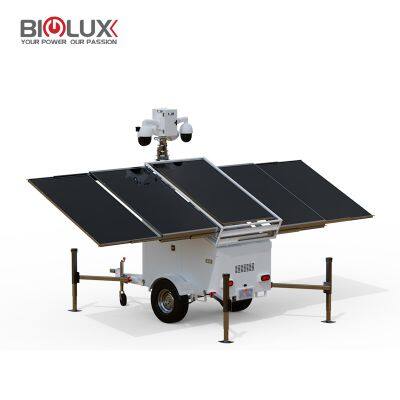

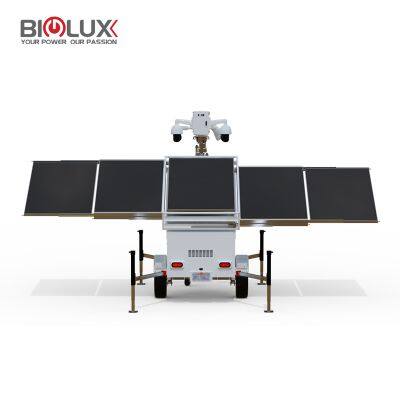

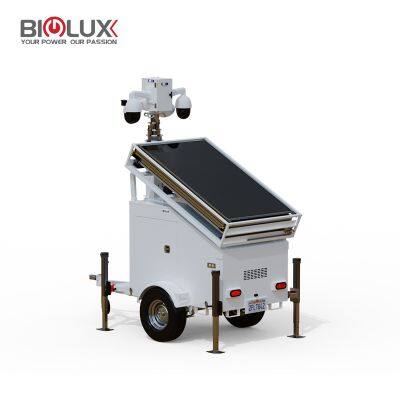

HiSTAR-V Solar Security CCTV Tower is a high-power, dual-function off-grid solution developed by BIGLUX, integrating both solar and surveillance systems. Equipped with a high-power solar system and an auto-start backup generator, it ensures 24/7 uninterrupted operation and is compatible with starlight cameras for ultra-high-definition night vision monitoring. Its core advantages lie in "high-power supply, uninterrupted endurance, strong protection performance, and high-tech security," perfectly adapting to large-scale outdoor projects, long-term security deployment, and rental service needs, realizing "one-time investment, long-term stable returns."
II. Core Product Features
1. Efficient Solar Power Supply System
Solar Panel Configuration: Equipped with 5×450W monocrystalline silicon bifacial solar panels, with a total power of 2250W. Adopts a foldable design for easy installation and storage, supporting 25°-53° electric tilting adjustment to adapt to solar trajectories at different latitudes, maximizing solar energy capture. Equipped with an MPPT controller (80A for basic models, 90A for advanced models, both with remote battery monitoring function) to optimize charging efficiency, it takes an estimated 7.7 hours to fully charge.
Energy Storage & Endurance: Two battery options are available-GEL (colloidal) battery (19200Wh) or LFP (lithium iron phosphate) battery (20480Wh), both with DC 48V voltage. When fully charged, it can achieve 72 hours of continuous operation (under 213W load) to meet long-term monitoring needs. The batteries adopt an independent battery compartment design, and each battery is equipped with independent BMS (Battery Management System) protection, ensuring stable endurance even in rainy weather.
2. Uninterrupted Power Supply Guarantee (Backup Generator)
Core Configuration: Built-in 3KW backup generator with a 50L fuel tank, supporting an auto-start system. When solar power supply is insufficient (e.g., prolonged rainy weather, extreme conditions), the generator automatically starts to supplement power, completely avoiding security blind spots caused by power outages and ensuring continuous operation of monitoring and lighting.
3. Strong Protection & Durable Design
Anti-Theft & Vandalism: Adopts a multi-layer anti-theft door design to resist malicious damage; hinges are installed in an embedded manner with no exposed screws to prevent prying; the mast has built-in composite cables (network cable + power cable) to avoid intentional cutting of cables.
Rust Resistance: The telescopic mast base and outriggers undergo hot-dip galvanized treatment, with an average zinc coating thickness ≥100μm; the shell uses outdoor powder coating, which can still maintain an excellent rust-proof effect in long-term humid environments, adapting to long-term outdoor deployment.
Waterproof Performance: The electrical compartment and battery compartment are designed independently, with a semi-sealed structure to achieve direct drainage of rainwater; key joints are equipped with rubber strips and sealant to effectively prevent rainwater leakage, ensuring stable operation even in heavy rain.
4. Flexible & Practical Structure & Surveillance Design
Telescopic Mast: The basic model has a 6.5m manual lifting winch, and the advanced model has an 8.5m electric lifting winch; the mast is made of hot-dip galvanized steel with built-in wiring, balancing durability and safety. When lifted, it can expand the monitoring field of view.
CCTV Box Configuration: Features a six-sided structure, supporting 350° rotation and a rear-opening design for easy camera installation and maintenance; built-in 8-port POE switch, supporting DC 24V/48V and AC 110V/220V multi-voltage output, realizing "plug-and-play" for cameras; equipped with blue & white strobe lights to enhance security warning effects.
Trailer Design: Adopts US/EU/AU standard single-axle trailer, equipped with foldable tow bar, forklift holes, and lifting rings, facilitating transportation and on-site mobile deployment, and adapting to usage needs in different regions around the world.
5. Easy Maintenance & Convenient Operation
Convenient Maintenance: The equipment shell is provided with three openable outer doors, and the electrical cabinet door is easily accessible; the modular design simplifies the component replacement process and reduces maintenance difficulty and costs.
User-Friendly Operation: No complex tools are required-only positioning is needed for deployment; the control panel is intuitive and easy to understand, combined with plug-and-play functions, reducing labor intervention costs.
III. Detailed Product Specifications (By Model)
IV. Core Application Scenarios
Large Outdoor Projects: Open-air mining areas, oil fields, and large parking lots-high-power supply and uninterrupted endurance adapt to long-term intensive monitoring needs.
Engineering & Industrial Scenarios: Large construction sites and road construction areas-strong protection performance withstands harsh operating environments, and the backup generator avoids power outage risks.
Security & Emergency Scenarios: Border defense lines, forest fire prevention areas, and post-disaster emergency rescue sites-24/7 uninterrupted monitoring and lighting provide comprehensive security guarantees.
Rental Service Scenarios: Suitable for equipment rental companies-the high-power and multi-function features can meet high-end security needs of large events and temporary projects, and the low-maintenance design reduces operating costs.
V. Packaging & Logistics Services
Packaging Standards:
Sample Shipment: Each unit is packed in a wooden crate, focusing on protecting core components such as solar panels, telescopic masts, surveillance boxes, and generators from collision damage during transportation.
Bulk Shipment: 3 units can be loaded into a 20GP container, and 7 units into a 40HQ container, optimizing transportation efficiency and reducing unit logistics costs.
Logistics Services:
North America: Provides "door-to-door (DDP, Delivered Duty Paid)" full-process logistics service, including customs clearance and final delivery.
Middle East/Europe/Others: Defaults to "factory-to-port (CIF, Cost, Insurance, and Freight)" service, supporting cooperation with customer-designated freight forwarders.
VI. Customization Services & After-Sales Guarantee
1. Customization Services
Appearance Customization: Supports product color and LOGO customization to match the customer's brand image or project-specific needs.
Configuration Customization: Optional Hikvision cameras and pre-installation services are available to realize "ready-to-use out of the box"; for low-temperature winter environments, customized solutions such as thermal insulation cotton, battery heating pads, and low-temperature lithium batteries are provided.
2. After-Sales Guarantee
Warranty Period: 2-year standard warranty, covering core components such as solar panels, batteries, MPPT controllers, masts, surveillance boxes, and backup generators. For product failures during the warranty period, free technical support and replacement parts are provided.
Response Mechanism: 7×24-hour online technical consultation is available; engineers can provide remote debugging guidance for complex issues. In case of emergencies, emergency replacement parts can be expedited to reduce downtime.
Production Lead Time: Standard samples are generally shipped within 4 weeks, and bulk orders (10 units and above) have a production lead time of approximately 6 weeks. Specifics can be confirmed with the sales team.
VII. Enterprise Strength Endorsement
Experience & Qualifications: With 10 years of R&D and manufacturing experience in mobile solar solutions, it holds ISO9001 (Quality Management System) and CE (EU Market Access) certifications, and its products comply with international standards.
Production Capacity & Projects: Monthly capacity of over 200 units, completing more than 500 outdoor security and lighting projects worldwide, covering North America, the Middle East, Europe, etc., focusing on providing high-power and highly reliable mobile energy products.
Core Advantages: Integrates R&D, design, and production, supporting OEM/ODM services. It deeply focuses on high-power uninterrupted power supply and strong protection design and provides full-chain support from "R&D to production to logistics to after-sales," making it the preferred off-grid security solution partner for large-scale outdoor projects.
Company Information
BIGLUX is a quality-oriented and innovation-driven company. We develop and implement the most energy-saving mobile surveillance trailer, solar surveillance tower, solar trailer, solar light tower, and other mobile solar power solutions for construction sites, parking lots, sports, events, emergency applications, etc. We have a background of over 10 years' experience in the SOLAR and MOBILE TRAILER industry, a strong expertise in SOLAR TRAILER and MOBILE POWER latest technologies, a broad experience in SOLAR TRAILER and MOBILE POWER applications, an insatiable thirst for smart, intelligently controlled SOLAR TOWER systems, and a great heart of contribution to the most energy-saving and environmentally friendly world. We have professional engineer support, a high-efficiency sales team, and competitive price superiority, and we attract customers from all over the world. We export to over 40 countries, including the USA, Canada, Australia, European Union countries, GCC countries in the Middle East, South American countries, and African countries. Our R&D department provides strong technical support; innovation extends far beyond the new technologies. BIGLUX is dedicated to delivering superior products and services that cater to the unique requirements of each client.
