I. Product Name & Core Positioning
HiGUARD Solar CCTV Tower is a compact off-grid surveillance solution developed by BIGLUX specifically for rapid deployment and rental scenarios. With a compact design and easy mobility, it relies on an independent solar power supply, eliminating the need for fixed power grids and infrastructure. It can quickly set up security monitoring at any location, such as remote sites, temporary events, and emergency areas. Its core advantages lie in "zero installation threshold, low maintenance cost, and efficient autonomous operation," perfectly adapting to rental businesses and short-term monitoring needs and achieving a convenient "deploy-and-use" experience.
II. Core Product Features
1. Efficient Solar Power Supply System

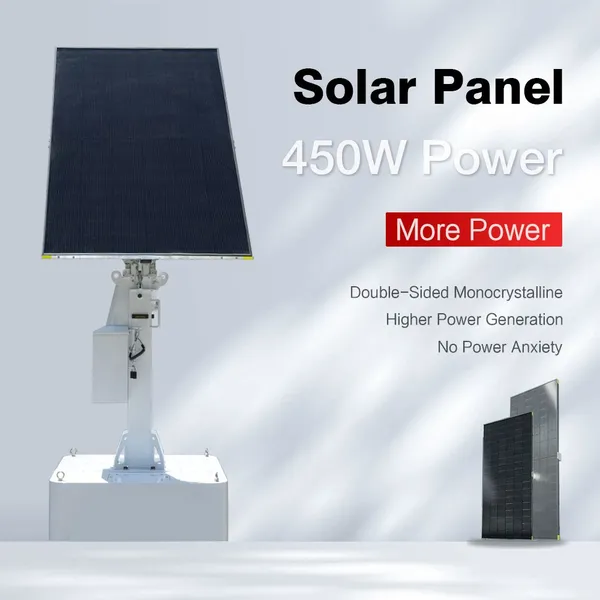

Solar Panel Configuration: Equipped with a 1×450W monocrystalline silicon bifacial solar panel. The bifacial light absorption design improves power generation efficiency, enabling more sufficient energy conversion compared to traditional panels. It supports 180° rotation and 90° tilting adjustment, which can flexibly adapt to different terrains and sun trajectories, maximizing solar energy capture and completely eliminating power supply anxiety.
Energy Storage & Endurance: Equipped with LFP (lithium iron phosphate) batteries-2560Wh for the basic model and an optional 4019Wh for the advanced model. When fully charged, it can achieve 72 hours of continuous operation (28W load for the basic model, 44W load for the advanced model). Equipped with an MPPT controller (20A for the basic model, 150/35A for the advanced model with remote battery monitoring), it optimizes charging efficiency, prevents overcharging and over-discharging, and extends battery life. An optional AC input interface is available for auxiliary charging on cloudy days to ensure endurance.
2. Flexible & Practical Surveillance Structure Design

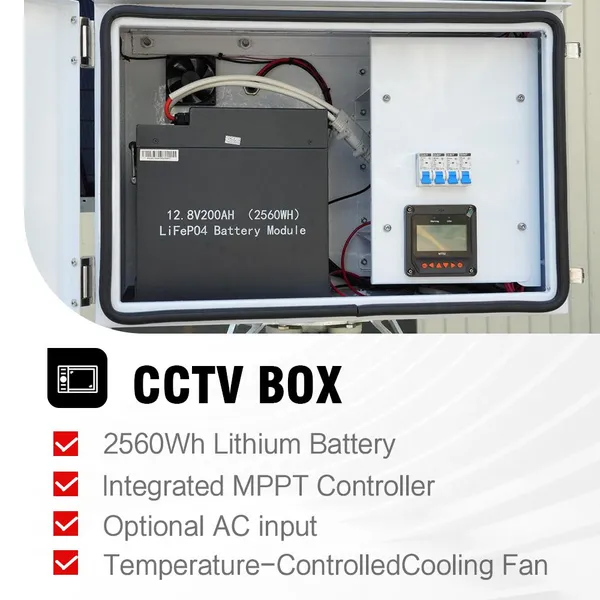

CCTV Box Configuration: Integrates energy storage, control, and heat dissipation functions. The built-in temperature-controlled cooling fan prevents equipment overheating and ensures stable operation. It reserves ample installation space and supports DC 24V/48V voltage output, perfectly matching the power supply needs of most surveillance cameras.
Camera Mounting Plate: Provides front, rear, and bottom three-way mounting positions to adapt to different monitoring direction requirements. Adopts a quick-install design that simplifies the assembly process, reduces labor costs, and realizes "plug-and-play" for cameras.
Telescopic Mast: With a height of 3.5 meters, it is made of hot-dip galvanized steel, featuring excellent rust resistance and adapting to long-term outdoor deployment. After lifting, the mast can expand the monitoring field of view to cover a larger area, meeting short-to-medium distance security monitoring needs. It is lifted and lowered by a manual winch, which is easy to operate and stable and reliable.
3. Convenient Mobility & Stable Fixing Design
Forklift Base: Adopts a hollow metal base (hot-dip galvanized), equipped with 2 forklift holes and 4 lifting rings, supporting forklift handling and hoisting operations for quick equipment relocation. The base can be filled with sand and gravel to greatly improve stability after deployment and prevent tipping.
Compact Size: The dimension in transit is only 1134×1100×3157.5mm (basic model)/3257.5mm (advanced model), and the dimension after deployment is 1134×1100×5221.5mm. Its compact size facilitates bulk transportation and storage, reducing logistics costs.
III. Detailed Product Specifications (By Model)

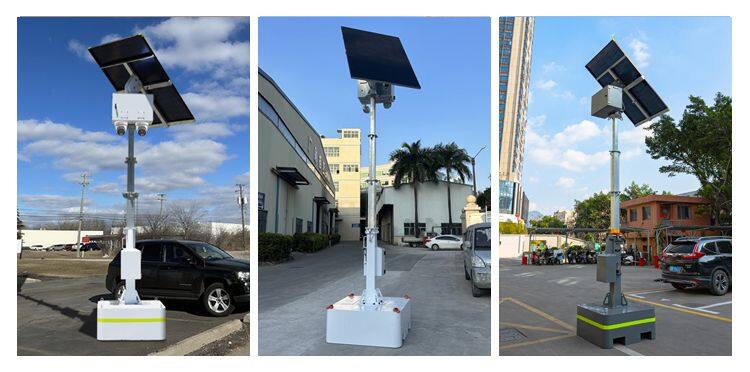

IV. Core Application Scenarios
Rental Service Scenarios: Suitable for equipment rental companies, it can be used as a short-term monitoring rental asset to serve temporary engineering projects, exhibitions, short-term security, and other needs. Its low-maintenance feature reduces rental operation costs.
Temporary Surveillance Scenarios: Outdoor parking lots, temporary construction sites, remote mining areas/oil fields, and post-disaster emergency rescue sites-complete monitoring links can be set up quickly without infrastructure support.
Industrial & Public Scenarios: Industrial parks, logistics warehouses, and forest fire prevention areas. The compact size facilitates storage and multiple transfers, and the 3.5-meter mast meets medium-range monitoring coverage needs.
V. Packaging & Logistics Services

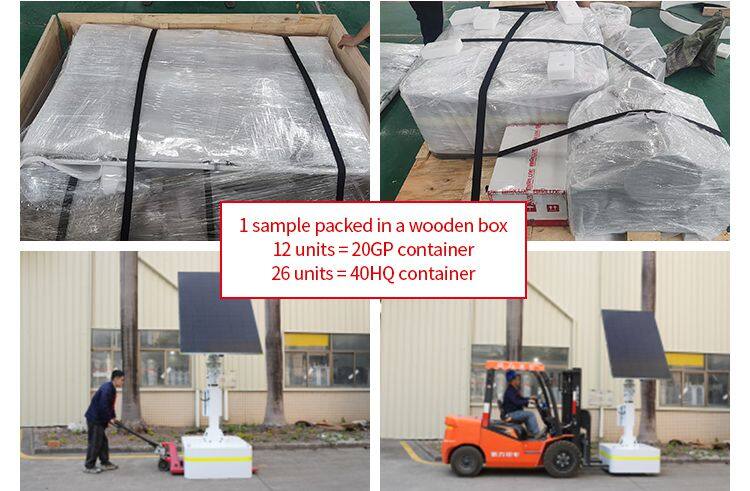

Packaging Standards:
Sample Shipment: Each unit is packed in a wooden crate, focusing on protecting vulnerable components such as solar panels, telescopic masts, and surveillance boxes to avoid collision damage during transportation.
Bulk Shipment: 12 units (applicable to both models) can be loaded into a 20GP container; 28 units (basic model) or 24 units (advanced model) can be loaded into a 40HQ container, maximizing transportation efficiency and reducing unit logistics costs.
Logistics Services:
North America: Provides "door-to-door (DDP)" full-process logistics service, covering customs clearance and delivery to the designated location.
Middle East/Europe/Others: Defaults to "factory-to-port (CIF)" service, compatible with customer-designated freight forwarders, supporting delivery to major global ports.
VI. Customization Services & After-Sales Guarantee
1. Customization Services
Appearance Customization: Supports product color and LOGO customization to match the customer's brand image or project-specific needs.
Configuration Upgrade: Optional Hikvision cameras and pre-installation services are available to achieve integrated delivery of "equipment + cameras"; the 4019Wh high-capacity battery can be upgraded to extend continuous running time.
Function Expansion: Optional AC input interface is available to adapt to multi-scenario power supply needs (additional cost applies).
2. After-Sales Guarantee
Warranty Period: 2-year standard warranty, covering core components such as solar panels, batteries, MPPT controllers, and masts. For product failures during the warranty period, free technical support and replacement parts are provided.
Response Mechanism: 7×24-hour online technical consultation is available; engineers can provide remote debugging guidance for complex issues. In case of emergencies, emergency replacement parts can be expedited to reduce downtime.
Production Lead Time: Standard samples are shipped within 2 weeks; production lead time for bulk orders (10 units and above) is approximately 1 month, which can be confirmed with the sales team.
Quality Assurance: Core electrical components (solar panels, controllers, batteries, etc.) are from well-known brands and comply with international certification standards such as CE and FCC, ensuring product reliability.
VII. Enterprise Strength Endorsement
Experience & Qualifications: 10 years of R&D and manufacturing experience in mobile solar solutions, holding ISO9001 (Quality Management System) and CE (EU Access) certifications. Products comply with international standards.
Production Capacity & Projects: Monthly capacity of 200+ units, completing 500+ outdoor surveillance projects worldwide (covering North America, the Middle East, Europe, Africa, etc.), focusing on providing mobile energy products with high reliability and low maintenance costs.
Core Advantages: Integrates R&D, design, and production, supporting OEM/ODM services. It deeply cultivates the needs of rental scenarios and can provide customers with full-chain support from "R&D to production to logistics to after-sales," making it a trustworthy partner for mobile solar solutions.
Company Information
BIGLUX Mobile Solar Solutions: Integrated with solar and battery systems to reach the most energy-efficient systems for multiple applications, which are available as solar trailers, solar surveillance towers, portable CCTV towers, solar light tower, solar powered telecom tower, mobile ESS solutions for outdoor parking lots, construction sites, mine sites, sports and events, etc. It is a self-powered, self-networked, and mobile solution with ease and efficiency to realize full-scene rapid deployment.
