I. Product Name & Core Positioning

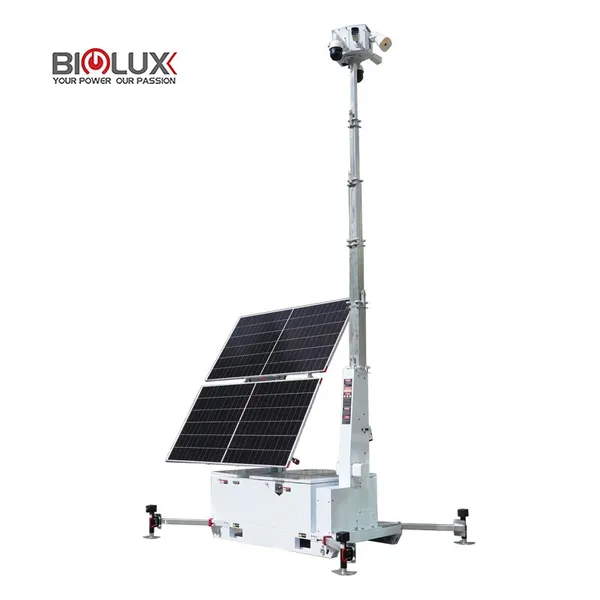

HiSKID-II Solar CCTV Camera Tower is an off-grid intelligent surveillance solution featuring a skid-mounted base developed by BIGLUX. It integrates a skid base, solar power system, telescopic mast, and CCTV unit, enabling 24/7 autonomous operation without grid power. The skid-mounted design facilitates easy relocation and rapid deployment, making it ideal for remote areas, construction sites, and temporary security needs where fixed infrastructure is unavailable. Its core advantages lie in "quick deployment, stable performance, low maintenance, and flexible mobility," perfectly adapting to long-term outdoor surveillance and rental service scenarios.
II. Core Product Features
1. Efficient Solar Power Supply System

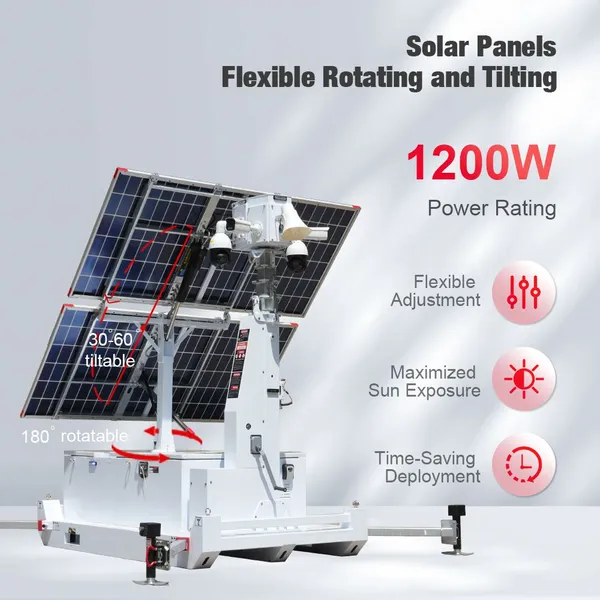

Solar Panel Configuration: Adopts 2×450W (basic model) or 2×600W (advanced model) monocrystalline silicon bifacial solar panels. Supports 180° manual rotation and 30°-60° electric tilting to flexibly align with the sun's trajectory, maximizing solar energy capture. The dual-panel design delivers up to 1200W power, ensuring robust energy output for continuous monitoring.
Energy Storage & Endurance: Equipped with GEL (9600Wh/12000Wh) or LFP (8038Wh/14336Wh) batteries (DC 24V), supporting 72 hours of continuous operation (90W load for basic models, 133W load for advanced models). Comes with a 1.5kW AC charger (compatible with 110V/230V) for auxiliary charging on cloudy days. Equipped with an MPPT controller (50A for basic models, 150/45A for advanced models with remote battery monitoring) to optimize charging efficiency and extend battery life.
2. Versatile & Durable CCTV Configuration

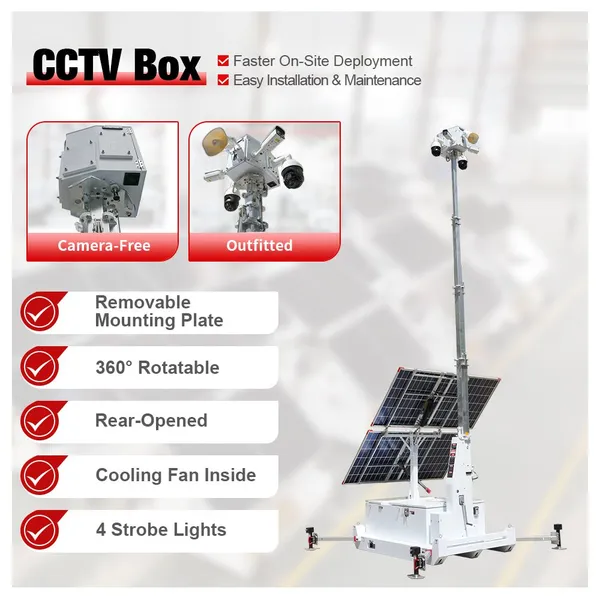

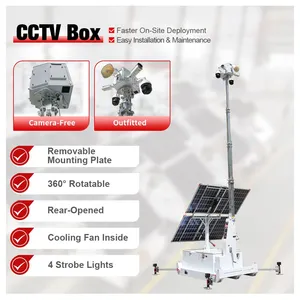

CCTV Box Design: Features a six-sided structure with a 350° rotatable design, rear-opening access, and a removable mounting plate. Built-in 8-port POE switch, internal cooling fan, and blue&white strobe lights. Enables quick camera installation and maintenance, while the strobe lights enhance security warning effects.
Camera Compatibility: Supports up to 6 cameras (depending on power consumption). Compatible with most CCTV cameras via DC 24V/48V power output, realizing plug-and-play functionality. Optional Hikvision cameras and pre-installation services are available.
3. Robust Telescopic Mast & Structural Design
Telescopic Mast: Basic models feature a 6.5m manual lifting winch, while advanced models have an 8.5m electric lifting winch. Made of hot-dip galvanized steel with built-in composite cables (network + power), the mast resists corrosion, cutting, and vandalism. The hot-dip galvanized coating is 3x thicker than electroplating, ensuring all-weather durability.

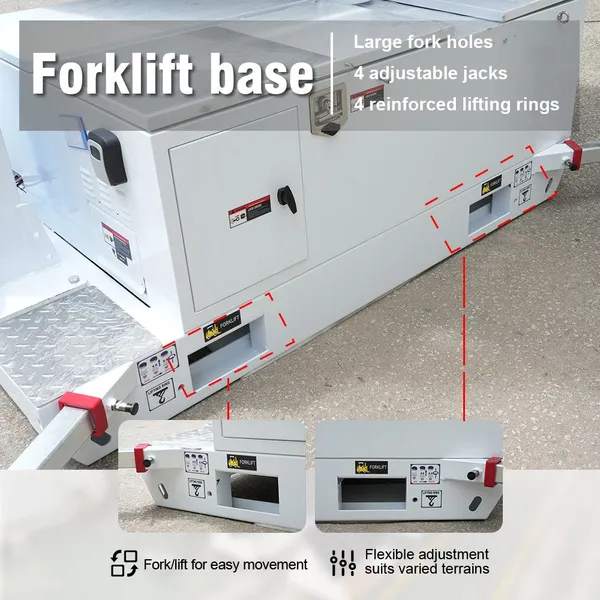

Skid-Mounted Base: Equipped with large forklift holes, 4 reinforced lifting rings, and 4 adjustable jacks. Facilitates easy relocation via forklift or hoisting, and the adjustable jacks ensure stable placement on uneven terrain. The base design eliminates the need for complex foundation construction, streamlining deployment.
4. All-Climate Protection Performance
Waterproof & Dustproof: Achieves IP65-equivalent waterproof performance with enhanced joint sealing and blind hole fasteners. Prevents water intrusion and maintains internal dryness, enabling stable operation in downpours.
Wide Temperature Adaptation: Operates reliably within -20ºC~55ºC, adapting to harsh outdoor conditions such as humidity, salt spray, and extreme temperatures. Key components are hot-dip galvanized for zero maintenance and extended service life.
5. Practical Storage & Additional Features
Oversized Trunk: Boasts 8 square feet of storage space to hold tools, cameras, and other on-site essentials. Reserved expansion space accommodates future storage needs.
Integrated Wiring: Built-in composite cables eliminate exposed wires, preventing aging and damage, while extending the service life of the equipment.
III. Detailed Product Specifications (By Model)
IV. Core Application Scenario
Remote Industrial Scenarios: Mining sites, oil fields, and border areas-operates independently off-grid, with a skid base enabling easy relocation between work zones.
Temporary Construction Scenarios: Construction sites, road construction zones, and temporary job sites-rapid deployment without foundation work, supporting short-term to medium-term security monitoring.
Public & Emergency Scenarios: Outdoor parking lots, large-scale events, and post-disaster emergency areas-stable performance in harsh weather, with strobe lights enhancing warning effects.
Rental Service Scenarios: Ideal for equipment rental companies, the skid-mounted design and low maintenance reduce operational costs, catering to contractors' temporary surveillance needs.
V. Packaging & Logistics Services

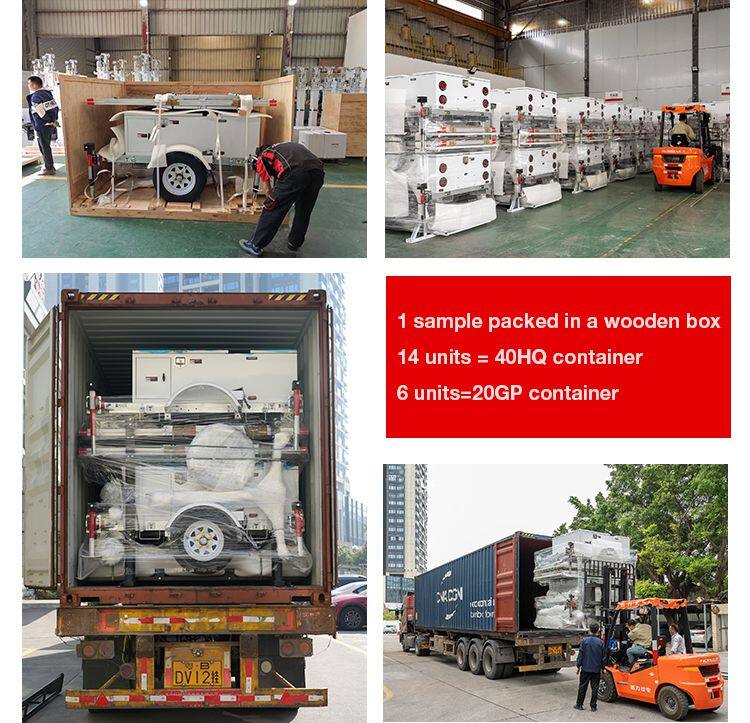

Packaging Standards:
Sample Shipment: Single units are packed in wooden crates to protect solar panels, masts, and CCTV boxes from collision damage during transit.
Bulk Shipment: 6 units fit in a 20GP container, and 14 units in a 40HQ container, optimizing transportation efficiency and reducing costs.
Logistics Services:
North America: Provides "door-to-door (DDP)" full-process logistics, including customs clearance and final delivery.
Middle East/Europe/Others: Offers "factory-to-port (CIF)" services, supporting cooperation with customer-designated freight forwarders.
VI. Customization Services & After-Sales Guarantee
1. Customization Services
Appearance Customization: Supports product color and LOGO customization to align with brand identity.
Configuration Upgrade: Optional Hikvision cameras and pre-installation services, enabling integrated delivery of "tower + cameras" for plug-and-play use.
Accessory Addition: Optional NVR, 4G router, and loud speaker to meet comprehensive surveillance and communication needs.
2. After-Sales Guarantee
Warranty Period: 2-year standard warranty covering solar panels, batteries, MPPT controllers, masts, and CCTV boxes. Free technical support and replacement parts are provided for product failures during the warranty period.
Response Mechanism: 7×24-hour online technical consultation is available. Engineers offer remote debugging guidance for complex issues, and emergency replacement parts can be expedited to minimize downtime.
Production Lead Time: Standard samples ship within 2 weeks; bulk orders (10 units and above) have a production lead time of approximately 1 month. Specifics can be confirmed with the sales team.
VII. Enterprise Strength Endorsement
Experience & Qualifications: 10 years of R&D and manufacturing experience in mobile solar solutions, holding ISO9001 (Quality Management System) and CE (EU Market Access) certifications. Products comply with international standards.
Production Capacity & Projects: Monthly capacity of 200+ units, with over 500 global outdoor surveillance projects spanning North America, the Middle East, Europe, and beyond.
Core Advantages: Integrates R&D, design, and production, supporting OEM/ODM services. Specializes in skid-mounted and mobile solar solutions, providing full-chain support from R&D to after-sales, making it a trusted partner for off-grid security needs.
