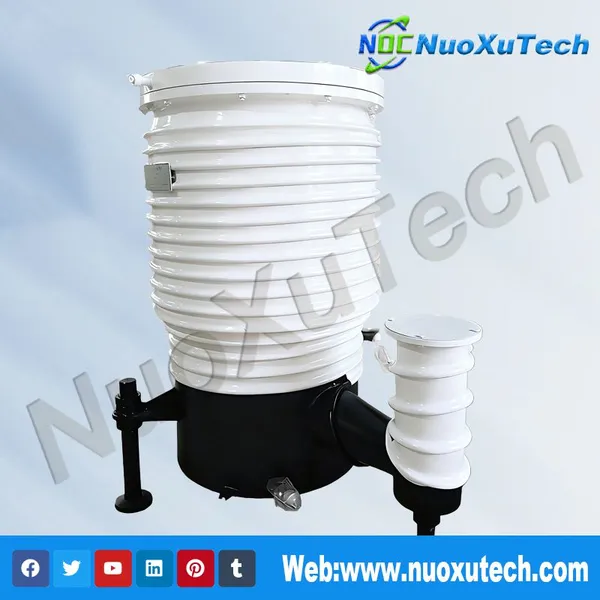

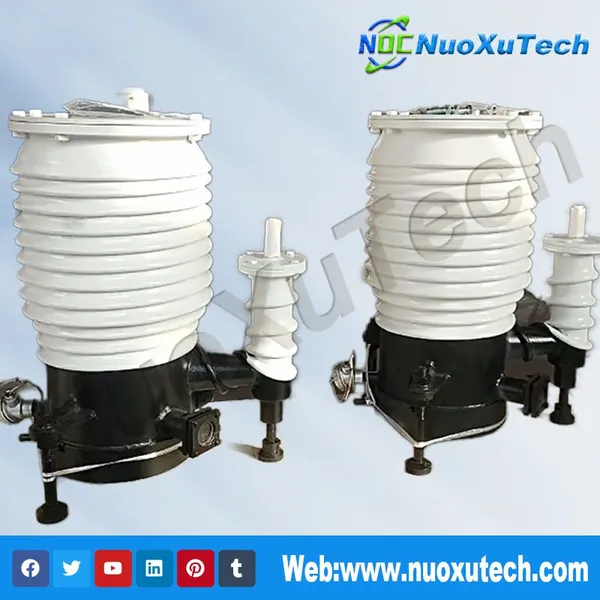

Help CenterKT Series Oil Diffusion Vacuum Pump
Related Products
-
Z Series Oil Booster PumpUS$ 799 - 18000MOQ: 1 Set -
KN Series Oil Diffusion PumpUS$ 799 - 18000MOQ: 1 Set
-
CC Series Manual Ultra High Vacuum Gate ValveNegotiableMOQ: 1 Set
-
NuoXuTech CCD Series Electric Ultra High Vacuum Gate ValveNegotiableMOQ: 1 Set
-
NuoXuTech CCQ Series Electric Ultra High Vacuum Gate ValveNegotiableMOQ: 1 Set
| Item | K-250 | K-300 | K-320 | K-400 | K-500 | K-600 | K-630 | K-800 | K-1000 | K-1200 | |
| KT-250 | KT-300 | KT-320 | KT- 400 | KT-500 | KT-600 | KT-630 | KT-800 | KT-1000 | KT-1200 | ||
| Ultimate pressure (Pa) |
5×10–5 | ||||||||||
| Pumping Capacity (L/S) | 3100 | 4000 | 4600 | 7500 | 11000 | 16000 | 18000 | 26000 | 40000 | 55000 | |
| 3500 | 4600 | 5000 | 8500 | 12000 | 17500 | 20000 | 30000 | 50000 | 60000 | ||
| Critical fore-pump pressure(Pa) |
40 | ||||||||||
| Backflow rate mg/(cm2.min) |
≤3×10–2 | ||||||||||
| Heating time(min) | ≤40 | ≤45 | ≤50 | ≤60 | ≤65 | ≤80 | |||||
| Heating Power(KW) | 2.2-2.4 | 2.4-3 | 4~5 | 4~5 | 6~8 | 8~9 | 9~11 | 13-13.5 | 17-20 | 28-30 | |
| Voltage（V） | 220 | 380 | |||||||||
| Pump Oil Model | KS-3 | ||||||||||
| Pump Oil Volume ( L) |
1-1.4 | 1-1.6 | 1.4-1.8 | 3~4 | 4 | 6~7 | 7~8 | 12~14 | 15-16 | 22 | |
| Cooling water consumption(L/s) |
350 | 400 | 420 | 500 | 600 | 800 | 850 | 1200 | 1500 | 2600 | |
| Inlet dimension ( mm) |
250 | 300 | 320 | 400 | 500 | 600 | 630 | 800 | 1000 | 1200 | |
| Outlet dimension(mm) | 65 | 80 | 80 | 100 | 100 | 150 | 160 | 200 | 300 | 300 | |
| Recommended forepump speed(L/s) | 8 | 15 | 15 | 30 | 70 | 70 | 70 | 150 | 300 | 300 | |
| Dimension (mm) | L(Length) | 473 | 695 | 725 | 885 | 1010 | 1145 | 1170 | 1520 | 1990 | 2235 |
| B(Width) | 450 | 505 | 525 | 665 | 815 | 975 | 1010 | 1275 | 1290 | 1750 | |
| H(Height) | 650 | 726 | 830 | 925 | 1165 | 1444 | 1275 | 1870 | 2220 | 2465 | |
| Net weight(kg) | 41 | 76 | 85 | 150 | 165 | 345 | 390 | 620 | 940 | 1450 | |
Strong Pumping Ability:
Capable of achieving and maintaining high vacuum levels efficiently, ensuring reliable performance in demanding environments.
Large Pumping Capacity:
Offers a wide range of pumping capacities, from 480 to 60000 l/s, catering to various application needs with precision and versatility.
Integration Flexibility:
Can be seamlessly integrated with water-cooled plates, valves, and mechanical vacuum pumps to create customized high vacuum systems tailored to specific requirements.
Ultimate Pressure Capabilities:
Enables the attainment of ultimate pressure levels as low as (2 ~ 10*10^-4 Pa), meeting the stringent demands of high vacuum applications.
The KT Series Oil Diffusion Vacuum Pump is widely utilized across industries for various applications, including:
Semiconductor Manufacturing
Vacuum Coating
Aerospace Technology
Research Laboratories
Material Science
Thin Film Deposition
Particle Accelerators
Electron Microscopy
Space Simulation Chambers
Experience the power, precision, and reliability of the KT Series Oil Diffusion Vacuum Pump, engineered to deliver exceptional performance in achieving and maintaining high vacuum levels for critical applications.
