Microcomputer Paper Cup Stiffness Tester Laboratory Equipment Microcomputer Controlled Stiffness Tester With Printer

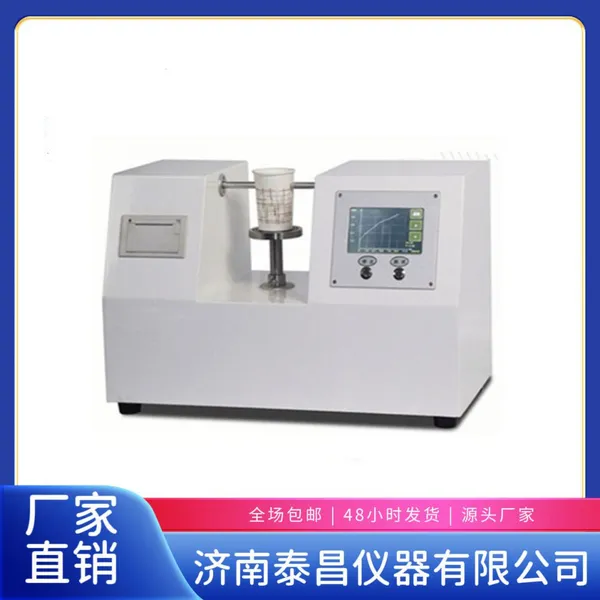

Paper cup stiffness tester (paper bowl stiffness tester)

1、 Product Introduction

The paper cup stiffness tester is a specialized instrument used to measure the stiffness of paper and cardboard, especially suitable for measuring the stiffness of paper and cardboard with low basis weight and thickness less than 1mm

2、 Product Features

1. Fully automatic electronic testing instrument, easy to use, with a wider testing range

2. Large LCD microcomputer control system

3. Micro printer, capable of printing test data at any time

3、 Product application

Suitable for measuring the stiffness of various capacity cups, it is an ideal instrument for measuring the stiffness of paper cup bodies. It is a commonly used physical performance testing instrument for paper cups in paper cup production factories and related scientific research and quality inspection departments.

4、 Technical standards

QB/T 2294-2006 "Paper Cups"

5、 Product parameters

Measurement range                                                      （1～20）N， Resolution of 0.01N

Accuracy of indication                                                     Indication error σ 1%, indication variability ≤ 1%

Test speed                                                                      （50.0±2.5）mm/min

Relative movement distance of the measuring head    （9.5±0.5）mm

Probe for neutrality                                                          ≤0.2mm

Distance between two probes                                       （50～160）mm

External dimensions                                                         500mm×270mm×340mm

6、 Product configuration

One host, one manual, and a certificate of conformity
