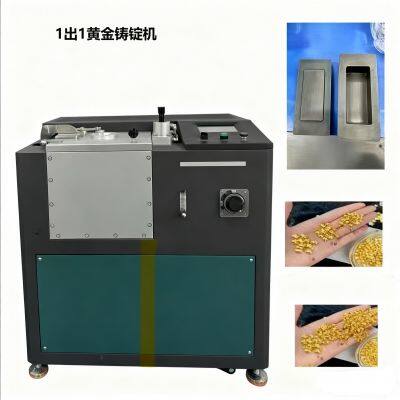

1-in-1 Gold Ingot Casting Machine Preset Program Can Complete the Entire Process of Melting, Insulation, and Casting With One Click

1-in-1 gold ingot casting machine

Equipment Introduction:

·Accurate temperature control to avoid loss of metal oxygen or components due to overheating.

·Reduce oxidation: The enclosed design or inert gas (such as argon) protection function prevents molten metal from coming into contact with air, reduces the formation of oxidation slag, and ensures its purity.

·Low loss rate: The vacuum casting chamber is matched with a pure graphite tank, and is melted by medium frequency induction heating without residue. The loss rate of precious metals can reach less than 0.05%.

·Automated operation: Modern models are equipped with touch screens or PLC control, and preset programs can complete the entire process of melting, insulation, and casting with one click, reducing the risk of manual intervention.

Operation process:

1. Turn on the main power switch and press the auto button

2. Set the parameters properly

3. Place the graphite groove in the center of the induction coil

4. Turn on the manual button to start heating (heating the graphite mold for 1-2 minutes)

5. Stop heating and place the weighed metal in the graphite tank

6. Turn on the automatic button and press the start switch to start heating

7. Waiting for dissolution

8. Automatically open the cylinder head and remove the graphite mold after completing the work

9. Remove the gold from the graphite tank

Configuration List:

1. Graphite groove 2, graphite mold clamp 3, water pipe
