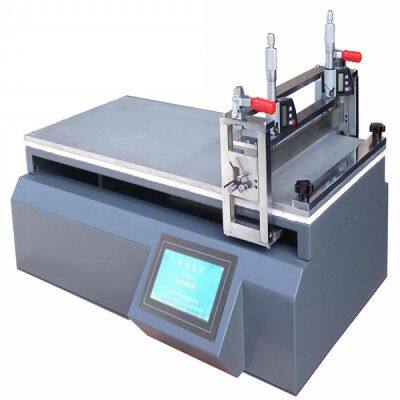

Lithium Battery Film Coating Machine TC-TBJ01 Rod Coating Machine Battery Separator Coating Machine

Brief introduction:

All the small coating testing machines used in the experiment are equipped with imported accessories and are priced affordably, which has won the favor of many multinational enterprise research and development institutions, as well as many well-known universities and research institutions at home and abroad. By controlling the speed and stable pressure to ensure the coating effect, the uniformity and smoothness of the coating are guaranteed

Product Introduction:

Due to the main factors affecting the coating film, such as coating speed and pressure applied on the coating applicator, inconsistencies often occur in manually applied coatings, especially between different people, which makes it difficult to compare test results between samples. Our company's automatic coating machine is carefully designed to enable operators to easily apply precise wet films on different substrates, greatly improving the reproducibility of coating.

All small coating machines in the laboratory use imported accessories and are priced affordably, which has won the favor of many multinational research and development institutions and well-known universities at home and abroad.

By controlling the speed and stable pressure to ensure the coating effect, the uniformity and smoothness of the coating are guaranteed

The biggest feature of laboratory small coating machines is that they can be used for paper, plastic, metal PVC、PET、 Conduct coating experiments on various flat materials such as fabrics and aluminum alloy plates.

Technical Specifications:

Coating accuracy: 0.003MM

Coating thickness: 0-10MM. The scraper can be raised and lowered

Speed: 0-12m/min (infinitely variable speed)

Coating size: 300 * 400MM

Heating temperature: 0-200 degrees

Coating time: digital display, different lengths, different speeds, time accuracy control

Scraper: Length: 400mm Material/Stainless Steel (thickness can be changed freely)

Power supply: Voltage 220V 50HZ

Power: 1600W

Machine volume: 690 * 410 * 520 (length * width * height)

Machine weight: Net weight 52KG
