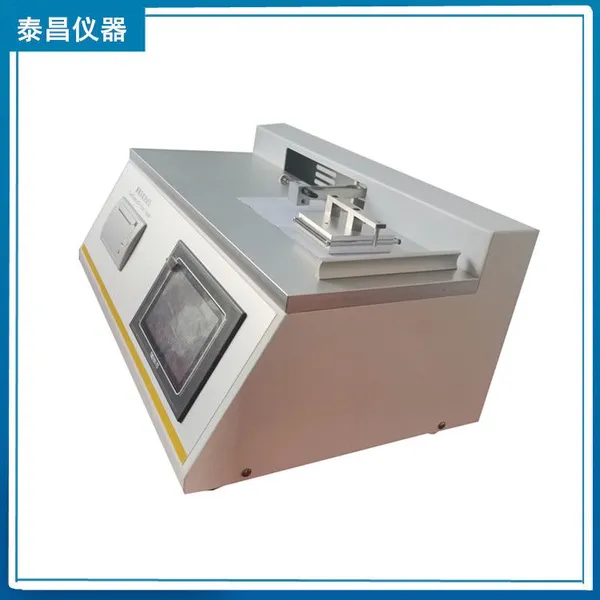

Plastic Film Friction Coefficient Tester, Paper Sheet Friction Coefficient Tester, Surface Sliding Friction Coefficient Tester

application

MXD-01 Friction Coefficient Tester is suitable for measuring the static and dynamic friction coefficients of materials such as plastic films and sheets, rubber, paper, cardboard, woven bags, fabric styles, metal composite belts for communication cables and optical cables, conveyor belts, wood, coatings, brake pads, wipers, shoe materials, tires, etc. when sliding. By measuring the smoothness of materials, the production quality and process indicators of materials can be controlled and adjusted to meet the requirements of product use. In addition, it can also be used for measuring the smoothness performance of daily chemical products such as cosmetics and eye drops.

Product Features

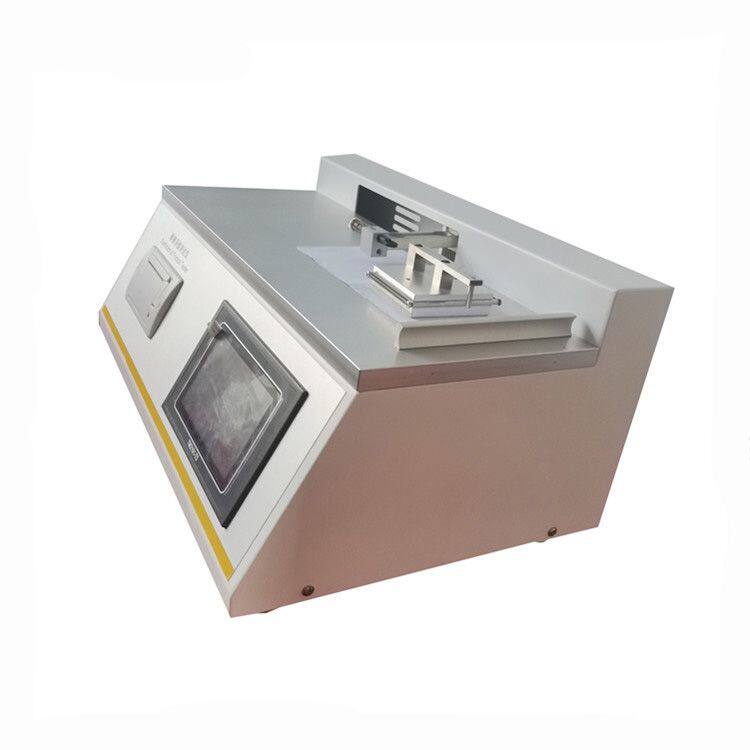

The MXD-01 friction coefficient tester adopts microcomputer control, LCD display, and PVC operation panel.

2. It can automatically measure the dynamic and static friction coefficients of the sample simultaneously.

3. Adopting high-precision ball screw transmission, stable performance, precise testing, and easy operation.

4. Configure a micro printer to print one (or multiple) sets of results and averages.

Technical Parameter

1. Slide size: 63 × 63mm Slide mass: 200 ± 2g (optional 500g)

2. Workbench size: 200 × 470mm

3. Total error of the force measurement system: less than ± 2%

4. Sliding speed: 100 ± 10mm/min

5. Test travel: 0-70mm

6. Force measurement range: 0-5N; 10N; 20N；30N； 50N optional

7. Power supply: 220V, 50HZ

8. Dimensions: 480mm × 320mm × 300mm

9. Weight: 35 kilograms

Standard configuration: Host, mini printer, 200g slider, 500g slider

According to standards: GB 10006, ISO 8295, ASTM D1894, TAPPI T816
