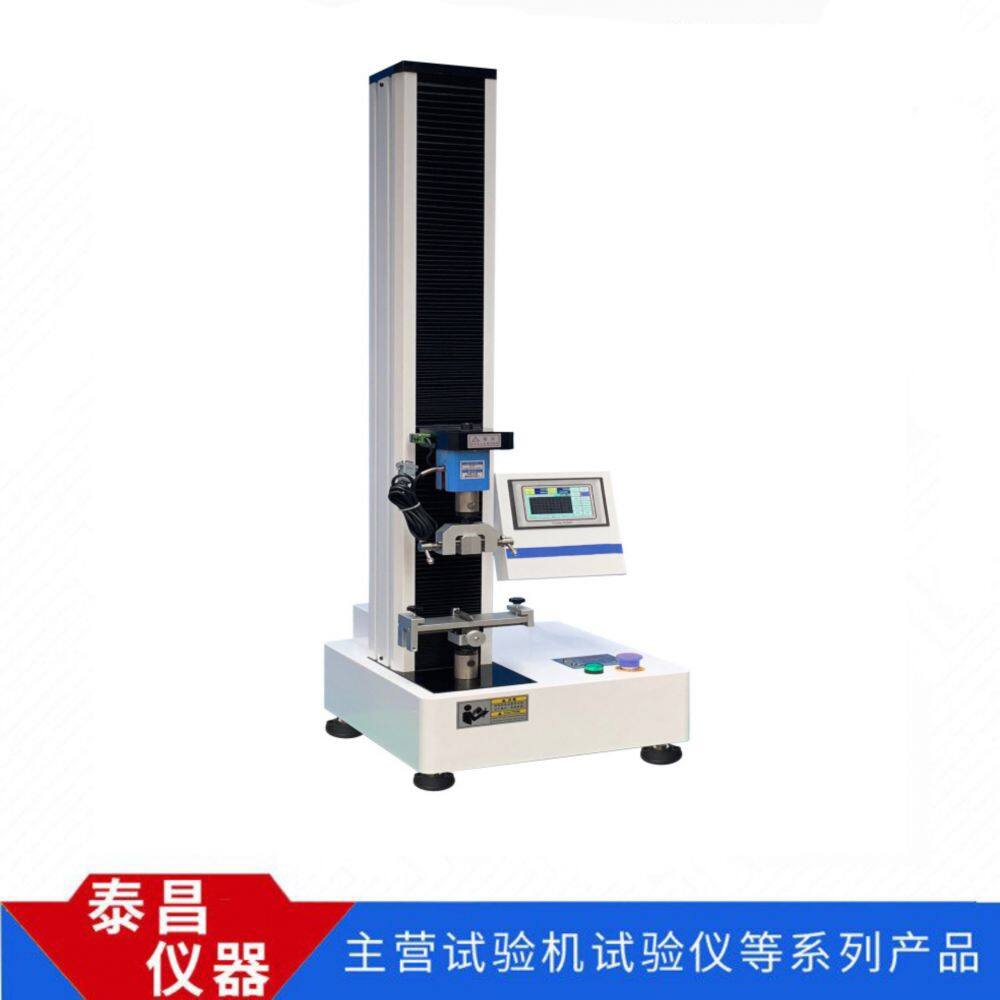

Degradable Plastic Bags, Wires, Cables, Metal Wires, Electronic Tensile Testing Machine

Product Introduction

TC-DLSA is a new high-precision intelligent testing instrument developed by our company in accordance with relevant national standards, which adopts modern mechanical design concepts and microcomputer processing technology for careful and reasonable design

Product Features

1. Dot matrix ultra large blue screen LCD displays data, results, and curves in full view;

2. Supported by professional software, the entire experimental process is controlled by a microcontroller and automatically returns to its original position;

3. Each function operates independently, with standard measurement units and no need for manual conversion;

4. Can perform statistical analysis on grouped samples, providing arithmetic mean, maximum value, and minimum value;

5. Menu style interface, convenient and fast selection of experiments, easy to learn, understand, and operate;

6. Parameter power-off memory and force overload protection function;

7. The output of test results can be set arbitrarily: maximum force value, elongation rate, maximum tensile strength, tensile strength at constant force, tensile strength at constant elongation, yield strength, and elastic modulus;

8. Power overload automatic protection function, thin film touch button, ultra long service life;

9. Can be used for tensile, compressive, tearing, tensile, compressive, bending, and shear tests (metal).

Product Application

The instrument is suitable for experiments on high-strength materials, such as nylon products, metal steel, etc

technical standard

The standard tensile test strength and deformation rate, tensile strength and deformation rate, and the instrument comply with national standards such as GB228-2002, GB/T16826-1997, GB528, GB532, etc.

Product parameters

name

LCD screen display electronic universal testing machine

Specification (KN)

1/5/10/20/50

structural style

gate

Load measurement range

1% -100% of maximum load

Load measurement accuracy

± 1% of the indicated value

Speed range (mm/min)

1-500mm/min (continuously variable transmission)

speed accuracy

±0.2%

Displacement measurement

Resolution 0.01mm

Force resolution

1/10000

clamp

One set of stretching attachments is standard, while other attachments are optional

Stretch space (mm)

six hundred

Dimensions (mm)

700×380×1650

Power Supply (kW)

zero point eight

Weight (kg)

four hundred and fifty

Product Configuration

One host, certificate of conformity, instruction manual, power cord, computer, printer,

Additional fixtures: stretching and compression fixtures
