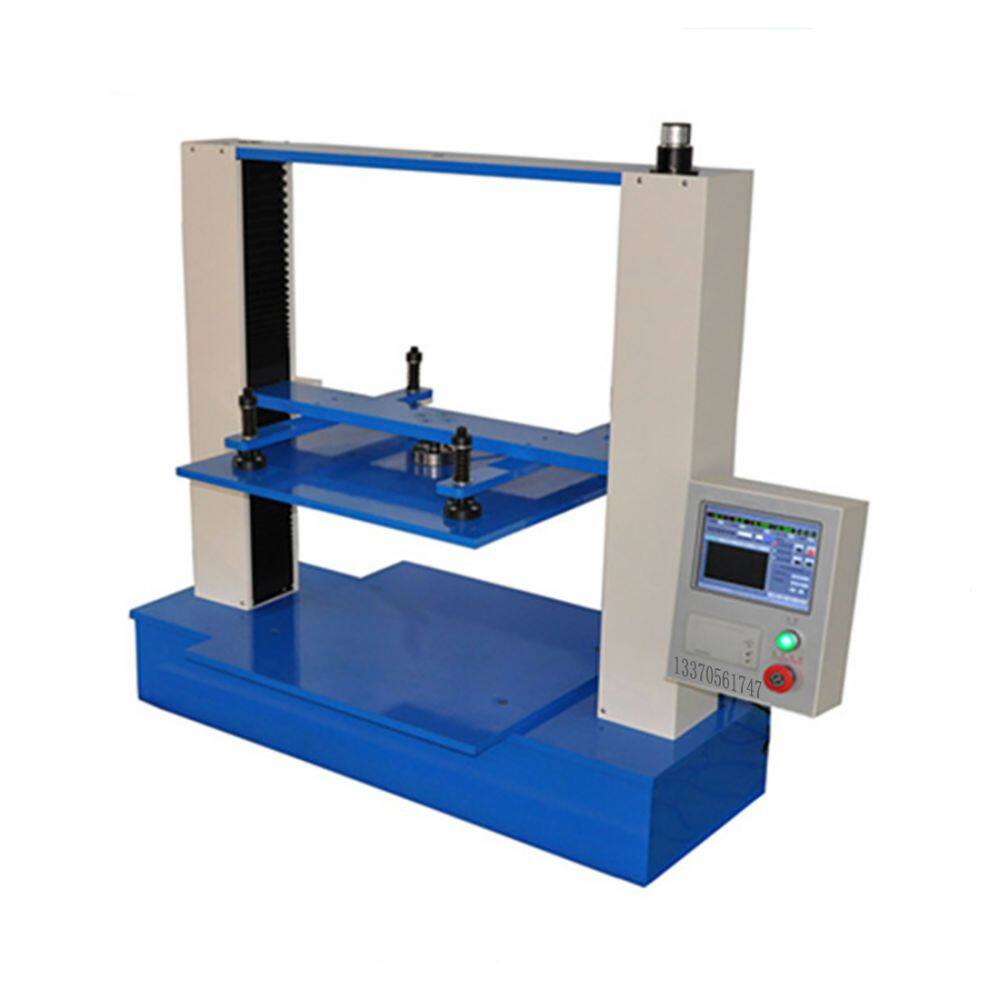

Intelligent Cardboard Box Pressure Tester, Packaging Cardboard Box Pressure Tester

Product Introduction

The paper corner protector/paper tube compressive strength tester is a testing instrument for testing the compressive strength performance of items. It is mainly suitable for the compressive strength, bending strength, various industrial paper tubes, and chemical fiber paper tubes of L-shaped paper corner protectors. It is an ideal testing equipment for production enterprises, quality testing institutions, and other departments. You can also test paper cups, paper bowls, oil drums, small packaging boxes, and other types of small containers.

FEATURES

★ Microcomputer processing system, PVC control panel, high degree of automation, fast data acquisition, automatic measurement, intelligent judgment function, and automatic completion of the test process.

★ It has data processing function and can directly obtain statistical results of various data

★ Intelligent configurations such as extreme travel protection, overload protection, etc. ensure user operation safety, equipped with a micro printer for convenient data printing and output

During the experiment, real-time display of pressure resistance and other information

★ Adopting high-precision motor control, with advantages such as high precision, low noise, and high speed; The instrument has precise positioning, fast speed response, saves testing time, and improves testing efficiency.

Compliant with standards

BB/T0023 paper corner protectors comply with the relevant standards for paper tubes and cores, as well as GB/T 2679.8-1995.

Technical Parameter

1. Maximum test force: 5KN (10 KN, 20KN, 50KN, optional).

2. Accuracy: First level accuracy

3. Test space size: 300 * 300 * 350mm (600 * 600 * 800mm, 800 * 800 * 1000mm, 1000 * 1000 * 1200mm, 1200 * 1200 * 1500mm can be customized)

4. Test speed: 12.7mm/min

5. The overall volume of the machine is approximately 1100 * 610 * 1550mm

6. The overall weight of the machine is 100kg

7. Power supply: 220V.

Standard configuration

One host, power cord, instruction manual.

choose and buy

Paper corner anti bending auxiliary device, paper corner anti compression auxiliary device.
