DAQ for IIOT General industrial data collection system is a set of equipment data collection and management software running on the edge computer, which is mainly used for the collection, control, storage, query, display and upload of various instruments and equipment (PLC, injection molding machine, CNC machine tools, electricity meters, flow meters, etc.) data.
System main body functions include:
l Flexible transport configuration (link, storage, device, factor, upload service)
l Data acquisition and upload

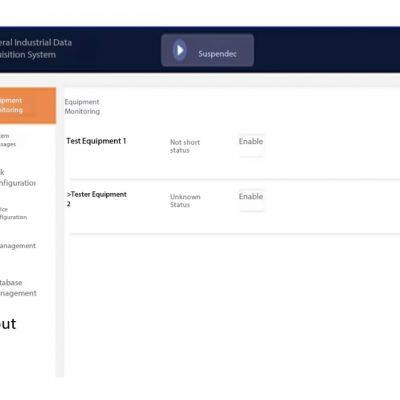

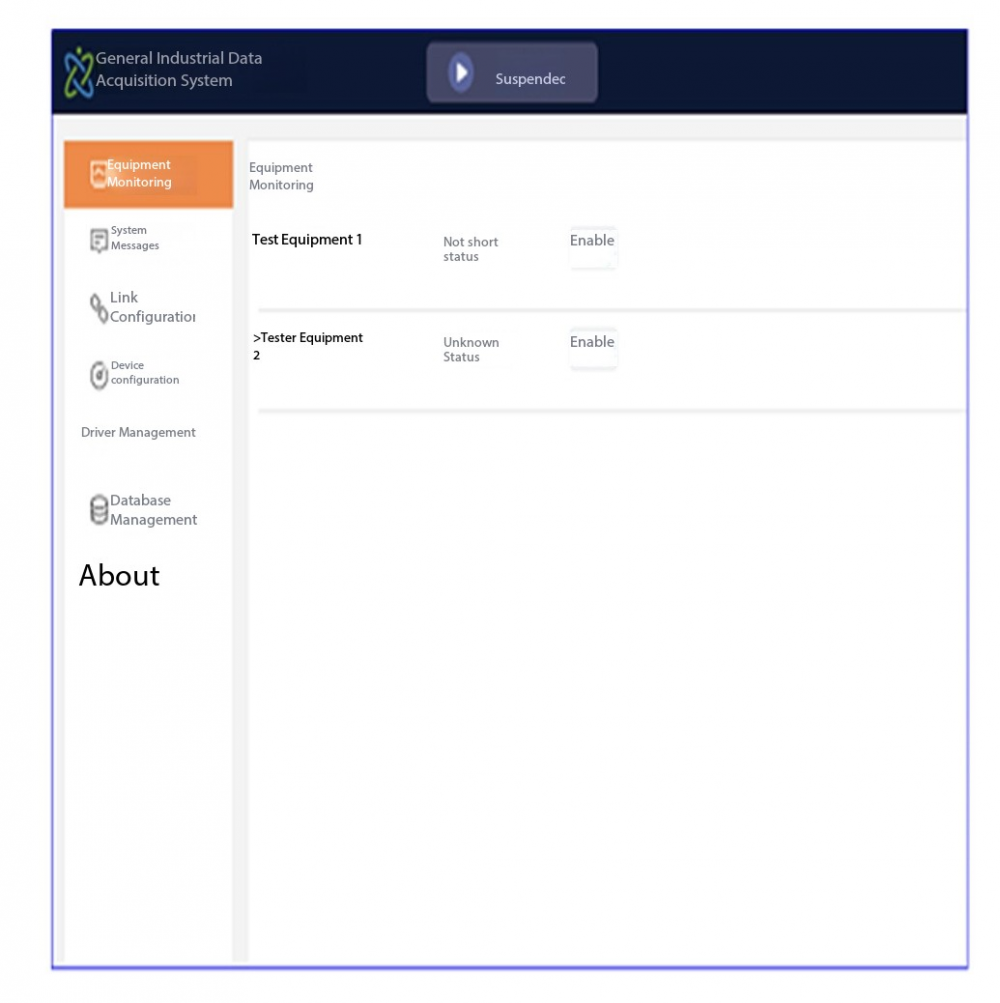

l Real-time monitoring (equipment, upload)
l Alert configuration and monitoring
l Data storage and queries (tables, chart, Web API)
l Configuration and visualization set
l User and rights management
l Interface multilingual support
1.1 Java runtime environment Java
project |
ask |
operating system |
Windows,Linux |
Software base environment |
.NET 6 |
Client Browser |
Edge, Chrome, Firefox, Safari, Opera, et al |
Acquisition system access address |
http://localhost:16801/scada.html |
Configuration visualization of the access address |
http://localhost:16804/diagram.html |
1.2 support equipment1.2.1 Support communication links

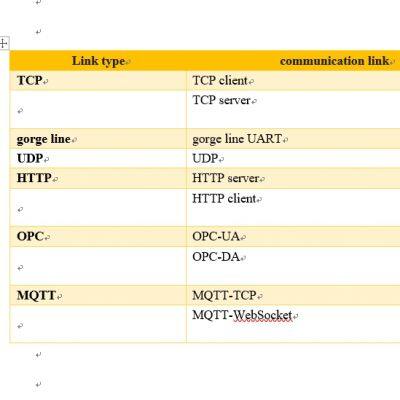

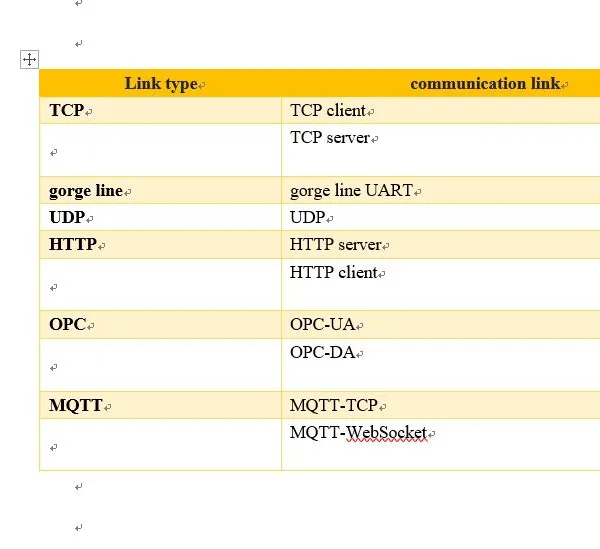

Some communication links supported by the system include:
Link type |
communication link |
TCP |
TCP client |
TCP server |
|
gorge line |
gorge line UART |
UDP |
UDP |
HTTP |
HTTP server |
HTTP client |
|
OPC |
OPC-UA |
OPC-DA |
|
MQTT |
MQTT-TCP |
MQTT-WebSocket |
1.2.2 Support communication protocols

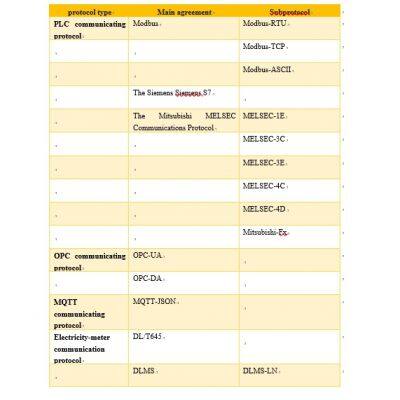

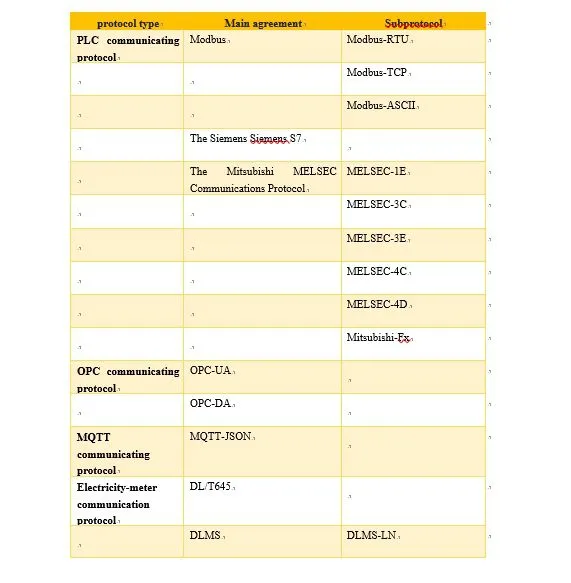

Some communication protocol supported by the system include:
protocol type |
Main agreement |
Subprotocol |
PLC communicating protocol |
Modbus |
Modbus-RTU |
Modbus-TCP |
||
Modbus-ASCII |
||
The Siemens Siemens S7 |
||
The Mitsubishi MELSEC Communications Protocol |
MELSEC-1E |
|
MELSEC-3C |
||
MELSEC-3E |
||
MELSEC-4C |
||
MELSEC-4D |
||
Mitsubishi-Fx |
||
OPC communicating protocol |
OPC-UA |
|
OPC-DA |
||
MQTT communicating protocol |
MQTT-JSON |
|
Electricity-meter communication protocol |
DL/T645 |
|
DLMS |
DLMS-LN |
|
DLMS-SN |
||
IEC62056-21 |
||
Edmi Command-Line |
||
IEC communicating protocol |
IEC103 |
|
IEC104 |
||
Environmental monitoring and communication protocol |
HJ212 |
|
SL651 |
||
SZY206 |
