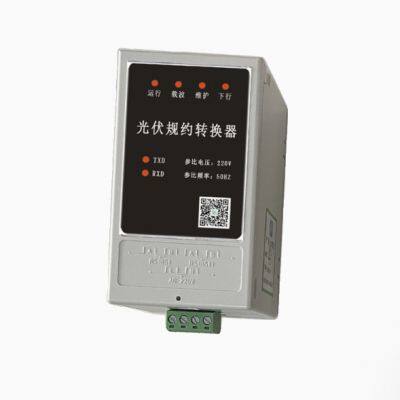

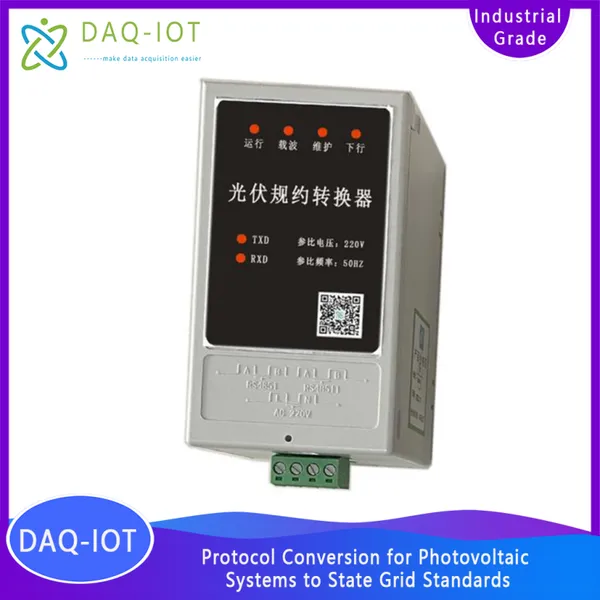

DAQ-GP-485HPLC photovoltaic protocol converter (hereinafter referred to as the converter) is designed by our company to meet the latest needs of the State Grid Corporation in the field of photovoltaic power generation . The photovoltaic protocol converter is a device that collects power generation and power consumption information of photovoltaic inverters. It is used to collect power information of multiple or single photovoltaic inverters and can exchange data with the concentrator.
1 Service ConceptOur company solemnly promises:
You buy not only the product, but also the meticulous and thoughtful technical support service ! ! ! ( =^_^= )
This product only needs ordinary workers to connect the power and install it on site! No debugging is required!
We provide free remote guidance, remote configuration and debugging services, and send data to the user's designated cloud platform.
Free IoT solution consulting services!
2 Implementation StandardsDL/T698.31-2010 "Electric Energy Information Collection and Management System Part 3-1 Technical Specifications for Electric Energy Information Collection Terminals - General Requirements"
DL/T698.35-2010 "Electric Energy Information Collection and Management System Part 3-5 Technical Specifications for Electric Energy Information Collection Terminals - Special Requirements for Low Voltage Centralized Meter Reading Terminals"
Q/GDW1375.3—2013 "Type Specifications for Electricity User Information Collection Systems Part 3: Type Specifications for Collectors"
Q/GDW1374.2—2013 Technical Specifications for Electricity User Information Collection System Part 2: Technical Specifications for Centralized Meter Reading Terminals
Object-oriented communication protocol for electricity consumption information collection
"State Grid Shandong Electric Power Company Technical Specifications Solidified Distributed Photovoltaic Communication Protocol Converter Communication Interface Adapter"
"Technical Specifications for Interoperability of Low Voltage Power Line Broadband Carrier Communications"

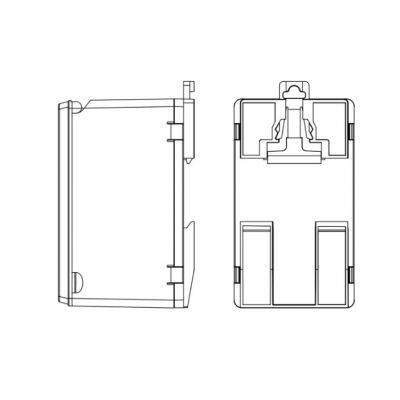

3 Product characteristic parameters3.1 Structural characteristicsl Installation method: rail type
l Material: PC plastic (shell)
l Size: 108mm*62mm*70mm
3.2 Electrical Characteristicsl Power supply: AC220V
l Working power consumption: less than 5W
3.3 Working environment characteristicsl Temperature -25 ℃ ~70 ℃ , extreme temperature -40℃~70℃
l Relative humidity: 10%~100% (no condensation)
3.4 Indicator light characteristicsrun | The operating status indicator light is red. If the light flashes alternately for one second and then off for one second, it means the converter is operating normally. If the light is always off, it means there is no power. |
Carrier | The carrier communication status indicator light is red and green. The flashing red light indicates that the converter carrier channel is receiving data, and the flashing green light indicates that the converter carrier channel is sending data. |
maintain | Maintenance status indicator light, red and green. Flashing red light indicates that the converter maintenance channel is receiving data, and flashing green light indicates that the converter maintenance channel is sending data. |
Downside | Downlink communication status indicator light, red and green, flashing red light indicates the converter downstream channel is receiving data, flashing green light indicates the converter downstream channel is sending data. |

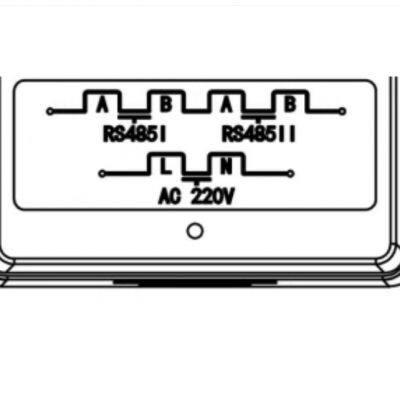

l Equipped with 2 RS485 ports, used to connect to the RS485 port of the energy meter or the photovoltaic inverter interface
l With low voltage power line carrier, used to forward the communication commands of the concentrator
l With Bluetooth communication for on-site maintenance
3.6 Communication networking featuresThe network is formed by carrier or dual-mode . Depending on the carrier or dual-mode technology adopted, two working modes are supported: working with address and working without address.
