Help CenterModBus RTU Infrared Electric Meter Reader Converts DLT645/698 to ModBus Protocol, 38kHz, RS485
Related Products
-
High-Precision Power Quality Analyzer - Measures Harmonics, Voltage Fluctuation, Three-Phase UnbalanceUS$ 215MOQ: 1 Piece -
Low-Power Battery Wireless Current Sensor- Micropower, GPRS/NB-IoT/LoRa, Non-Intrusive AC Current MonitorUS$ 119MOQ: 1 Piece
-
Wireless Temperature and Vibration Sensor With 4G NB WIFI for Predictive Maintenance of Motors & BearingsUS$ 175MOQ: 1 Piece
-
Industrial 4G Wireless PH Sensor Terminal Remote Monitoring Multi-Protocol Support (MQTT/TCP)US$ 115MOQ: 1 Piece
-
Multi-Circuit AC Wireless Voltage & Current Sensor 4G RS 485 Remote Power Monitoring for Smart IoTUS$ 255MOQ: 1 Piece

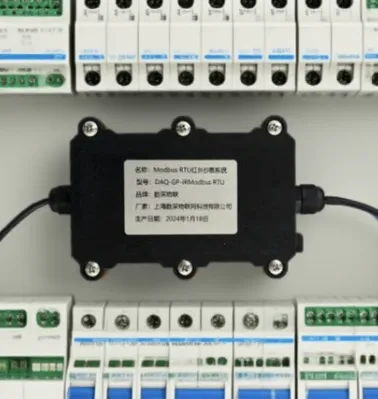

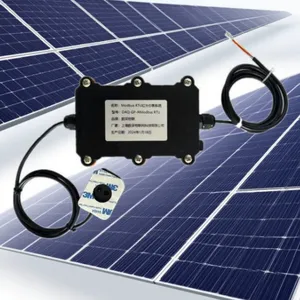

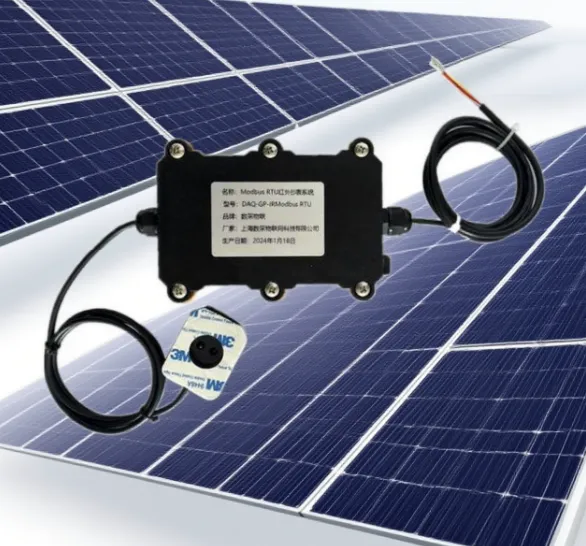

The DAQ-GP-IRMODBUSRTU infrared meter reading terminal, developed by Shanghai Data Acquisition IoT Technology Co., Ltd., is a device that converts State Grid electric meters such as DLT645/698 into the ModBus communication protocol. It can collect electrical energy data, voltage, current, power factor, and other electrical parameters from State Grid meters.
Overview of Infrared Meter Reading Principle: The infrared photoelectric probe periodically reads parameter information from the smart meter via the infrared optical port and uploads the data. The infrared meter reader features infrared signal modulation and demodulation functions, modulating binary digital signals into a 38 kHz frequency pulse sequence and driving the infrared emitting diode to transmit these as infrared light pulses. The transceiver converts received optical pulses into electrical signals, which are then amplified and filtered before being sent to the demodulation circuit for demodulation. The signals are restored to binary digital form, parsed into data packets, and converted into the ModBus protocol, enabling reading by other host computer software.
This terminal supports meter reading scenarios for various instruments equipped with infrared communication interfaces, such as electric meters and gas meters. It is suitable for electric energy meter data acquisition, smart city data acquisition, power monitoring data acquisition, energy-saving and emission reduction data monitoring system acquisition, energy consumption monitoring system data acquisition, photovoltaic system data acquisition, intelligent monitoring data acquisition, robot data acquisition, smart security system data acquisition, and cloud platform system data acquisition. Electric Energy Meter Verification and Testing Platform; particularly suitable for photovoltaic power generation system meter reading and State Grid electric meter main meter reading under fully sealed lead seal conditions, where no seals may be opened.
1 Service PhilosophyOur company solemnly guarantees:
You are purchasing not only a product but also meticulous and comprehensive technical support services !!! ( =^_^= )
This product can be installed on-site by ordinary workers with only electrical connection required; no debugging is necessary!
We provide free remote guidance and remote configuration debugging services, transmitting data to the user-designated cloud platform.
Free consultation services for IoT solutions are available!
2 Applicable Standards《 Q/GDW1365—2013 Technical Specification for Security Certification of Smart Electric Energy Meter Information Exchange 》 State Grid Standard
Multifunctional Electric Energy Meter Communication Protocol DLT645-2007 State Grid Standard
Three-Phase Smart Electric Energy Meter Type Specification Q/GDW1356-2013 State Grid Standard
3 Product Features and Specifications3.1 Acquisition Characteristicsl Infrared Carrier Frequency: 38 kHz
l Communication Baud Rate: 1200–115200 bps, adaptive according to electric meter communication parameters
l Infrared Communication Distance: ≤10 meters
l Communication Angle: ≤15 degrees
Infrared Communication Protocol: Compliant with IEC 62056-21 (IEC 1107) and DL/T-645-1997 and 2007 standards; supports Modbus protocol.
3.2 Electrical Characteristicsl Power Supply Mode: 5–24 V DC power supply
l Operating Power Consumption: less than 5 W
3.3 Operating Environmentl Temperature: -30°C to 75°C, Humidity: 0 to 95%
