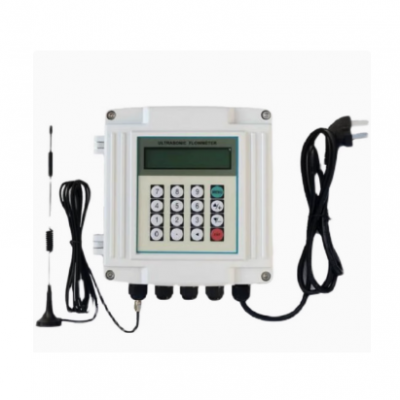

Wireless Clamp-on Ultrasonic Flow Meter Heat Meter With Remote Monitoring 4G WiFi Lora DN15-DN6000

DAQ -GP- UF 4G wireless clamp-on ultrasonic flowmeter is a universal ultrasonic flowmeter heat meter based on 4G wireless transmission and AC/DC wide voltage power supply launched by Shanghai Shucai IoT Technology Co., Ltd. It can collect instantaneous flow and instantaneous heat flow in the pipeline. Compared with traditional flowmeters, clamp-on ultrasonic flowmeters have the advantages of convenient and quick installation, no need to cut off the pipe to stop the flow, and truly realize lossless online installation.

Wireless clamp-on ultrasonic flowmeter heat meter supports 4G/WiFi/ LoRa communication, which can greatly simplify on -site deployment time and reduce construction costs. It is widely used in heating industry, water supply, heat metering and charging, water treatment industry, fuel oil, light oil, chemical industry and other industries.

Our company solemnly promises:

You buy not only the product, but also the meticulous and thoughtful technical support service ! ! ! ( =^_^= )

This product only needs ordinary workers to connect the power and install it on site! No debugging is required!

We provide free remote guidance, remote configuration and debugging services, and send data to the user's designated cloud platform.

Free IoT solution consulting services!

l Measuring range: DN15~6000 (pipe diameter)

l Measuring medium: water, seawater, industrial sewage, acid and alkali solution, alcohol, beer, various oils and other single and uniform liquids that can conduct ultrasonic waves

l Accuracy: ±1%

l Display: 2x20 character LCD display

l Power supply: 9-36 V DC power supply /220V AC power supply

l Working power consumption: 1~2 W

l Wireless transmission method: NB-IOT/LoRa/WiFi

l Communication protocol: MQTT/TCP/UDP/HTTP/SSL/ModBus RTU, other protocols can be customized

l Data forwarding: any public network server

l Number of server centers: Supports reporting data to up to 7 cloud servers at the same time.

l Heartbeat packet: supports custom heartbeat packets, which can be set to signal strength.

l Registration package: supports custom registration package, which can be set to IMEI code.

l Positioning: Support LBS base station positioning, convenient for querying device location.

l Signal output:

1 channel 4~20mA current output, impedance 0~1K

1 channel 0CT pulse output (pulse width default 200ms)

1 relay output

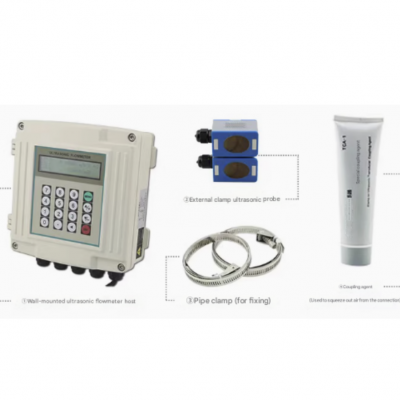

Ultrasonic flow meter = host + ultrasonic sensor

Ultrasonic heat meter = host + ultrasonic sensor + temperature sensor

l Antenna type: External suction cup antenna

l Material: high-grade aluminum alloy shell

l Main protection level: IP6 5

l Sensor protection level: IP68

l Main installation method: wall mounting

l temperature

Host: -20 °C ~ +60 °C ; Flow sensor: -30 °C ~ +160 °C

l humidity

Host: 85% RH; Flow sensor: Can work in water, water depth <2m (Note: After the sensor is glued)

v flexible installation , fast deployment, the sensor can be installed in pipe segments, insertion or external clamping

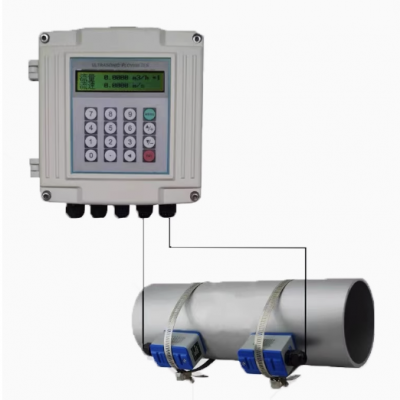

v The probe is adsorbed on the outer wall of the pipe, without the need to cut off the flow at the end of the pipe

v Supports custom registration packages and heartbeat packages to facilitate platform differentiation of devices.

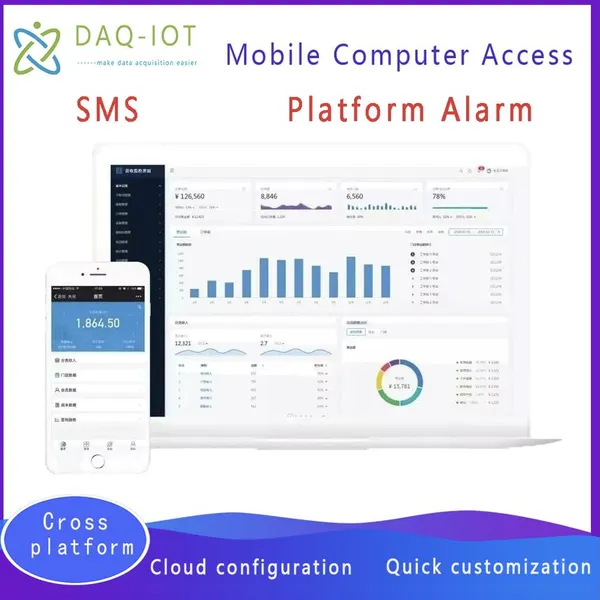

v Support any IoT cloud platform and configuration software, and provide data protocol docking

v Supports mainstream cloud platforms such as Alibaba Cloud, Baidu Tiangong, OneNet, and Tencent Cloud

v Non-intrusive collection, does not affect the normal operation of the equipment

v Support remote configuration parameters and FOTA remote upgrade to minimize the personnel cost of on-site construction and maintenance
