Help CenterMicropower Wireless Temp & Pressure Sensor With Remote Data Reporting for Pipeline Pressure Temperature
Related Products
-
Intelligent Measurement Control Device for Transformer for Photovoltaic Wind Power Booster Stations With RemoteUS$ 280MOQ: 1 Piece -
Industrial Edge Computing Gateway Communication Management Machine With Multi-Protocol Support ( RS485 RS232 Ethernet 4G WiFi )US$ 210MOQ: 1 Piece
-
Ethernet Infrared Meter Reader DLT645 to JSON for Smart Electricity MetersUS$ 115MOQ: 1 Piece
-
Smart Energy Management Gateway Multi-Protocol Data Acquisition & Remote Monitoring for Smart Grid & Renewable Energy SystemsUS$ 280MOQ: 1 Piece
-
All in One 5G Converged Terminal AGC AVC Control Data Acquisition Encrypted Transmission for Smart Grid Distributed PVUS$ 4750MOQ: 1 Piece

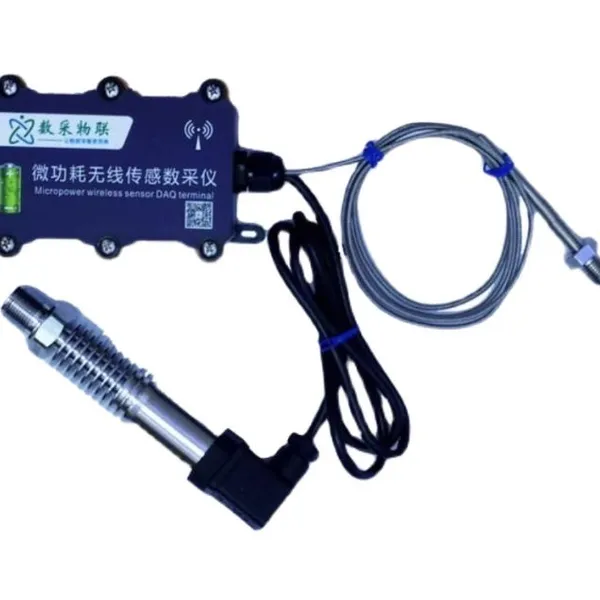

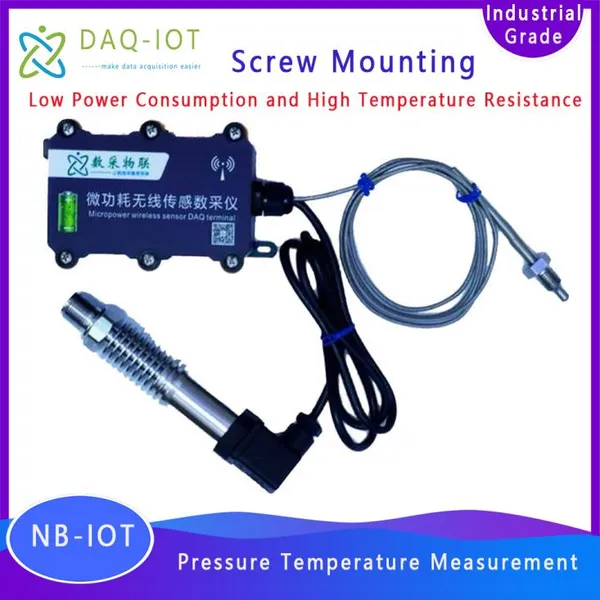

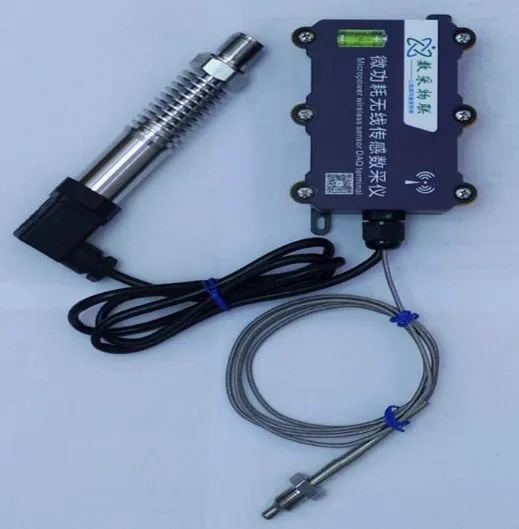

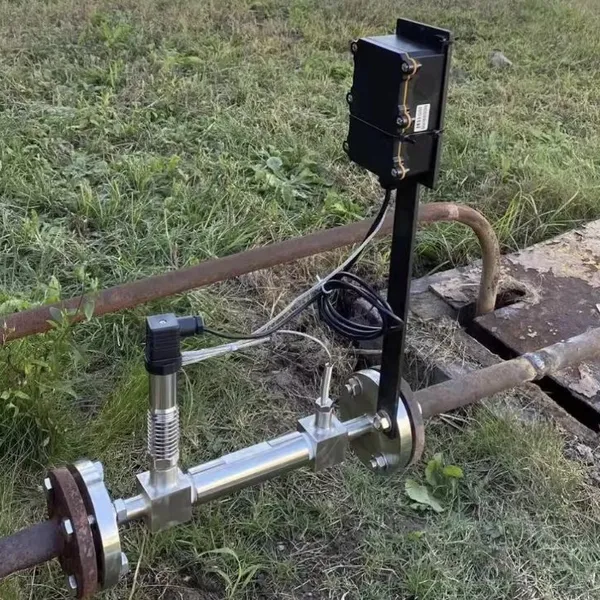

SC-LP-PTNB is a high temperature resistant wireless temperature and pressure sensor terminal developed by Shanghai Shucai IoT Technology Co., Ltd. It is mainly used for temperature and pressure measurement of high temperature pipelines. It can report data to the designated platform server wirelessly at regular intervals.
The terminal adopts GPRS/NB-IOT/LoRa communication mode to overcome the wireless communication obstruction caused by the special environment on site, greatly simplifying the on-site deployment time and reducing construction costs . The working status of the equipment is divided into three states: sleep, collection and storage, and activation and reporting.
1 Ordering specifications and selectionmodel |
Features |
|
SC-LP- PTNB SC-LP -PTLoRa |
Battery powered, suitable for occasions with low acquisition frequency and difficulty in external power supply. NB-IOT/LoRa transmission mode. |
Our company solemnly promises:
You buy not only the product, but also the meticulous and thoughtful technical support service ! ! ! ( =^_^= )
This product only needs ordinary workers to connect the power and install it on site! No debugging is required!
We provide free remote guidance, remote configuration and debugging services, and send data to the user's designated cloud platform.
Free IoT solution consulting services!
3 Product Features3.1 Acquisition characteristicsCollection type: pressure, temperature
Measuring range: 0-2.5mpa , -50-500 ℃ (other measuring ranges can be customized)
Collection frequency: 1 minute ~ 24 hours, support remote configuration
Accuracy grade: ± 2 %
Maximum input: 100% (continuous) / 150% (1 minute)
3.2 Electrical CharacteristicsPower supply: battery powered/12V
Battery capacity: 3.6V*19Ah
Standby power consumption: less than 5uA@3.6V
Working power consumption: 2 ~ 3mA@3.6V
Transmitting power consumption: 50 ~ 100mA@3.6VV
3.3 Communication characteristicsAntenna type: built-in antenna
Transmission mode: 4G /NB-IOT/LoRa
Communication protocol: mqtt/ http post active push
Data forwarding: any public network server
Data reporting method : 1. Report when the collected temperature and pressure fluctuations are ≥ the set value; 2. Report the current measurement value at the set interval
3.4 Structural characteristicsMaterial: PC plastic (shell)
Main protection level: IP65
Main body size: 120mm×78mm×50mm
Transformer probe structure: threaded
Main installation method: wall hanging or screw fastening
Transformer probe installation method: plug-in installation
3.5 Work EnvironmentTemperature -25°C ~ 75°C, humidity 0 ~ 95% (non-condensing)
4 Micro power operation modeThe wireless temperature and pressure sensor terminal achieves power saving by working intermittently. The device is in standby mode most of the time, and only a very small part of the circuit continues to work to maintain micro-power consumption. This part of the circuit will ensure the correct operation of the system time and the correct recording of the next activation time.
Calculation of daily power consumption of the device : The daily working state is divided into: standby state and working state (waking up to collect data and uploading data via 4G /NB-IOT ), corresponding to the power consumption data of different states
5 Core advantages of productsØ Comes with its own battery, no wiring required
Ø Simple installation and quick deployment help IoT projects to be implemented quickly
Ø Support any IoT cloud platform and provide data connection
Ø The whole machine is waterproof and moisture-proof to meet the working requirements in harsh environments
Ø Support remote configuration to minimize on-site maintenance costs
