Industrial Interval Wireless Camera With WiFi/ Photo Transmission, Storage, and Time-Lapse for Plant Growth Recording

DAQ-GP-CAM is a wireless time-lapse camera based on 4G or WiFi, which can take pictures at certain intervals and upload to FTP server, launched by Shanghai Data Acquisition IOT Technology Co., Ltd. It can be widely used to capture the data of instruments, and can also be used for photo capture and video surveillance in the fields of cultural relics, rock and soil, hydrology and water conservancy.

This product supports WiFi/4G Ethernet access to the network, take photos regularly and upload the photos to the designated FTP server or store them in an SD card. With 4G wireless network card, it can be used in scenarios where there is no WiFi network outdoors.

2 Service Concept

Our company solemnly promise you:

You buy more than just products, but also meticulous and thoughtful technical support.

We provide free remote guidance, remote configuration and commissioning services, and send data to the server specified by the customer.

Free IOT solution consulting services!

3 Product Characteristic Parameters

3.1 Camera Parameters and Selection

Pixels: 2 million, 3 million, 5 million optional, default 2 million

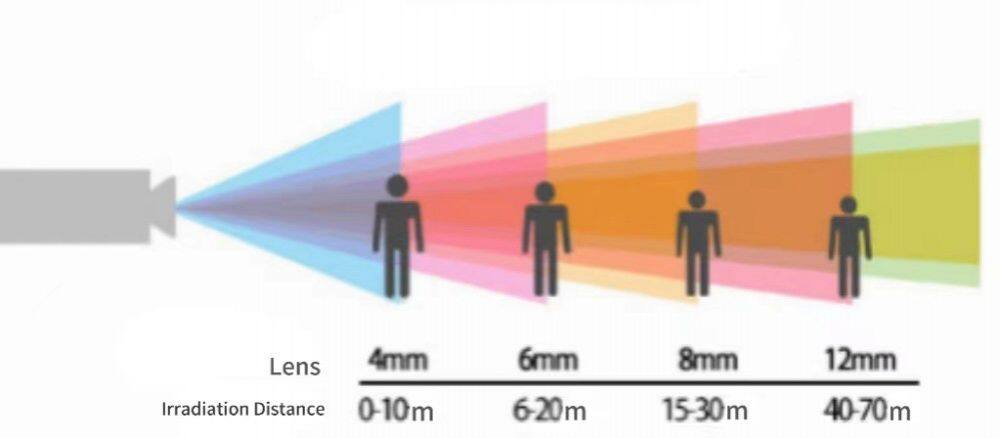

Lens: 2.8mm/4mm/6mm

SD card：Yes

Power supply: 12V DC

Weight: 0.35kg

3.2 Electrical Characteristics

Power supply mode: 12V DC or battery power

(Power interface: DC5.5*2.1mm female socket, internal positive and negative outside).

3.3 Communication Characteristics

Default networking mode: Ethernet/WiFi, 4G

Image upload: FTP server

3.4 Structural Characteristics

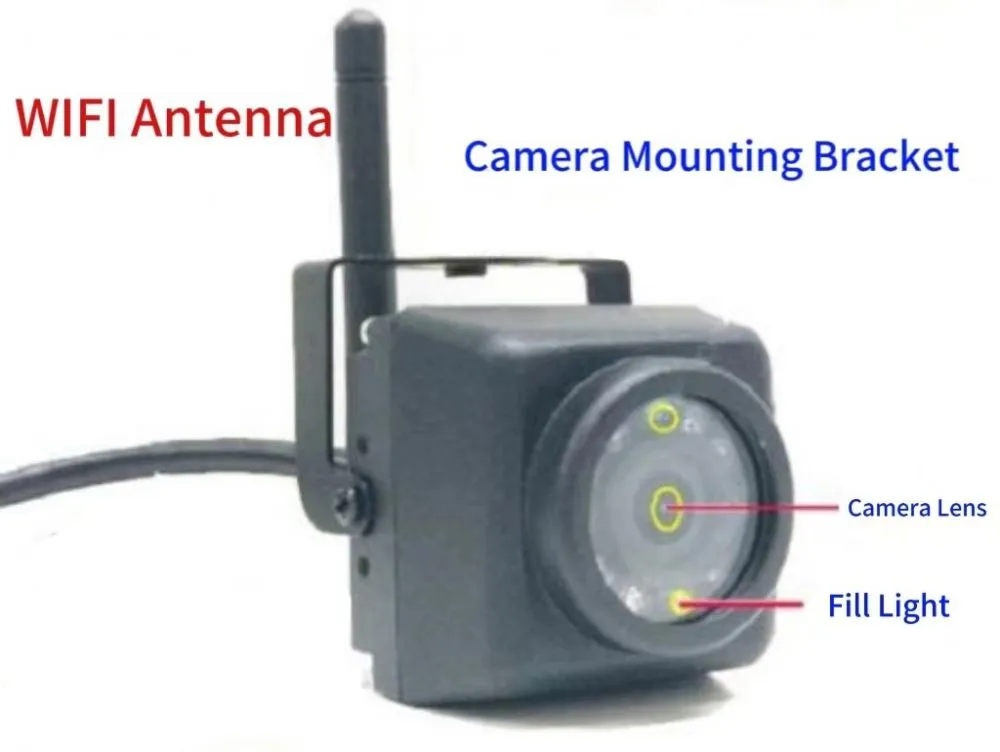

Antenna type: glue stick type external antenna

Material: PC plastic (shell)

Main body protection level: IP65

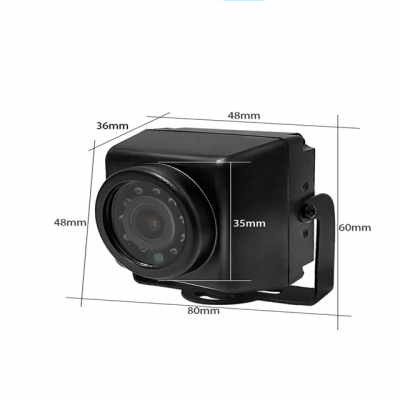

Size: 50mm×50mm×30mm

3.5 Working Environment

Ambient temperature -30°C~70°C, humidity 0~95% (non-condensing)
