Loop Powered Voltage Signal to 4-20mA V/I Signal Converters

Loop Powered Voltage Signal to 4-20mA V/I Signal Converters thumbnail-1
Loop Powered Voltage Signal to 4-20mA V/I Signal Converters thumbnail-2
Loop Powered Voltage Signal to 4-20mA V/I Signal Converters thumbnail-3
Loop Powered Voltage Signal to 4-20mA V/I Signal Converters thumbnail-4
Loop Powered Voltage Signal to 4-20mA V/I Signal Converters photo-1
Loop Powered Voltage Signal to 4-20mA V/I Signal Converters photo-2
Loop Powered Voltage Signal to 4-20mA V/I Signal Converters photo-3
Loop Powered Voltage Signal to 4-20mA V/I Signal Converters photo-4
US$ 18 - 20 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Sunyuan technology.
Place of Origin:
China
Model Number:
ISO V-4-20mA
Contact Supplier Request Quote Chat Now
Shenzhen Sunyuan Technology Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
yantian
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sunyuan technology.
Place of Origin China
Model Number ISO V-4-20mA
Type DC/DC Converters
Weight 12 g
Output Power 1 - 50W
Output Type Single
Output Current 5V, 12V, 15V, 24VDC etc.
Output Voltage 4-20mA
Input Voltage 0-5V, 0-10V, 0-75mv, 0-2.5V

Loop Powered Voltage Signal to 4-20mA V/I Signal Converters


Features:
1. Unique high efficient signal loop power extraction technique, external power supply is not required.
2. 2-wire V/I conversion, 3KVDC isolation between signal input and output.
3. DC voltage signal input, loop powered 4-20mA output.
4. Input potentio-meter signal: 0-2KΩ / 0-5KΩ / 0-10KΩ,etc. Input standard voltage signal: 0-5V/0 10V/1-5V/0-75mV,etc.
5. Input terminal can provide distribution power (5V/3mA) regulated power supply for functions extension.
6. High accuracy and linearity in full measuring range, non-linearity error grade 7. Micro size (33X10.5X15.5mm), error grade: 0.1, 0.2.
8. SIP7 Pin PCB-mounted, UL94V-0 flame-retardant package.
9. Industrial operating temperature range: -40 ~ +85 ºC.

Applications:
1. Displacement signal, potentiometer signal data acquisition isolation and control.
2. PLC/DCS directly gathers voltage signals from sensor.
3. Converts weighing mV signal into standard 4-20mA analog signal.
4. Interference rejection of industrial field ground.
5. Pressure signal acquisition and distribution
6. Sensor voltage signal acquisition and long-term distortion-less transmission
7. Bridge (weighing) detecting circuit voltage signal distribution and transmission
8. Voltage signal to passive 2-wire 4-20mA current signal isolated conversion: 1-input 1-output, 2 input 2-output, 3-input 3-output.

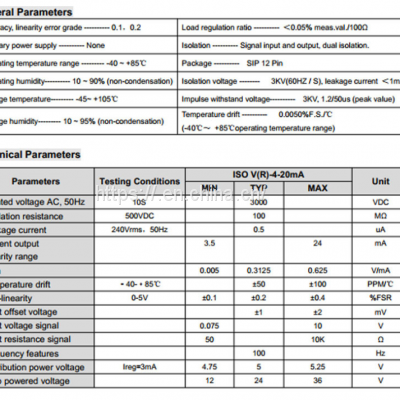

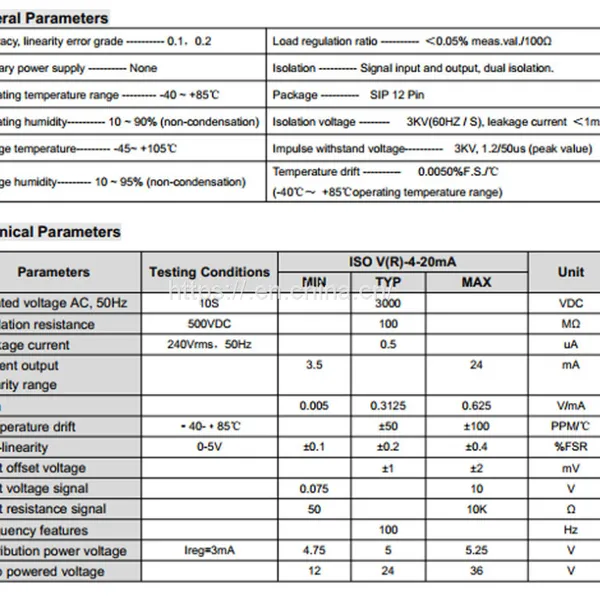

Specification:

Item Loop Powered Voltage Signal to 4-20mA V/I Signal Converters
Model No. ISO V-4-20mA
Input 0-5V, 0-10V, 0-75mv, 0-2.5V
Output 4-20mA
Power supply Powered by current loop
Isolation voltage 3KVDC isolation between input and output
Package Sip 12
Optional package type DIN rail mounted type



Product Tags: Power Supply , Converter , Power Inverter , Signal Conditioning , Isolation Amplifier , signal converter , signal isolation , Signal Amplifier , Analog Isolator
