Home > Electrical & Electronics > Electrical Control System > ABB GJR2370400R1040 88TK02B-E Control Module

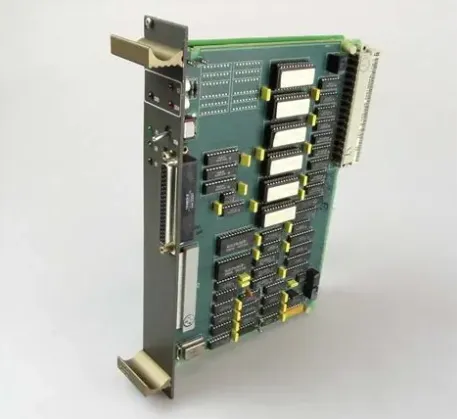

ABB GJR2370400R1040 88TK02B-E Control Module

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

guizhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -25℃-75℃

Relative Humidity 5%-95% (non-condensing)

Dimensions 220mm×160mm×85mm

I. Overview

The ABB GJR2370400R1040 88TK02B-E is a high-precision temperature acquisition and control module, belonging to the core I/O product family of the Advant OCS (Open Control System) series. Its core positioning is a "precision temperature acquisition and closed-loop control hub" for critical scenarios such as chemical reactors, industrial kilns, and thermal pipe networks. Integrating ABB's in-depth technologies in temperature measurement and process control, this module adopts a 24-bit high-precision Delta-Sigma ADC acquisition architecture, channel-level thermal isolation design, and dual redundancy backup solution. It undertakes key tasks in industrial sites, including real-time high-precision acquisition of multiple types of temperature signals (e.g., thermocouples, resistance temperature detectors/RTDs), signal linearization processing, temperature threshold judgment, output of control commands, and feedback of equipment status. Meanwhile, it is equipped with high-speed bus communication functionality with ABB AC800M controllers and Safety Instrumented Systems (SIS), ensuring high-fidelity and low-latency interaction between temperature data and control systems.

As a dedicated temperature control module of the Advant OCS series, the 88TK02B-E GJR2370400R1040 is highly compatible with controllers, Human-Machine Interfaces (HMI), and actuators within the system. It can be directly embedded in standard I/O racks and enables millisecond-level data transmission with controllers via PROFIBUS-DP or PROFINET high-speed buses. Full-process operations such as channel signal type configuration, precision calibration, and fault diagnosis can be completed without additional temperature transmitters. It is widely used in key industrial fields such as chemical engineering, metallurgy, building materials, and food processing, providing reliable support for core processes including constant temperature control of chemical reactors, heating curve tracking of industrial kilns, temperature monitoring of thermal pipe networks, and precision temperature regulation of food sterilization equipment. It is a key core component for improving the temperature control precision of industrial processes, ensuring the stability of product quality, reducing energy consumption, and avoiding safety risks. The module features ultra-high temperature measurement precision, strong anti-interference capability, wide-range temperature adaptation, and convenient operation and maintenance. It can be adapted to harsh industrial environments such as high temperature, high humidity, and strong electromagnetic interference, significantly enhancing the reliability and operation and maintenance efficiency of process control systems.

II. Technical Parameters

Parameter Category	Specific Specifications	Detailed Description
Core Temperature Acquisition & Control Parameters	Number and Type of Channels	16 temperature acquisition inputs + 4 analog control outputs, with independent isolation for input/output channels; inputs support thermocouple and RTD signals, outputs support current and voltage control signals
	Temperature Input Characteristics	Thermocouple input: Type K, J, T, E, S, R, B (optional), measurement range: -270℃-1820℃, accuracy: ±0.1℃ (-50℃-500℃), ±0.2℃ (500℃-1200℃), ±0.3℃ (1200℃-1820℃); RTD input: PT100, PT1000, Cu50, Cu100 (optional), measurement range: -200℃-850℃, accuracy: ±0.05℃ (-50℃-200℃), ±0.1℃ (200℃-850℃)
	Control Output Characteristics	Current output: 4-20mA, 0-20mA (optional), accuracy: ±0.05% FS, load capacity: ≤600Ω; Voltage output: 0-10V, ±5V (optional), accuracy: ±0.05% FS, load capacity: ≥10kΩ; Output response time: ≤0.8ms, supporting PID closed-loop control signal output
	Sampling & Control Performance	Maximum sampling rate per channel: 500Hz; Synchronous sampling rate for 16-channel input: ≥100Hz; Built-in PID control algorithm, adjustable control cycle (10ms-1000ms), control accuracy: ±0.2℃
	Channel Protection Function	Input channels have overvoltage (24V), overcurrent (30mA), and open-circuit protection; Output channels have short-circuit protection and overload protection; Supports channel fault self-recovery and redundancy switching functions
Communication & Bus Parameters	Communication Interface	Standard PROFIBUS-DP interface; Supports PROFINET and EtherNet/IP interfaces (optional expansion card); Equipped with dual-bus redundancy function (automatic switch between main and standby buses)
	Communication Rate	PROFIBUS-DP: 9.6kbps-12Mbps adjustable; PROFINET: 100Mbps (full-duplex); Data transmission delay: ≤3ms
	Bus Protocol	Supports PROFIBUS-DP V1/V2, PROFINET RT, IEC 61158, and EtherNet/IP protocols; Compatible with mainstream controllers such as ABB AC800M, AC800PEC, and Siemens S7-1200/1500
Isolation & Anti-interference Parameters	Isolation Level	Between input channels and bus: 3kVrms (1 minute); Between output channels and bus: 3kVrms (1 minute); Between channels: 2kVrms (1 minute), in line with IEC 61131-2 standard
	Anti-interference Performance	Complies with IEC 61000-4 standard: ESD contact discharge ±12kV, air discharge ±15kV; Surge immunity: ±4kV (line-to-ground); EFT/B immunity: ±2kV (5kHz/50kHz); Radiated immunity: 20V/m (80MHz-2GHz); Equipped with thermocouple cold-junction compensation function, compensation accuracy: ±0.05℃
Power & Environmental Parameters	Power Supply Parameters	Input power: 24VDC (18VDC-32VDC wide-range adaptation); Power consumption: ≤22W; Equipped with overvoltage, overcurrent, and reverse connection protection functions
	Environmental Parameters	Operating temperature: -25℃-75℃; Storage temperature: -40℃-85℃; Relative humidity: 5%-95% (no condensation); Vibration resistance: 10-2000Hz, 15g (peak value); Protection class: IP20 (module itself), IP65 (optional junction box)
Physical & Installation Parameters	Dimensional Specifications	220mm×160mm×85mm (length×width×height), adapted to standard I/O racks of the ABB Advant OCS series
	Installation Method	35mm DIN rail snap-on installation, equipped with anti-vibration locking buckles; Front-end equipped with pluggable terminal blocks, supporting 0.75mm²-2.5mm² wire access; With anti-misplug, anti-drop design, and thermocouple reverse polarity protection

III. Functional Features

1. Compatible with Multiple Temperature Signal Types, Industry-Leading Measurement Precision

It adopts a highly adaptable design with 16 temperature acquisition inputs + 4 control outputs. Input channels can be independently configured via software into thermocouple (7 types including K, J, S) or RTD (4 types including PT100, Cu50) signals. Temperature sensors for different scenarios can be connected without hardware replacement, adapting to an ultra-wide temperature measurement range from -270℃ (low-temperature cold chain) to 1820℃ (industrial kilns). The core uses a 24-bit Delta-Sigma ADC chip combined with a low-drift reference source, achieving an ultra-high measurement accuracy of ±0.1℃ in the critical temperature range (-50℃-500℃)—far superior to similar industrial products (conventional accuracy ±0.5℃). A built-in thermocouple cold-junction compensation module with a compensation accuracy of ±0.05℃ effectively eliminates the impact of ambient temperature changes on measurement results. In the control of chemical reactors, the temperature inside the reactor is collected via K-type thermocouples with an accuracy of ±0.1℃, which can precisely maintain the reaction temperature within ±0.2℃ of the set value, ensuring sufficient reaction and product purity.

2. Channel-Level Thermal Isolation Design, Excellent Anti-Interference Capability

It adopts a dual-protection design of channel-level full isolation + thermal isolation. The isolation level between input/output channels and the bus reaches 3kVrms, and the isolation level between channels is 2kVrms, which can effectively block common-mode interference, ground loop interference, and heat conduction interference in high-temperature environments at industrial sites, avoiding the paralysis of the entire module due to a single channel fault. Input channels have 24V overvoltage, 30mA overcurrent, and sensor open-circuit protection. When a thermocouple is open-circuited, the module immediately issues an alarm, locks the current measurement value, and the output channel automatically maintains the last valid control signal to prevent production process out of control. Output channels have short-circuit and overload protection, and automatically recover after the fault is eliminated. It has passed the full-item anti-interference certification of IEC 61000-4 and has ESD protection capability of ±12kV contact discharge. In strong electromagnetic interference environments such as high-temperature furnace areas in metallurgical plants, the temperature measurement fluctuation is ≤±0.05℃, ensuring data stability.

3. Built-In PID Control Algorithm, Rapid Real-Time Control Response

The module has a built-in high-precision PID control algorithm, supporting positional and incremental PID adjustment. The control cycle can be flexibly configured within the range of 10ms-1000ms. Combined with an output response time of ≤0.8ms, it enables fast closed-loop control of temperature. It supports the PID parameter auto-tuning function—after starting auto-tuning via software, the module automatically optimizes the proportional gain (P), integral time (I), and derivative time (D) parameters based on the characteristics of the controlled object (e.g., reactor heat capacity, heating rate), eliminating the need for repeated manual debugging. It has a temperature setpoint ramp function, allowing the setting of heating/cooling rates (0.1℃/s-10℃/s) to adapt to scenarios requiring gradual temperature changes such as industrial kilns. In the control of building materials kilns, the opening of the burner valve is controlled by the module's built-in PID algorithm. During the process of raising the kiln temperature from room temperature to 1200℃, the heating rate deviation is ≤±0.2℃/s, and the temperature fluctuation during the constant temperature phase is ≤±0.3℃.

4. High-Speed Bus Communication & Synchronous Sampling, Efficient Data Interaction

It is equipped with a standard PROFIBUS-DP interface with an adjustable communication rate of 9.6kbps-12Mbps, and an optional PROFINET interface (100Mbps full-duplex) with a data transmission delay of ≤3ms, enabling high-speed data interaction with controllers such as ABB AC800M to meet the needs of multi-channel synchronous temperature monitoring. It supports synchronous sampling of 16 input channels with a synchronous rate of ≥100Hz, which can accurately capture the dynamic change relationship of temperatures at multiple measurement points, providing data support for the coordinated temperature control of complex processes. It is equipped with a dual-bus redundancy function that automatically switches between main and standby buses with a switching time of ≤1ms, ensuring uninterrupted temperature data transmission under extreme conditions. In thermal pipe network monitoring, 16 channels synchronously collect temperatures at different nodes and upload them to the controller in real-time via the PROFINET bus. The controller adjusts the opening of pumps and valves based on temperature differences, and the entire response process is ≤5ms, realizing balanced temperature control of the pipe network.

5. Comprehensive Diagnosis & Redundancy Functions, Significantly Enhanced Reliability

A built-in full-channel fault diagnosis system can real-time monitor fault states such as sensor open-circuit, short-circuit, reverse polarity, and over-temperature in input channels, as well as overload and short-circuit in output channels. Fault information (fault channel, type, timestamp) is uploaded to the controller and HMI via the bus, and the fault point is accurately located through local LED indicators. It supports sensor redundancy configuration—two sensors (e.g., dual thermocouples) can be connected to the same acquisition channel. The module automatically compares the deviation between the two signals, and when the deviation exceeds a set threshold, it issues an alarm and switches to the reliable signal. The power supply adopts an 18VDC-32VDC wide-range input design with overvoltage, overcurrent, and reverse connection protection, adapting to the fluctuating power environment of industrial sites. In food sterilization equipment, if one thermocouple fails, the module immediately switches to the backup sensor signal, ensuring that the sterilization temperature control is not affected. At the same time, fault information is uploaded, allowing operation and maintenance personnel to handle the fault offline.

6. Flexible Adaptation & Convenient Operation, Efficient Debugging

It supports increasing the number of input channels through expansion modules, with a maximum expandable capacity of 64 temperature acquisition inputs. When the production line is expanded, the main module does not need to be replaced to meet the demand, reducing upgrade costs. The bus interface supports compatibility with multi-brand controllers and can directly replace old temperature acquisition modules, adapting to controller systems such as Siemens and Rockwell, simplifying the transformation of old production lines. It adopts 35mm DIN rail snap-on installation, and the pluggable terminal blocks have an anti-misplug design. The module automatically provides protection without damage when the thermocouple polarity is reversed. It supports configuration via ABB Control Builder M software, with a built-in sensor database and typical process PID parameter templates. During debugging, templates can be directly called for quick commissioning. 16 channel status LED indicators are provided locally to intuitively display the operating status of each channel, allowing operation and maintenance personnel to quickly troubleshoot problems.

Product Tags: GJR2370400R1040 , 88TK02B-E
