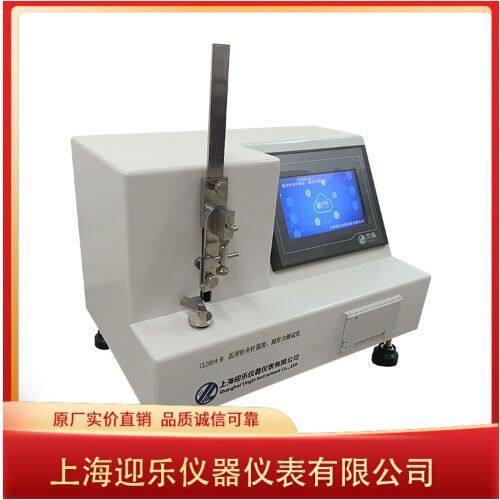

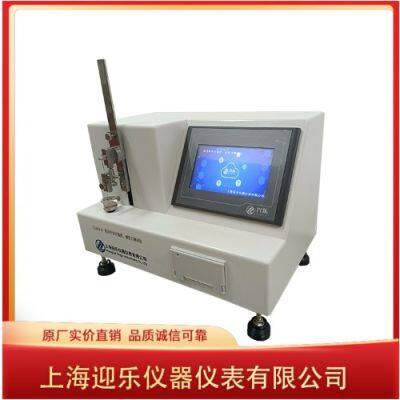

Medical acupuncture needle strength and puncture force tester
Technical Specifications:
Operation Interface: Simplified Chinese/English
Testing Standard: GB2024-2016 "Acupuncture needles"
Display: 7-inch K600+ core with matrix 65-color 800*480 resolution touch screen display, PLC control system dynamically displays the loading force value; Optional operation interface: Chinese/English/Bilingual switch; Digital closed-loop control, AD acquisition speed of 500KHz, internal code of 500,000; High-precision clock chip, power-off storage; Overload alarm shutdown protection; Touch operation: nominal specifications, test items, load to be applied, print, test, up, down, time, calibration, etc.
Programmable Logic Controller: PLC+ARM
Sensors: High-precision force sensors with hardware and software protection functions
Nominal Specifications: 0.1-0.8mm;
Set Number of Turns: 1-10 turns
Printing Method: On-board micro needle printer
Power Supply: AC90V-240V/50Hz
Net Weight: 10kg
Dimensions: 300×240×240 (mm)
Partial List:
1. Main unit one
2. Printing paper 1 roll
3. One-year warranty
4. Operating instructions one
5. Free lifetime upgrade service in accordance with national standards
Manufacturer introduction: Shanghai Yingle Instrument Co., Ltd. (formerly Shanghai Xingle Telecommunication Equipment Co., Ltd., established in 1993) is the earliest domestic manufacturer specializing in the production of disposable syringes and injection needle professional testing instruments. It is also the first (shou) company to obtain CMC certification. After nearly 30 years of market expansion, the company has become an industry-recognized professional supplier of all-round solutions integrating R&D, design, production, sales and service with its standardized management processes, advanced and cutting-edge production technology, innovative business philosophy, and high-quality and complete service system.
