PT100 Bearing Fault Simulator-alenian Machinery Fault Simulator

PT100 Bearing Fault Simulator-alenian Machinery Fault Simulator thumbnail-1
PT100 Bearing Fault Simulator-alenian Machinery Fault Simulator thumbnail-2
PT100 Bearing Fault Simulator-alenian Machinery Fault Simulator thumbnail-3
PT100 Bearing Fault Simulator-alenian Machinery Fault Simulator thumbnail-4
PT100 Bearing Fault Simulator-alenian Machinery Fault Simulator thumbnail-5

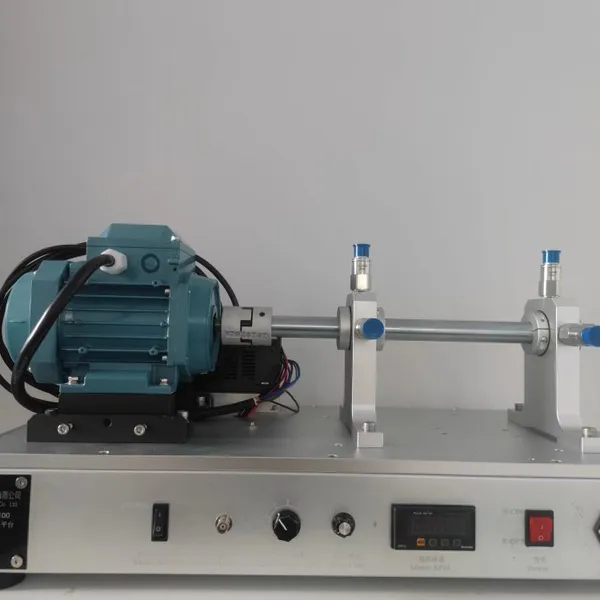

PT100 Bearing Fault Simulator-alenian Machinery Fault Simulator photo-1
PT100 Bearing Fault Simulator-alenian Machinery Fault Simulator photo-2

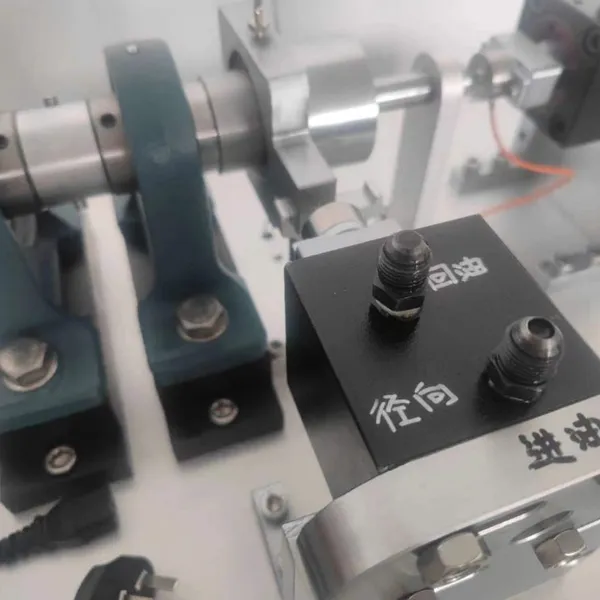

PT100 Bearing Fault Simulator-alenian Machinery Fault Simulator photo-3

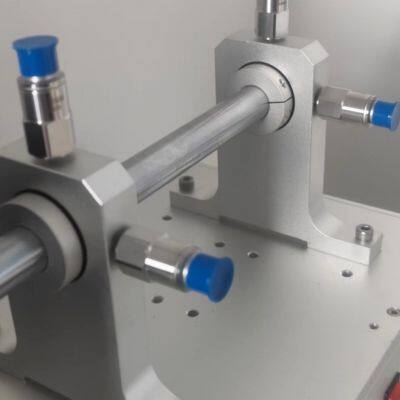

PT100 Bearing Fault Simulator-alenian Machinery Fault Simulator photo-4

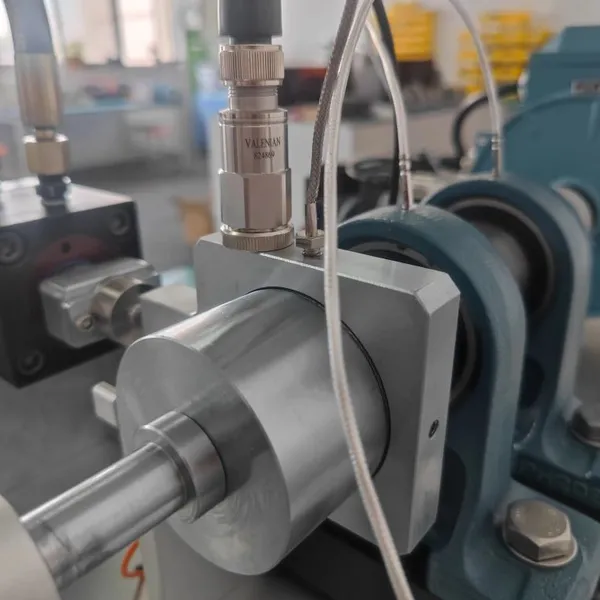

PT100 Bearing Fault Simulator-alenian Machinery Fault Simulator photo-5
US$ 2980 ≥1 Combo
Key Specifications
Get Latest Price
Certification:
ISO9001, CCC
Condition:
New
Customized:
Customized
Contact Supplier Request Quote Chat Now
Kunshan Hanjilong Measurement & Control Technology Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Certification ISO9001, CCC
Condition New
Customized Customized
Warranty 1 Year

Product Description：

The PT100 is powered by an ABB small three-phase asynchronous motor, regulated in speed through a frequency converter. Various types of bearings, each with distinct faults, are employed to assess the frequency patterns of bearing defects across varying speeds. Testing is performed either individually or in various defect combina tions within a secure and manageable setting. Serving as an innova tive platform for investigating the fault features of rotating machin ery, it effectively fulfills the diverse requirements of both educational
simulations and scientific research users.

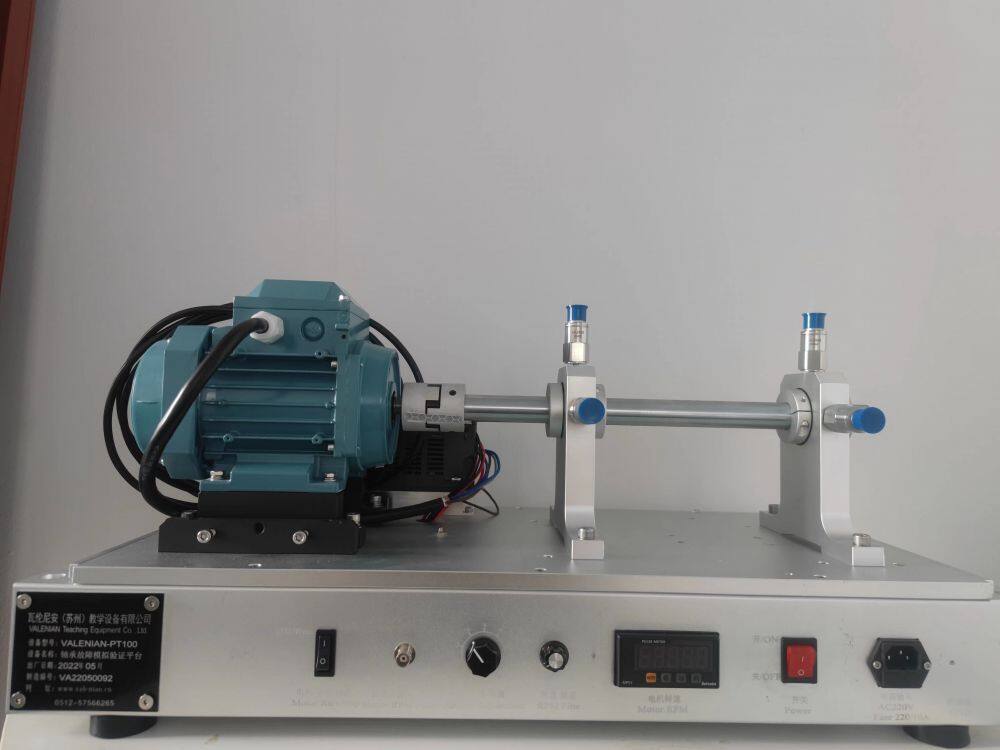

微信图片_202205242126064

Configuration：

The test bench is mainly composed of a drive motor,  a frequency converter, dual support bearings, a  shaft, a foundation base, a control unit, etc.


Function：

•Fault bearing simulation: bearing inner race fault, bearing outer race fault, bearing rolling element fault, bearing cage fault, and comprehensive bearing fault.

•Common mechanical failures: mechanical looseness,  improper testing.

•Identification of bearing fault frequency at different speeds.


Basic Technical Parameters：

Item

Description

Drive motor power

ABB 370W，110/220V

Axis size

Diameter 25mm, Chrome plated rust prevention

Rolling bearing

PH205 deep groove ball rolling bearing, inner diameter 25mm, integrated bearing assembly with connected seats, convenient for replacing faulty bearings

Type of faulty bearing

Inner race fault, outer race fault, cage fault, rolling element fault, comprehensive fault

Rotation adjustment range

0-3600 rpm

Safety protection

Equipped with acrylic protective cover and magnetic switch, open the cover for shutdown protection during operation

Size

730mm*310mm*330mm



Product Tags: Machinery diagnosis Simulator , Vibration Analysis Training System , Machine Vibration Analysis Trainer
