Help CenterSAT500 Shaft Alignment Trainer Portable Vibration Simulator
Related Products
-
PT100 Bearing Fault Simulator-alenian Machinery Fault SimulatorUS$ 2980MOQ: 1 Combo -
PT300 Machinery Fault Simulator–LiteUS$ 3980MOQ: 1 Combo
-
PT300PRO Machine Vibration SimulatorUS$ 2980MOQ: 1 Combo
-
PT500mini Machinery Fault SimulatorUS$ 3799MOQ: 1 Combo
-
PT400 Vibration Demo Equipment Gear Fault SimulatorUS$ 3599MOQ: 1 Combo
Product Description：

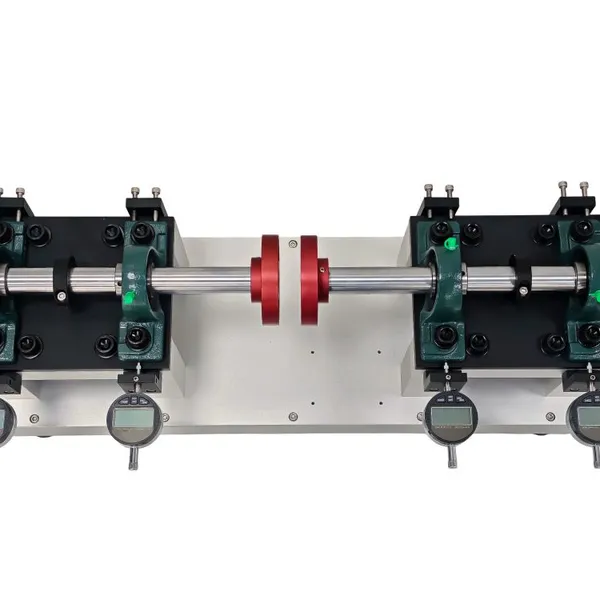

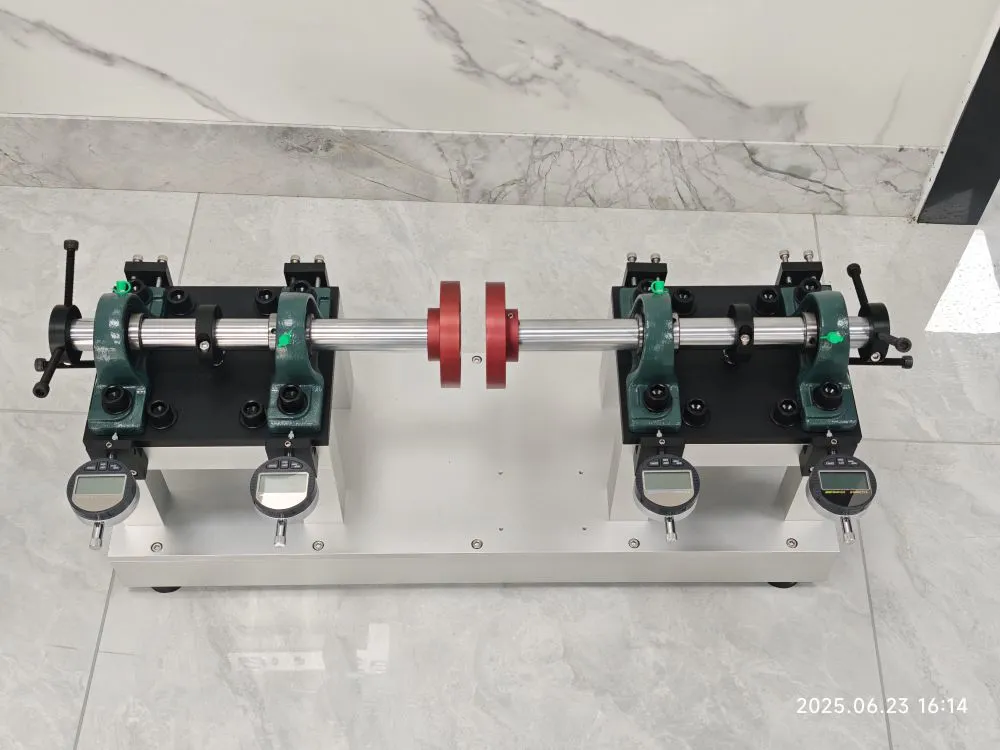

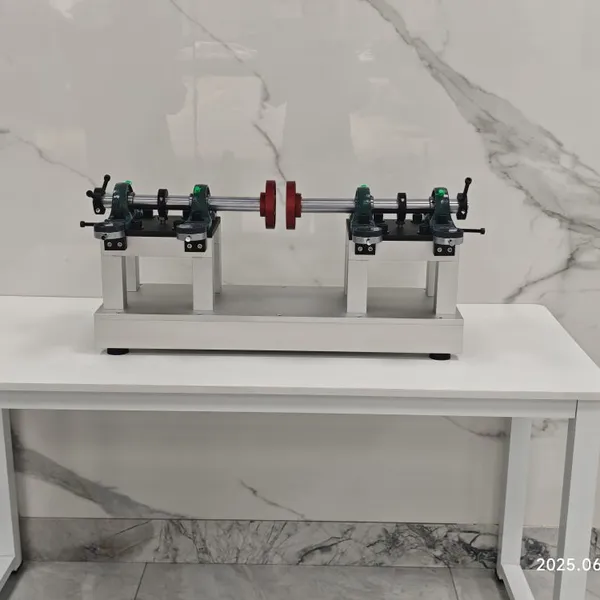

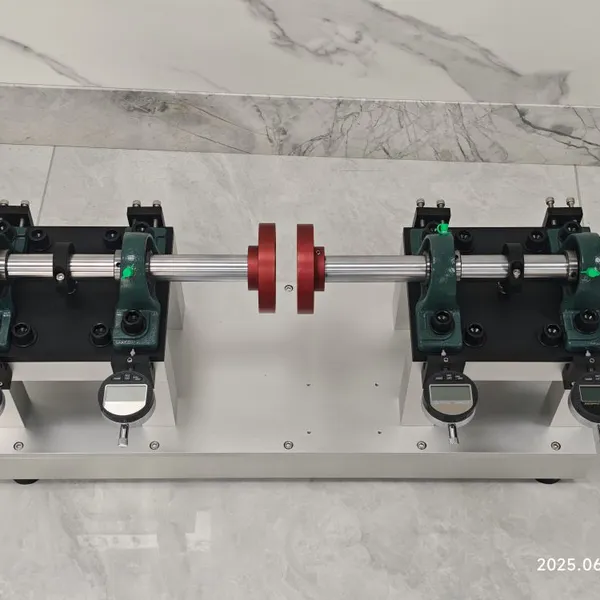

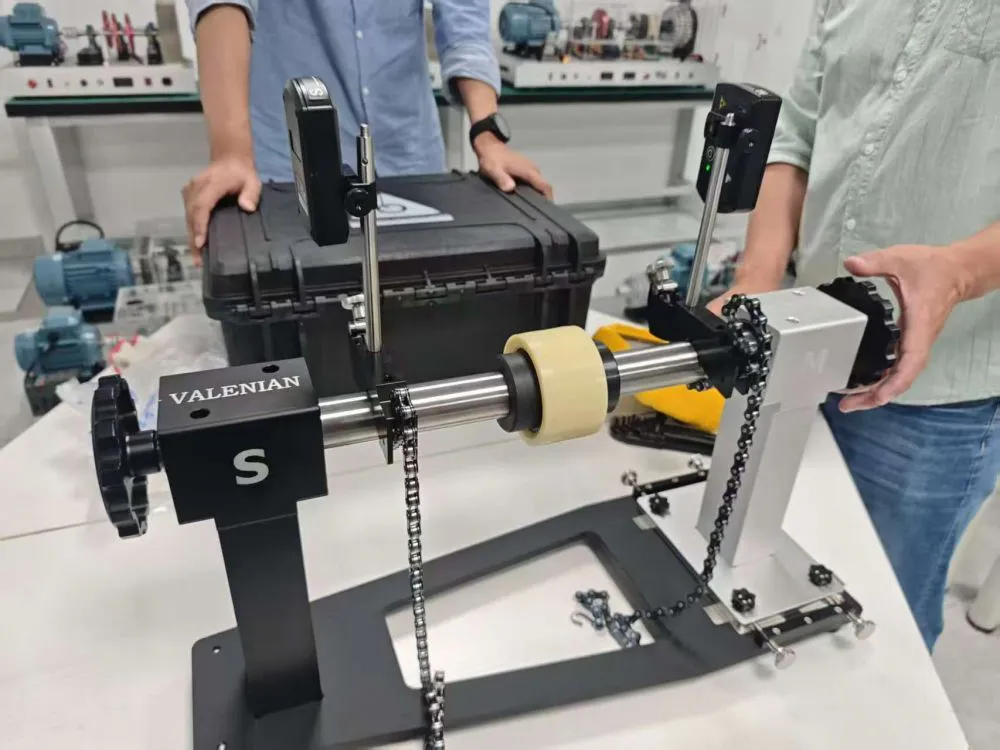

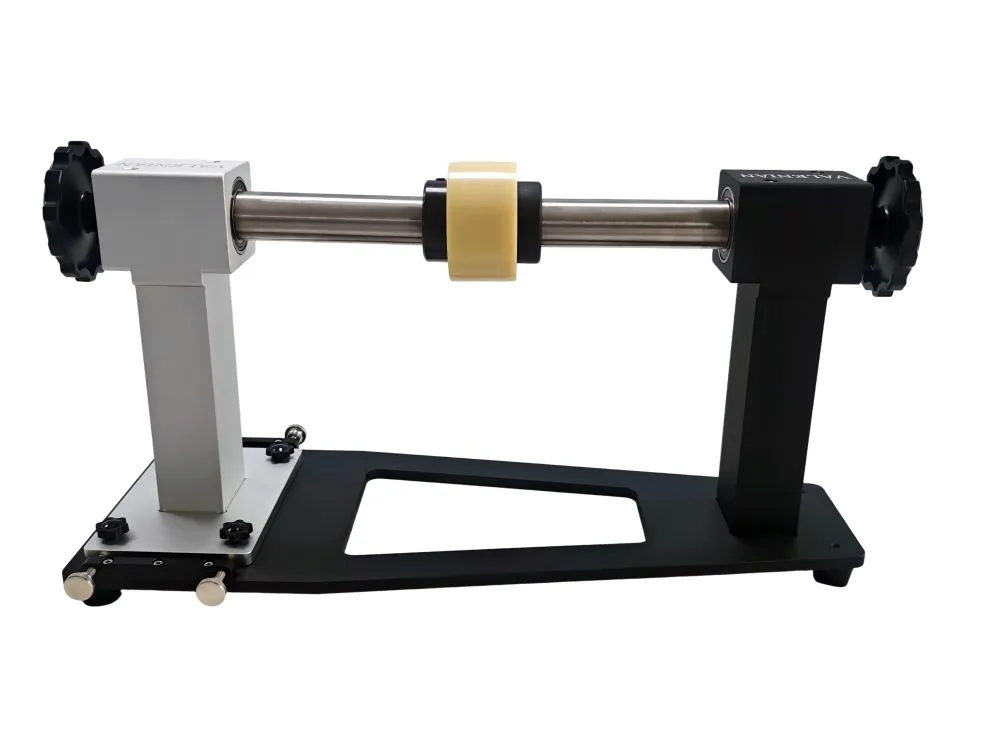

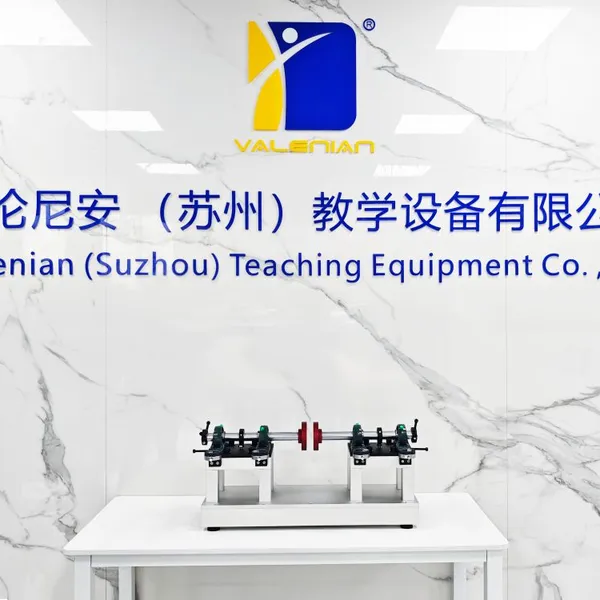

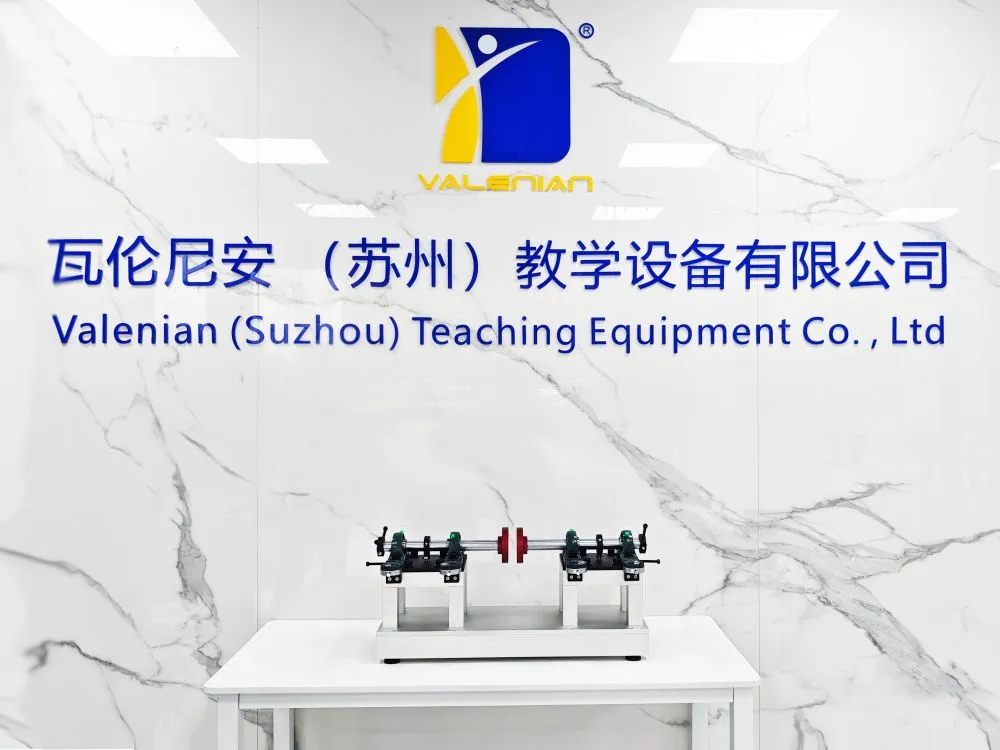

The SAT500 shaft alignment simulation bench is a precision alignment teaching and training tool designed for industrial technology training departments. It can use both dial indicator alignment and laser alignment, two types of correction functions. When the user locks the coupling, the two shafts will rotate together. When the coupling is removed, the user can try to perform dial indicator alignment in non-coupling mode. In this way, users can learn two commonly used methods of shaft alignment.
Configuration：
The main components of the test bench are made of high-strength aluminium alloy, which is both strong and lightweight, and can meet the demands of high-intensity use.
Function：
The effects of misalignment
· Increased downtime: Frequent breakdowns and repairs lead to increased equipment downtime.
· Rising maintenance costs: The need for frequent replacement of parts and repairs increases maintenance expenses.
· Increased energy consumption: Misaligned machines are typically less efficient and consume more energy.
· Shortened equipment lifespan: Persistent misalignment leads to premature wear and tear of the equipment, reducing its lifespan.
Basic Technical Parameters：
Serial Number |
Name |
Technical Parameters |
Notes |
1 |
Model |
SAT 500 |
|
2 |
Material |
High-strength aluminium alloy material |
Base and support column, excluding shaft. |
3 |
Bearing model |
UCP206 |
Deep groove ball bearings, self-aligning bearings |
4 |
Shaft diameter |
30mm |
45# steel |
5 |
Overall dimensions |
Single combination coupling: 735mm*250mm*350mm; Multi-combination couplings: 1200mmX250mmX350mm |
|
6 |
Coupling form |
Flange couplings |
|
7 |
Weight |
Single combination 30Kg; Multiple combinations 45kg |
Excluding the packaging box |
8 |
Align and adjust the gasket |
0.1 mm and 0.2 mm and 0.5 mm |
6 sheets for each size |
9 |
Align the indicator sheet |
Digital dial indicator, accuracy 0.01mm |
