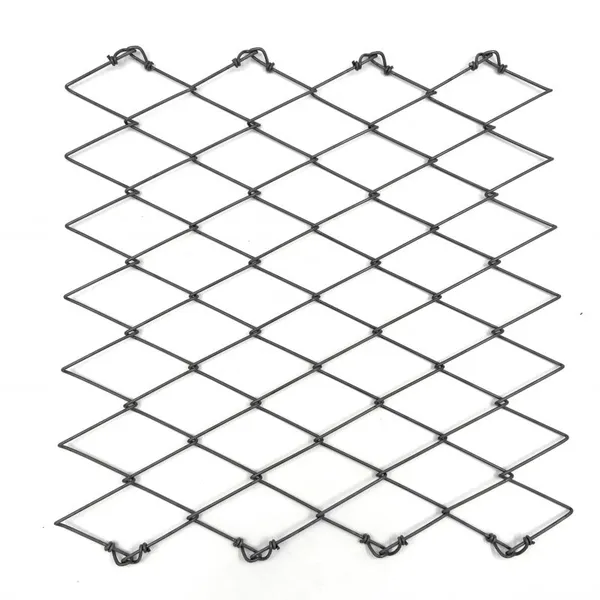

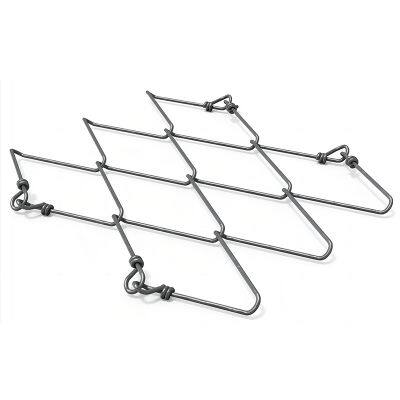

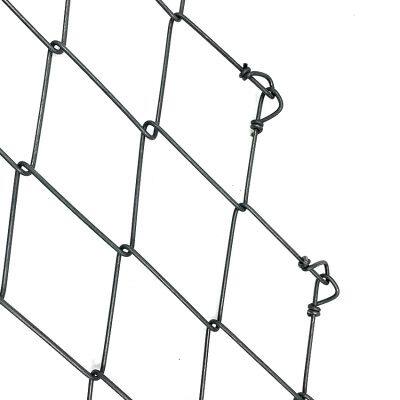

SNS Slope Protection Rock Fall Netting Grid Mesh Factory Produce Rockfall Barrier Netting
US$ 8.00
3000 - 4999 Square Meters
US$ 7.80
≥5000 Square Meters
Key Specifications
Get Latest Price
Material:
High-tensile Wire, High-tensile Steel Wire
Type:
Chain Link Mesh
Application:
Protecting Mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Slope Protection Mesh/ Spider Spiral Rope Net /Active Protection for Blocky Rock SlopesUS$ 73.00 - 78.00MOQ: 100 Rolls -
Rockfall Net/ High Tensile Rockfall Protection Netting 65/3 80/3 80/4 80/4.6 / Slope Protection MeshNegotiableMOQ: 1 Square Meter
-
4.6mm SNS High-tensile Flexible Zinc-Aluminum Alloy Slope Protection Mesh Rockfall Wire Mesh NettingUS$ 5.20 - 5.80MOQ: 100 Meters
-
High Performance SNS Slope Rockfall Netting SupplierUS$ 5.20 - 5.80MOQ: 100 Meters
-
3.0mm/4.0mm/4.6mm Zinc-Aluminum Alloy High-tensile Steel Wire MeshUS$ 5.20 - 5.80MOQ: 100 Meters
Application
Protecting Mesh
Technique
Woven
Model Number
45/2 65/3 65/4 80/3 80/4 80/4.6 Construction
Brand Name
LONGEN
Place of Origin
Hebei, China
Delivery Time
8-14 days
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Weave Style
Plain Weave
Diameter
2.0mm 3.0mm 4.0mm 4..6mm Construction
Tensile Strength
>1770Mpa
Compound
95%Zn-5%Al alloy coating
Coating
min. 150g /m²
Mesh shape
Rhomboid
Mesh width
48mm,65mm,63mm,80mm,
Roll width
3m Construction
Roll length
10m,20m,30m Construction
Mesh edges
Mesh ends Knotted
Technical Data Sheet
CE European Technical Approval ETA-17/0118
Technical data |
45/2 |
65/3 |
65/4 |
||
Wire diameter |
2mm |
3mm |
4mm |
||
Steel quality |
high-tensile steel wire |
||||
Mesh shape |
Rhomboid |
||||
Tensile strength of steel wire |
＞1770 N/mm² |
＞1770 N/mm² |
＞1770 N/mm² |
||
Tensile strength steel wire mesh |
min.85kN/m |
min.150kN/m |
min.250kN/m |
||
Diagonal |
62×95mm（+/-3%） |
83×143mm（+/-3%） |
83×138mm（+/-3%） |
||
Mesh width |
48mm（+/-3%） |
65mm（+/-3%） |
83mm（+/-3%） |
||
Compound protection |
Zn/AI coating of steel wires |
||||
Compound of corrosion protection |
95% Zn / 5% AI |
||||
Coating |
min.125g/㎡ |
min.150g/㎡ |
min.150g/㎡ |
||
≤5% dark brown rust in salt spray test according to EN ISO 9227 |
1500 hours
（ETA-17/0118）
|
1700 hours
（ETA-17/0118）
|
1400 hours
（ETA-17/0118）
|
||
Roll with |
2m，2.5m，3m，3.5m，4m，4.5m，customizable |
||||
Roll length |
10m，20m，30m，as per site requirement customizable |
||||
Mesh edges |
Mesh ebds knotted |
||||
Main Components
• steel wire mesh
• system spike plate
• soil or rock nail
• connection clips T3
Details Images
Application
Slope Protection systemserves to stabilize steep slopes of unconsolidated material and rocks, and to prevent stones and blocks in disintegrated, loose or weathered rocky slopes from breaking out.
Slope Stabilization System
Rockfall prevention System
Greening and revegetation
Characteristics of the high-tensile steel wire mesh
●High-tensile steel wire (>256 KSI)
●High tensile strength of the mesh (> 10.2 kips/ft)
●Safe force transmission mesh to nail
●Low weight
●Pretensioning of the system possible
●Simple handling
●Special corrosion protection
Hebei Longen wire mesh Products Co., Ltd
Our solutions : safe, sustainable, efficient
