High Performance SNS Slope Rockfall Netting Supplier
US$ 5.80
100 - 4999 Meters
US$ 5.60
5000 - 9999 Meters
US$ 5.40
10000 Meters
US$ 5.20
≥10001 Meters
Key Specifications
Get Latest Price
Material:
High-tensile Steel wire, High-tensile Steel wire
Type:
Chain Link Mesh
Technique:
Woven
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3.0mm/4.0mm/4.6mm Zinc-Aluminum Alloy High-tensile Steel Wire MeshUS$ 5.20 - 5.80MOQ: 100 Meters -
3.0mm Rhombus 65mm High Tensile Strength Steel Wire Mesh for Rockfall Protection Netting Slope Protection Rockfall MeshUS$ 2.80 - 3.00MOQ: 3000 Square Meters
-
Rhomboid Steel Wire Mesh for Slope Stabilization Rockfall BarrierUS$ 5.40 - 5.60MOQ: 1 Meter
-
Chain Link High Tensile Steel Wire Rockfall Protection Mesh 65/3 for Slope StabilizationUS$ 4.90 - 5.60MOQ: 1000 Meters
-
Flexible Slope Reinforcing Mesh Intercept Rockfall Protection Wire MeshUS$ 5.40 - 5.60MOQ: 1 Meter
Technique
Woven
Model Number
65/3
Brand Name
LONGEN
Place of Origin
Hebei, China
Delivery Time
8-14 days
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Weave Style
Plain Weave
Product name
Slope Rockfall Netting
Wire diameter
3.0mm
Tensile strength
≥ 1770 N/mm²
Mesh shape
Rhomboid
Mesh width
inscribed circle diameter of mesh 65 mm
Tensile strength of mesh
150 kN/m
Compound
95%Zn-5%Al alloy coating
Coating
150g /m²
Mesh edges
Mesh ends Knotted
Product Description
SNS Slope Rockfall Netting
Slope rockfall netting featuring 2 mm, 3 mm or 4 mm wire made from high-tensile steel, can be used to stabilize virtually any kind of slope, whether it consists of rock or loose soil.
Rockfall netting system consists of four main components that are carefully coordinated with the others:

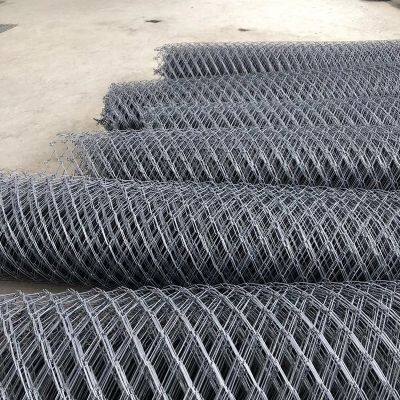

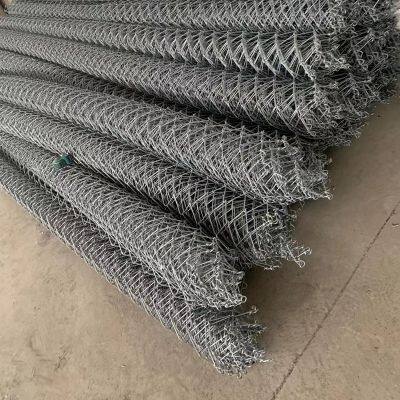

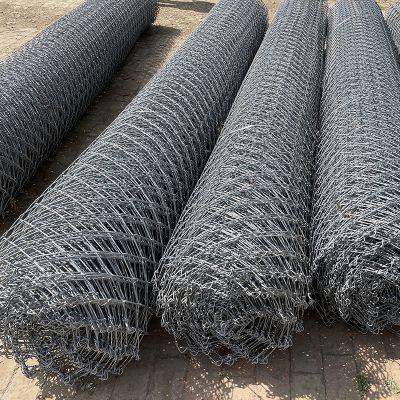

Rockfall Netting
Rockfall Netting is made of the high-tensile steel wire with an ultimate tensile strength of 1770 N/mm2.

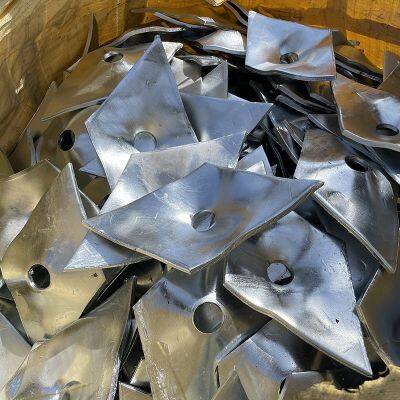

Spike Plates
Rigid spike plates reinforced with ribbing ensure optimal load transmission from soil or rock anchors to the Rockfall Netting
These plates are placed over the anchor heads and tightened to pre-tension the mesh onto the slope.
The plates are galvanized and have dimensions of 13.0''*7.5"*0.3"/0.4"(330mm*190mm*8/10mm), 13.0''*7.08"*0.3"/0.4"(330mm*180mm*8/10mm), 13.0''*7.5"*0.3"/0.4"(330mm*205mm*8/10mm), etc.

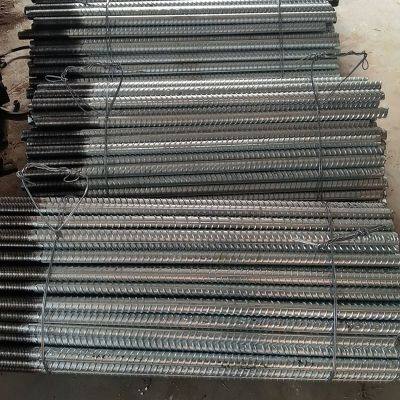

Soil or Rock Nails （Steel Anchor）
Adapted to the local soil and rock static requirements, the TECCO mesh can be anchored in accordance with plan with commercial soil or rock nails. The main anchors of the system are installed in a grid typically from 6.6 to 13.1 ft (2.0 to 4.0m) horizontal and vertical spacing. Actual spacing depends upon the results of site analysis and modeling. Anchor consists of commercially available steel bars ranging from 1.0 to 1.25 ft (25 to 32mm). Self-drilling grout injection anchors are also permitted. Additional anchors may also be used to provide added support at boundaries and in low points and hollows.
Connection Clips T3
The high-strength steel wire connection clips enable mesh sections to be joined without overlapping and still guarantee one hundred percent transfer of forces. These clips are hot-dip galvanized and consist of 0.16" (4mm) or 0.25"(6mm) thick steel spirals.
Technical Data Sheet
CE European Technical Approval ETA-17/0118
Technical data |
65/3 |
Wire diameter |
3mm |
Steel quality |
high-tensile steel wire |
Tensile resistance of a wire |
12.5kN |
Mesh shape |
Rhomboid |
Tensile strength of steel wire |
＞1770 N/mm² |
Tensile strength steel wire mesh |
min.150kN/m |
Diagonal |
83×143mm（+/-3%） |
Mesh width |
65mm（+/-3%） |
Compound protection |
Zn/AI coating of steel wires |
Compound of corrosion protection |
95% Zn / 5% AI |
Coating |
min.150g/㎡ |
≤5% dark brown rust in salt spray test according to EN ISO 9227 |
1700 hours（ETA-17/0118） |
Roll with |
2m，2.5m，3m，3.5m，4m，customized |
Roll length （as per site requirement） |
10m，20m，30m，customized |

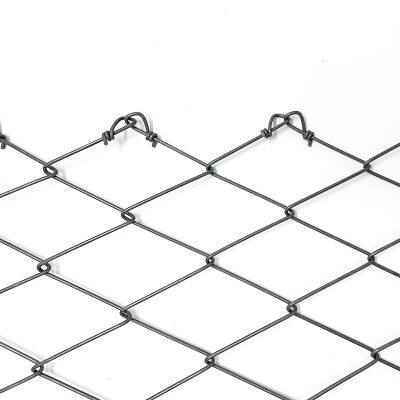

Mesh edges |
Mesh ebds knotted（customized） |
High-tensile Steel Mesh has strong durability and corrosion resistance. Strong permeability, convenient construction, and sustainable protective function. SNS Flexible Slope High-tensile Rockfall Netting
Packing & Delivery
Details Images
Main Components
high-tensile steel wire mesh
Is made of the high-tensile steel wire with an ultimate tensile strength of 1770 N/mm2.
Soil or Rock Nails
steel wire mesh can be anchored in accordance with plan with commercial soil or rock nails. Anchor consists of commercially
available steel bars ranging from 1.0 to 1.25 ft (25 to 32mm).
available steel bars ranging from 1.0 to 1.25 ft (25 to 32mm).
Spike Plates
Rigid spike plates reinforced with ribbing ensure optimal load transmission from soil or rock anchors to the Steel Wire Mesmesh.These plates are placed over the anchor heads and tightened to pre-tension the mesh onto the slope.
The plates are galvanized and have dimensions of 13.0''*7.5"*0.3"/0.4"(330mm*190mm*8/10mm), 13.0''*7.08"*0.3"/0.4"(330mm*180mm*8/10mm), 13.0''*7.5"*0.3"/0.4"(330mm*205mm*8/10mm), etc.
Connection Clips T3
The high-strength steel wire connection clips enable mesh sections to be joined without overlapping and still guarantee one hundred percent transfer of forces. These clips are hot-dip galvanized and consist of 0.16" (4mm) or 0.25"(6mm) thick steel spirals.
Product Application
high-tensile steel wire mesh Function
• Slope stabilization
• Protection against slides breaking out
• Rockfall protection
• Erosion protection
Characteristics of the high-tensile steel wire mesh
●High-tensile steel wire (>256 KSI)
●High tensile strength of the mesh (> 10.2kips/ft)
●Safe force transmission mesh to nail
●Low weight
●Pretensioning of the system possible
●Simple handling
●Specialcorrosion protection
●High tensile strength of the mesh (> 10.2kips/ft)
●Safe force transmission mesh to nail
●Low weight
●Pretensioning of the system possible
●Simple handling
●Specialcorrosion protection
