Slope Protection Mesh/ Spider Spiral Rope Net /Active Protection for Blocky Rock Slopes
US$ 78.00
100 - 999 Rolls
US$ 76.00
1000 - 1999 Rolls
US$ 73.00
≥2000 Rolls
Key Specifications
Get Latest Price
Material:
Galvanized Steel Wire
Type:
Rope Mesh
Technique:
Woven
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rockfall Net/ High Tensile Rockfall Protection Netting 65/3 80/3 80/4 80/4.6 / Slope Protection MeshNegotiableMOQ: 1 Square Meter -
4.6mm SNS High-tensile Flexible Zinc-Aluminum Alloy Slope Protection Mesh Rockfall Wire Mesh NettingUS$ 5.20 - 5.80MOQ: 100 Meters
-
High Performance SNS Slope Rockfall Netting SupplierUS$ 5.20 - 5.80MOQ: 100 Meters
-
3.0mm/4.0mm/4.6mm Zinc-Aluminum Alloy High-tensile Steel Wire MeshUS$ 5.20 - 5.80MOQ: 100 Meters
-
3.0mm Rhombus 65mm High Tensile Strength Steel Wire Mesh for Rockfall Protection Netting Slope Protection Rockfall Mesh Factory Direct ManufacturerUS$ 2.80 - 3.00MOQ: 3000 Square Meters
Technique
Woven
Model Number
SPIDER spiral rope net
Brand Name
LONGEN
Place of Origin
Hebei, China
Delivery Time
8-14 days
Processing Service
Chain Link Mesh
Weave Style
Chain Link Mesh
Product name
spider spiral rope net
Strand Diameter
6.5mm, 8.6mm
Tensile strength steel wire
1770MPa
Hole size
164x270, 180x300mm
Roll Width
3.3mm, 3.5mm
Roll Length
10mm, 20mm, 30mm
Surface treatment
Hot Dipped Galvanized
Package
Roll
Usage
Rockfall Protection Mesh
Product Description
Speider Spiral Rope Net-Active Protection For Rock Slopes
The Spider spiral rope net made from high-tensile wire secures loose, blocky rocks, rock spurs, overhangs or unstable rock formations with highly irregular surface structures. The Spider-system utilizes a flexible nail grid and boundary ropes together with the spiral rope net.
Product specification
Speider system consists of the Spider spiral rope net, grid net, anchors, anchor bearing plate , border and suture ropes and net connection elements.
Spider Spiral Rope Net Data Sheets |
||
Mesh shape：Rhomboid
Hole size：164mmx270mm(+/- 5%)
Hole Inscribed circle diameter: 250mm (+/- 5%)
Wire diameter:3.0mm
Monofilament intensity: Not less than 1770N/㎡
Material：High-tensile steel wire Strand diameter：6.5mmStrands Structure：1 x3
Roll width：3.5m
Roll length：5m，10m，20m Corrosion protection:
Zinc mass： Not less than 150g/m2
Breaking force：195-220KN/m
Corrosion protection:，Hot dip galvanizing， galvanized coating ( 95% ZN -5% Al )
Grid Net Standard Specification
Wire diameter：2.2mm
Hole size: 50mmx50mm Roll width：2mRoll length：20m |
Mesh shape：Rhomboid
Hole size：180mmx300mm(+/- 5%) Hole Inscribed circle diameter: 280mm (+/- 5%) Wire diameter:4.0mm Monofilament intensity: Not less than 1770N/㎡ Material：High-tensile steel wire Strand diameter：6.5mm Strands Structure：1 x3
Roll width：3.3m
Roll length：5m，10m，20m Corrosion protection: Zinc mass： Not less than 150g/m2 Breaking force：195-220KN/m Corrosion protection:，Hot dip galvanizing， galvanized coating ( 95% ZN -5% Al )
Grid Net Standard Specification
Wire diameter：2.2mm Hole size: 50mmx50mm Roll width：2mRoll length：20m |
|
Spike plate
Anchor bearing plate: 320mm x 170/180mm
Anchors ROD
Deformed steel bar anchor diameter: 25mm or 28mm
Length:2m -5m
Length:2m -5m
Boundary rope
the diameter is thicker than the 12 mm, and the most common diameter is 14 mm or 16 mm; the length of single boundary rope is shorten than 40 m.
Seaming rope
Seaming rope diameter: 8mm

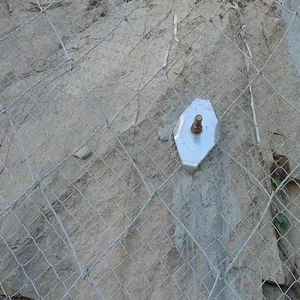

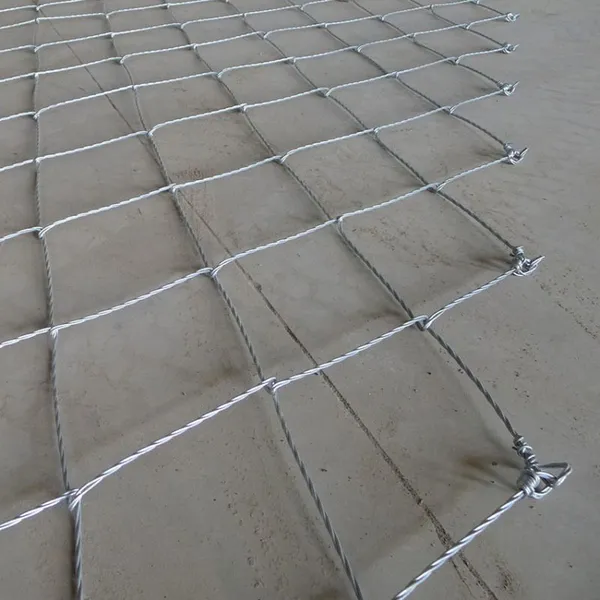

Detailed Images
Product Application
Speider Spiral Rope Net Features:
Free choice of anchor points.
Tensile strength:1770N/mm2.
More than 250g/m2 zinc coated
Fast mounting of the spiral rope net rolls over large areas.
Suitable for reinforcing existing protection measures
Practically invisible when the vegetation is established.
