3.0mm Rhombus 65mm High Tensile Strength Steel Wire Mesh for Rockfall Protection Netting Slope Protection Rockfall Mesh
US$ 3.00
3000 - 4999 Square Meters
US$ 2.80
≥5000 Square Meters
Key Specifications
Get Latest Price
Material:
High Tensile Steel wire, High-tensile Steel Wire
Type:
protection net
Technique:
Woven
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Flexible Slope Rockfall Netting Active Protection System Rockfall Steel Wire Mesh High-tensile Rockfall NettingUS$ 0.45MOQ: 100 Square Meters -
3.0mm High-tensile Steel Wire Mesh Rockfall Netting for Slope Protection SystemUS$ 84.00 - 94.00MOQ: 1 Roll
-
Wholesale 80/3 Mesh Chain Link Barrier Active Rockfall Protection System for Mining Woven Technique Bending Processing ServiceUS$ 2.9 - 8.8MOQ: 1 Square Meter
-
Cheap Price Rockfall Netting High Tensile Steel Wire 80/4 Reinforcement Net for Mining/Tunnels SolutionsUS$ 2.9 - 8.8MOQ: 1 Square Meter
-
Wholesale 80/3 Mesh Active Protection System for Mining Plain Weave Rockfall Barrier Chain Link Mesh Woven TechniqueUS$ 2.9 - 8.8MOQ: 1 Square Meter
Technique
Woven
Model Number
65/3
Brand Name
LONGEN
Place of Origin
Hebei, China
Delivery Time
8-14 days
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Weave Style
Plain Weave
Product name
High Tensile Steel Mesh
model
65/3
Mesh size
83*143mm
Diameter
3.0mm
Tensile Strength
>1770Mpa
Compound
95%Zn-5%Al alloy coating
Coating
min. 150g /m²

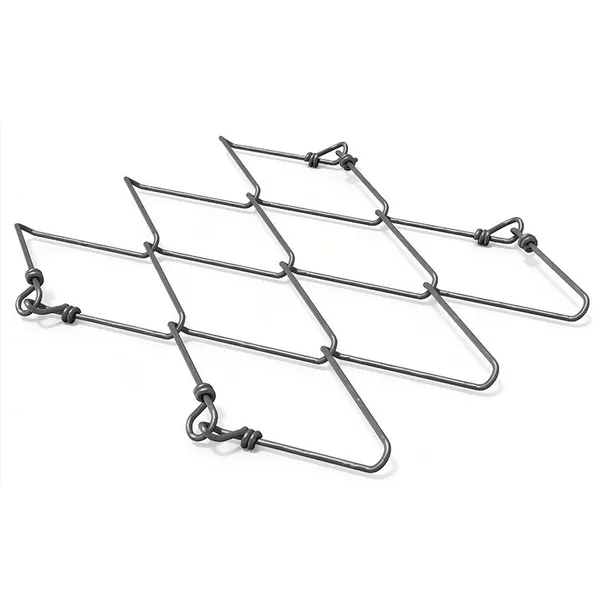

Mesh edges
Mesh ends Knotted
Usage
rockfall protection
steel mesh Description
slope rock fall protection system is a mitigation system consisting of a high tensile steel wire mesh. It is used in combination with soil and/or rock nails to stabilize steep slopes in unconsolidated material and rock liable to slip and break out.
Slope Protection Mesh are engineered with high-quality materials that are built to withstand the forces of nature. These systems are designed to be long-lasting, ensuring durable protection against rockfalls over an extended period. This reliability reduces the need for frequent maintenance and replacement, saving you time and money in the long run.

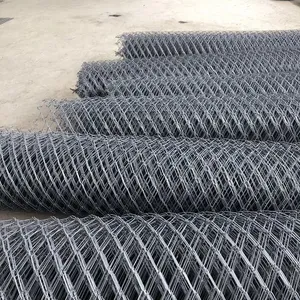

Steel Mesh Details Images
Technical Data Sheet
CE European Technical Approval ETA-17/0118
High-tensile steel wire mesh 65/3
1. wire diameter : 3.0mm
2. high tensile strength : 1770Mpa
3. mesh size : 80mm x 140mm
4. Mesh shape : diamond
5. Material : high tensile steel wire
6.Corrosion protection : super coating
7.Coating : 150g/m2
8.Breaking load of single wire : 12.5KN
9.Tensile strength : 110KN/m
High-tensile steel wire mesh 65/3 system consists of four main components :
steel mesh specification
Main Components
1.High-tensile Steel Wire Mesh
2.Soil or Rock Nails （Steel Anchor）
3.Spike Plates
4.Connection Clips T3
High-tensile Steel Wire Mesh
Is made of the high-tensile steel wire with an ultimate tensile strength of 1770 N/mm2.
Soil or Rock Nails （Steel Anchor）
The main anchors of the system are installed in a grid typically from 6.6 to 16.4 ft (2.0 to 5.0m)horizontal and vertical spacing.Anchor consist of commercially available steel bars ranging from 1.0 to 1.25 ft (25 to 32mm).
Spike Plates
The plates are galvanized and have dimensions of 13.0''*7.5"*0.3"/0.4"(330mm*190mm*8/10mm), 13.0''*7.08"*0.3"/0.4"(330mm*180mm*8/10mm), 13.0''*7.5"*0.3"/0.4"(330mm*205mm*8/10mm), etc.
Connection Clips T3
The high-strength steel wire connection clips enable mesh sections to be joined without overlapping and still guarantee one hundred percent transfer of forces. These clips are hot-dip galvanized and consist of 0.16" (4mm) or 0.25"(6mm) thick steel spirals.
Application
High-tensile steel wire mesh featuring 2 mm, 3 mm or 4 mm wire made from high-tensile steel, can be used to stabilize virtually any kind of slope, whether it consists of rock or loose soil. Coupled with either of three different sized spike plates, the offers an attractive nail grid and, therefore, maximum efficiency during installation.
Rockfall Protection System
Wherever roads, railway lines or other infrastructures need to be protected against rockfall our drapes made from high-tensile steel wire nets are a perfect economical solution. They allow rockfalls to be controlled and guided into the deposition zones.
Rockfall Protection barriers
Due to intercepting rocks and other objects that slide off when the mountain or slope is unstable, it reduces the safety
of pedestrians and vehicles as well as damage to public facilities.
of pedestrians and vehicles as well as damage to public facilities.

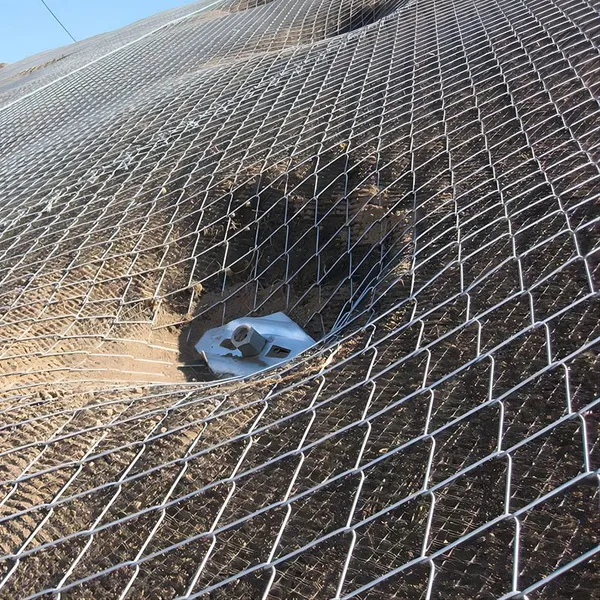

Slope Stabilization System
slope stabilization system is a mitigation system consisting of a high-tensile steel wire mesh. It is used in combination with soil and/or rock nails to stabilize steep slopes in unconsolidated material and rock liable to slip and break out.
Erosion control
Re-vegetation mesh
High-tensile steel wire meshand an erosion control mat. this innovative combination is used to stabilize slopes, dams, and cuttings. At the same time it provides protection against surface erosion and supports vegetation growth – all on a particularly high level of efficiency and performance.
Underground &open pit mining
Rock mesh are used in mines, on access roads, and railway tunnels for reinforcing existing infrastructure or ensuring the utmost stabilization for new structures from the onset, from box cut to abandonment of a mine.
Characteristics of the high-tensile steel wire mesh
●High-tensile steel wire (>256 KSI)
●High tensile strength of the mesh (> 10.2kips/ft)
●Safe force transmission mesh to nail
●Low weight
●Pretensioning of the system possible
●Simple handling
●Specialcorrosion protection
