Rockfall Net/ High Tensile Rockfall Protection Netting 65/3 80/3 80/4 80/4.6 / Slope Protection Mesh
Negotiable
MOQ: 1 Square Meter (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
high-tensile steel wire, high tensile steel wire
Type:
Chain Link Mesh
Technique:
Woven
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4.6mm SNS High-tensile Flexible Zinc-Aluminum Alloy Slope Protection Mesh Rockfall Wire Mesh NettingUS$ 5.20 - 5.80MOQ: 100 Meters -
High Performance SNS Slope Rockfall Netting SupplierUS$ 5.20 - 5.80MOQ: 100 Meters
-
3.0mm/4.0mm/4.6mm Zinc-Aluminum Alloy High-tensile Steel Wire MeshUS$ 5.20 - 5.80MOQ: 100 Meters
-
3.0mm Rhombus 65mm High Tensile Strength Steel Wire Mesh for Rockfall Protection Netting Slope Protection Rockfall MeshUS$ 2.80 - 3.00MOQ: 3000 Square Meters
-
Rhomboid Steel Wire Mesh for Slope Stabilization Rockfall BarrierUS$ 5.40 - 5.60MOQ: 1 Meter
Technique
Woven
Model Number
65g/3
Brand Name
LONGEN
Place of Origin
Hebei, China
Delivery Time
8-14 days
Processing Service
Chainlink
Weave Style
Plain Weave
Diameter
3.0mm, 4.6mm
Size
Inscribed circle diameter 65 mm
Tensile strength
>1770MPa
Roll Width
1-3.5m Customers' Requirement
Roll Length
1-30m Customers' Requirement
galvanized coating
( 95% ZN -5% Al ) > 150 g/m2
316 stainless steel
high tensile
318 stainless steel
high tensile
Products Description
Rockfall Wire Mesh—Slope Stabilization With High Tensile Wire Mesh
Materia: High Tensll steel wire.
Wire diameter: 3.0mm, 4.0mm
Mesh type: Rhomboid hole
Mesh size : 83mmx143mm（ inscribed circle diameter65mm）
Tensile strength: Minimum 1770 MPa
Braking load of single wire: 12.5 kN
Mesh roll width: 1–3.5m，Customized
Mesh roll length:1–30 m，Customized
Surface treatment: Hot dipped galvanized, zinc-aluminum coated
Zinc thickness: galvanized coating ( 95% ZN -5% Al )，No less than 150 g/㎡
Fitting : Steel anchor, claw type spike plate, soil or rock nails,clips, sewing rope, boundary rope. (The steel anchor is made
ofdeformed steel bar of 25 mm diameter)
Detailed Images
wire
Tensile strength
|
Wire diameter
(mm)
|
Hole size
（mm）
|
weight
KG/㎡
|
width
M/Roll
|
length
M/Roll
|
Braking load of single wire: 12.5 kN.
|
1770MPa
|
3
|
83x143 |
1.65 |
1-3.5 |
1-10 |
|
70x130 |
1.90 |
1-3.5 |
1-10 |
|||
4
|
83x138 |
3.30 |
1-3.5 |
1-10 |
||
70x130 |
3.60 |
1-3.5 |
1-10 |
system Components
Rockfall Wire Meshsystem Components
Main Components: High-tensile steel wire mesh,Steel bar anchor or bolting, Claw type special anchor plate, Edge rope, oversewed rope or special lock.
Product Application

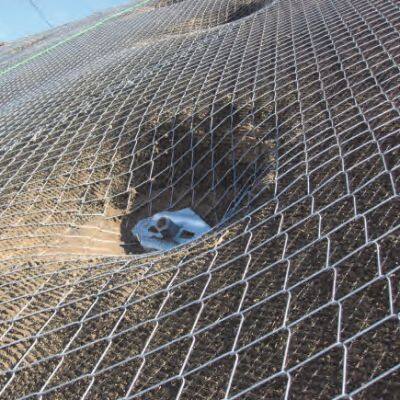

The Rockfall Wire Mesh is usually installed on soil or rocky textured surfaces such as mountains and slopes to prevent falling rocks and to ensure plant growth. In addition, it can be used to control water, soil loss and external soil spray sowing.
