3.0mm/4.0mm/4.6mm Zinc-Aluminum Alloy High-tensile Steel Wire Mesh
US$ 5.80
100 - 4999 Meters
US$ 5.60
5000 - 9999 Meters
US$ 5.40
10000 Meters
US$ 5.20
≥10001 Meters
Key Specifications
Get Latest Price
Material:
High-tensile Steel wire, High-tensile Steel wire
Type:
Weave Wire Mesh
Technique:
Woven
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3.0mm Rhombus 65mm High Tensile Strength Steel Wire Mesh for Rockfall Protection Netting Slope Protection Rockfall MeshUS$ 2.80 - 3.00MOQ: 3000 Square Meters -
Rhomboid Steel Wire Mesh for Slope Stabilization Rockfall BarrierUS$ 5.40 - 5.60MOQ: 1 Meter
-
Chain Link High Tensile Steel Wire Rockfall Protection Mesh 65/3 for Slope StabilizationUS$ 4.90 - 5.60MOQ: 1000 Meters
-
Flexible Slope Reinforcing Mesh Intercept Rockfall Protection Wire MeshUS$ 5.40 - 5.60MOQ: 1 Meter
-
Chain Link Steel Net for Protection Against Rock SlideUS$ 5.40 - 5.60MOQ: 1 Meter
Technique
Woven
Model Number
65/3
Brand Name
LONGEN
Place of Origin
Hebei, China
Delivery Time
8-14 days
Processing Service
Bending, Welding, Decoiling, Cutting, Punching
Weave Style
Chain Link Mesh
Product name
steel wire mesh
Wire diameter
3.0mm
Tensile strength
≥ 1770 N/mm²
Mesh shape
Rhomboid
Mesh width
inscribed circle diameter of mesh 65 mm
Tensile strength of mesh
150 kN/m
Compound
95%Zn-5%Al alloy coating
Coating
150g /m²

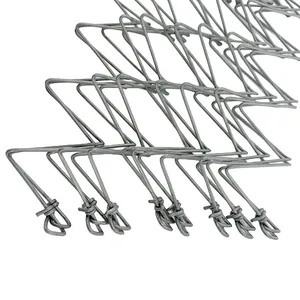

Mesh edges
Mesh ends Knotted
Product Description
High-tensile Steel Mesh 65/3
Unstable slopes can cause dangerous situations such as landslides, collapses, and mudslides. Installing high-strength steel wire mesh can reduce potential hazards and injuries.
Our factory can produce high-strength steel wire mesh with wire diameters of 2.0mm, 3.0mm, 4.0mm, 5.0mm, and 4.6mm. The mesh diameter of the inner cut circle is 48mm, 65mm, 63mm, and 80mm. Other wire diameters and mesh holes can also be customized according to on-site needs. We can also provide major system components, anchor pads, anchor rods, connectors, boundary ropes, etc. Please contact us for detailed information.
High-tensile Steel Mesh has strong durability and corrosion resistance. Strong permeability, convenient construction, and sustainable protective function.
Specification
CE European Technical Approval ETA-17/0118
High-tensile Steel Mesh 65/3
Technical Data Sheet
Technical data |
65/3 |
Wire diameter |
3mm |
Steel quality |
high-tensile steel wire |
Tensile resistance of a wire |
12.5kN |
Mesh shape |
Rhomboid |
Tensile strength of steel wire |
＞1770 N/mm² |
Tensile strength steel wire mesh |
min.150kN/m |
Diagonal |
83×143mm（+/-3%） |
Mesh width |
65mm（+/-3%） |
Compound protection |
Zn/AI coating of steel wires |
Compound of corrosion protection |
95% Zn / 5% AI |
Coating |
min.150g/㎡ |
≤5% dark brown rust in salt spray test according to EN ISO 9227 |
1700 hours（ETA-17/0118） |
Roll with |
2m，2.5m，3m，3.5m，4m，customized |
Roll length （as per site requirement） |
10m，20m，30m，customized |
Mesh edges |
Mesh ebds knotted（customized） |
Packing & Delivery
Details Images

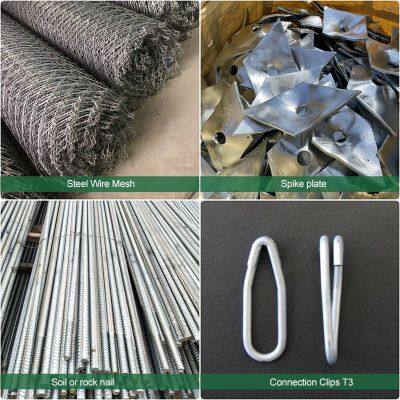

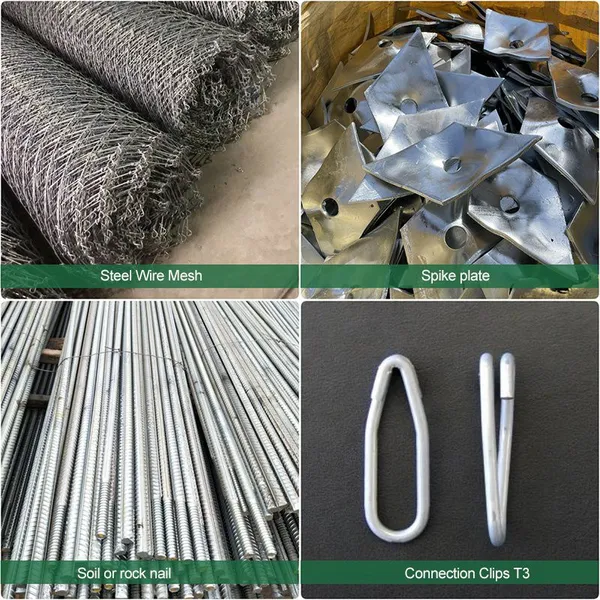

Main Components

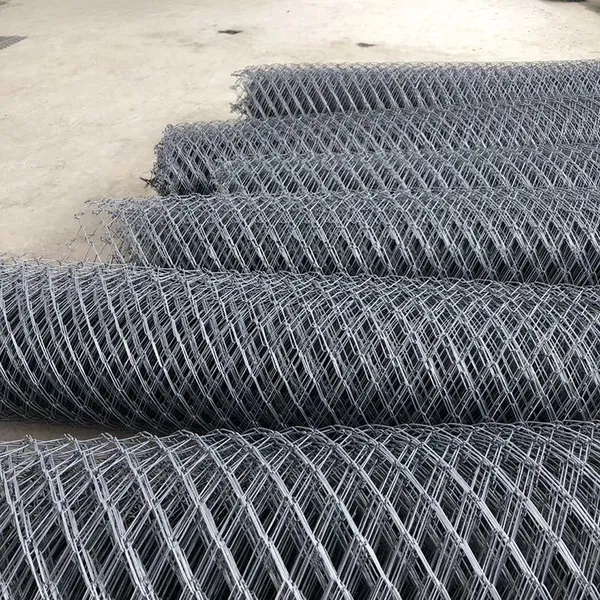

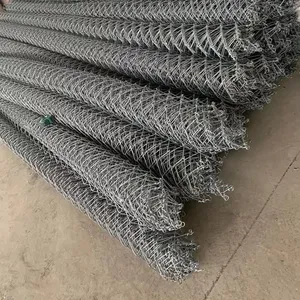

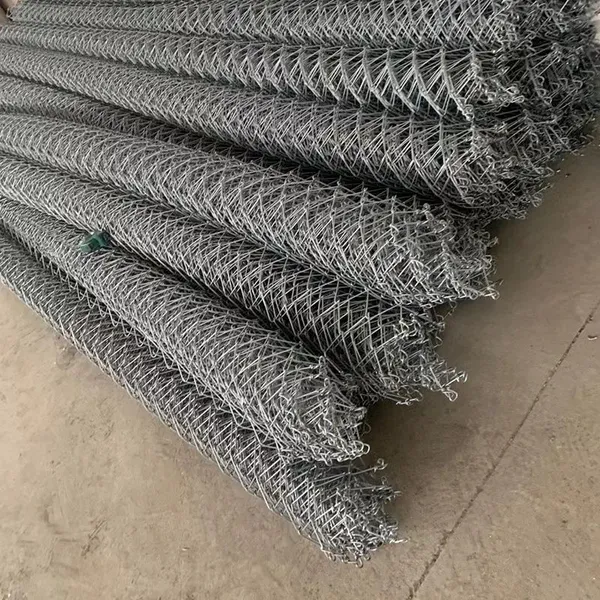

high-tensile steel wire mesh
Is made of the high-tensile steel wire with an ultimate tensile strength of 1770 N/mm2.

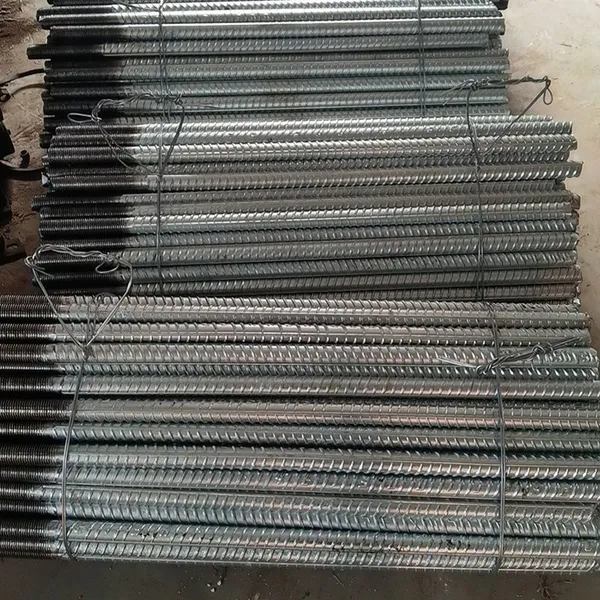

Soil or Rock Nails
steel wire mesh can be anchored in accordance with plan with commercial soil or rock nails. Anchor consists of commercially
available steel bars ranging from 1.0 to 1.25 ft (25 to 32mm).
available steel bars ranging from 1.0 to 1.25 ft (25 to 32mm).

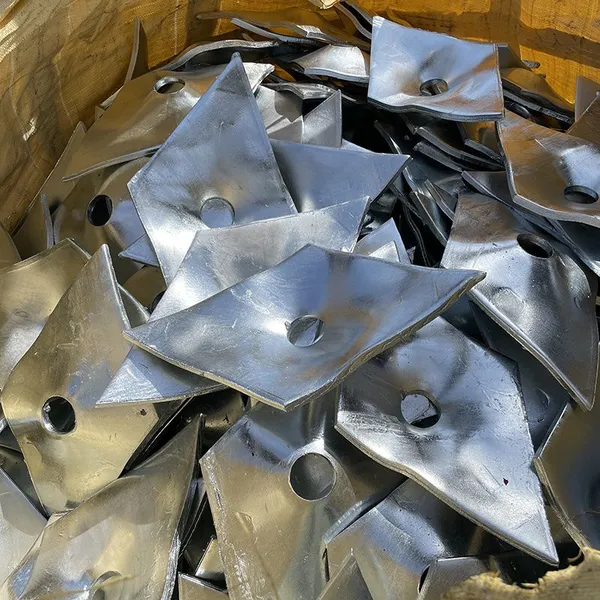

Spike Plates
Rigid spike plates reinforced with ribbing ensure optimal load transmission from soil or rock anchors to the Steel Wire Mesmesh.These plates are placed over the anchor heads and tightened to pre-tension the mesh onto the slope.
The plates are galvanized and have dimensions of 13.0''*7.5"*0.3"/0.4"(330mm*190mm*8/10mm), 13.0''*7.08"*0.3"/0.4"(330mm*180mm*8/10mm), 13.0''*7.5"*0.3"/0.4"(330mm*205mm*8/10mm), etc.
Connection Clips T3
The high-strength steel wire connection clips enable mesh sections to be joined without overlapping and still guarantee one hundred percent transfer of forces. These clips are hot-dip galvanized and consist of 0.16" (4mm) or 0.25"(6mm) thick steel spirals.
Product Application
3.0mm/4.0mm/4.6mm Zinc-Aluminum alloy high-tensile steel wire mesh
Function • Slope stabilization
• Protection against slides breaking out
• Rockfall protection
• Erosion protection
Characteristics of the high-tensile steel wire mesh
●High-tensile steel wire (>256 KSI)
●High tensile strength of the mesh (> 10.2kips/ft)
●Safe force transmission mesh to nail
●Low weight
●Pretensioning of the system possible
●Simple handling
●Specialcorrosion protection
●High tensile strength of the mesh (> 10.2kips/ft)
●Safe force transmission mesh to nail
●Low weight
●Pretensioning of the system possible
●Simple handling
●Specialcorrosion protection
