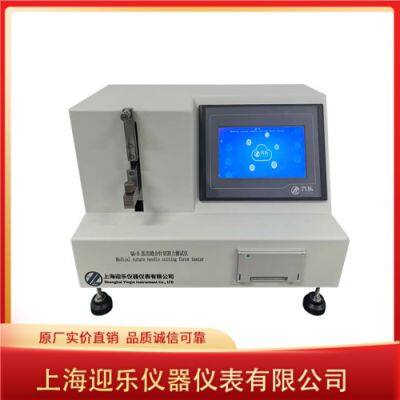

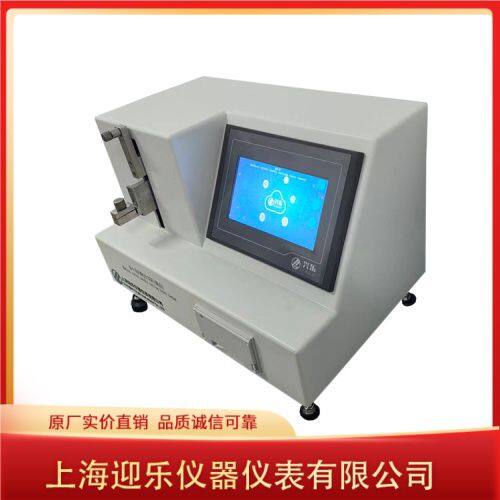

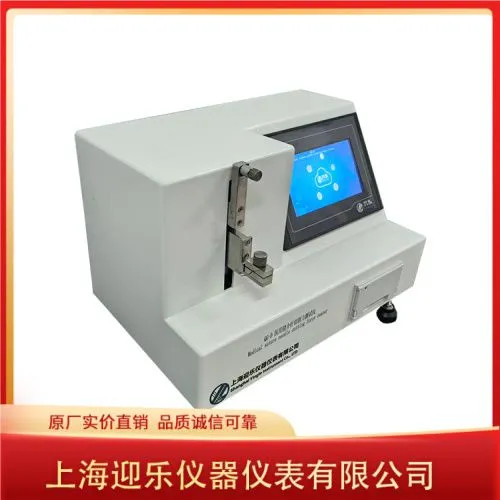

Medical Suture Needle Cutting Force Tester

Medical suture needle strength puncture force tester

TTechnical indicators: Operation interface: Simplified Chinese/English Test standard: YY0166-2002 "Suture needle with thread" YY0043-2016 "Medical suture needle" Display: 7-inch K600+ core/dot matrix 65-color 800*480 resolution touch screen display, PLC control system dynamically displays the loading force value; optional operation interface: Chinese/English/Chinese-English switching; digital closed-loop control, AD acquisition speed is 500KHz, internal code 500,000; high-precision clock chip, power-off storage; overload alarm shutdown protection; touch operation: nominal specifications, test load, printing, testing, uplink, downlink, time, calibration. The control menu on the LCD screen automatically loads the cutting force and automatically collects data. Programmable controller: PLC+ARM, Sensor: High-precision force sensor with software and hardware protection function. Nominal specification: 0.2~2.4mm; Test range: 0.1~20N, error not greater than ±1%, resolution 0.001N; Loading rate: 100 mm/min error not greater than ±2%. Printing method: airborne micro dot matrix printer. Test data: airborne collection and recording of cutting force data and automatic calculation of the total average value and deviation value; Power supply: AC90V-240V/50Hz Net weight: 12kg Dimensions: 400×240×240 (mm)

Manufacturer introduction: Shanghai Yingle Instrument Co., Ltd. (formerly Shanghai Xingle) is located in Shanghai, the manufacturing capital. The company was founded in 1993. It is a manufacturer of physical performance testing equipment for medical consumables integrating design, research and development, and sales. The company's products mainly serve third-party testing institutions, medical consumables production unit quality laboratories and R&D centers, etc.; the company has more than 30 years of industry experience, and is the first domestic disposable medical device physical performance testing instrument manufacturer. It is also the first company to obtain CMC certification. The company mainly produces medical stainless steel needle tube testing equipment, medical syringe testing equipment, medical infusion set testing equipment, medical suture needles, thread testing equipment, 6% Luer connector testing equipment, etc. Technical indicators are updated at any time with the industry standards for medical pharmaceutical packaging materials to ensure that the company's products serve customers with the latest standards.
