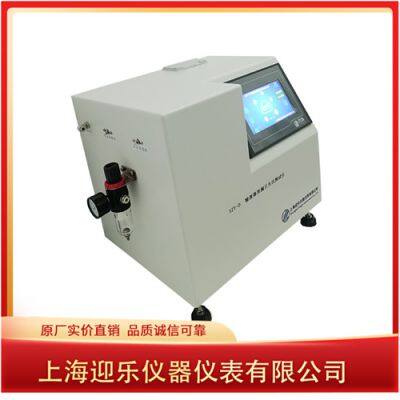

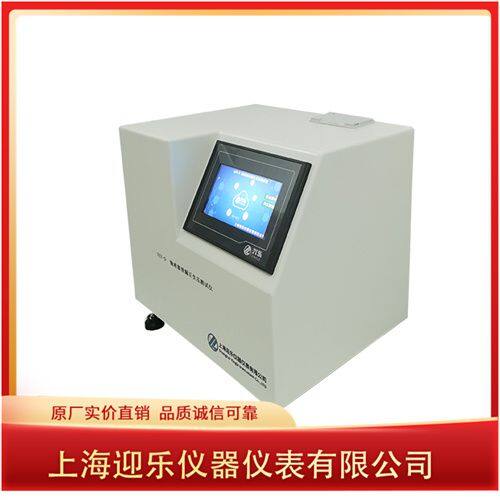

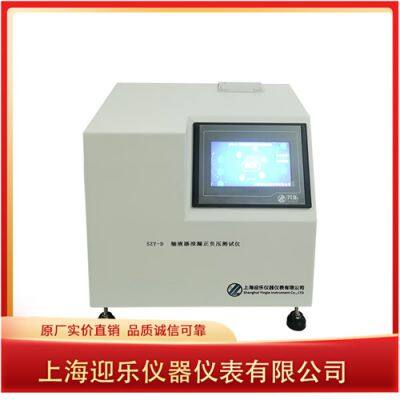

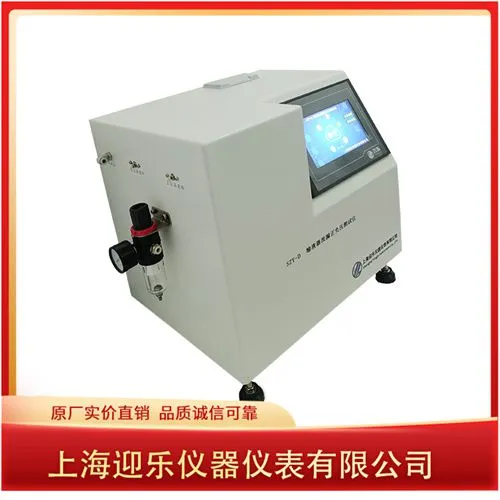

Infusion Set Sealing Performance Tester; Disposable Infusion Set Inspection Equipment
Technical specifications:
Operation Interface: Simplified Chinese/English
Test Standards: GB15811 "Disposable Sterile Syringe" GB18671 "Disposable Venous Infusion Needle"
Display: Employing a 7-inch K600+ core/matrix 65-color 800*480 resolution touchscreen display, the PLC control system dynamically displays the loading force value; Operation interface options: Chinese/English/Chinese-English toggle; Digital closed-loop control, AD sampling rate of 500KHz, internal code of 500,000; High-precision clock chip, power-off storage; Overload alarm shutdown protection; Touch operation: nominal specification, test load, print, test, up, down, time, calibration.
Programmable Logic Controller: PLC+ARM,
Sensor: High-precision force sensor with hardware and software protection functions
Configuration Requirements: Host + 6mm standard air tube, 6 meters long, 2.3 pressure output range: higher than local atmospheric pressure, 10kPa~100kPa,
Display Method: LCD digital display; pressure output values can be set arbitrarily, calibration error not greater than ±2.5% of the reading.
Test Duration: 5 seconds to 99.9 minutes, LCD digital display, error not greater than ±1s.
For tubes with a nominal outer diameter less than 1.0 mm, the flow rate should be 80%～125% of the manufacturer's marked value;
For tubes with a nominal outer diameter of 1.0 mm or more, the flow rate should be 90%～115% of the manufacturer's marked value.
Printing Method: Onboard micro-needle printer
Power Supply: AC90V-240V/50Hz
Net Weight: 11kg
Dimensions: 400×290×240 (mm)
Manufacturer introduction: Shanghai Yingle Instrument Co., Ltd. (formerly Shanghai Xingle) is located in Shanghai, the manufacturing capital. The company was founded in 1993. It is a manufacturer of physical performance testing equipment for medical consumables integrating design, research and development, and sales. The company's products mainly serve third-party testing institutions, medical consumables production unit quality laboratories and R&D centers, etc.; the company has more than 30 years of industry experience, and is the first domestic disposable medical device physical performance testing instrument manufacturer. It is also the first company to obtain CMC certification. The company mainly produces medical stainless steel needle tube testing equipment, medical syringe testing equipment, medical infusion set testing equipment, medical suture needles, thread testing equipment, 6% Luer connector testing equipment, etc. Technical indicators are updated at any time with the industry standards for medical pharmaceutical packaging materials to ensure that the company's products serve customers with the latest standards.
