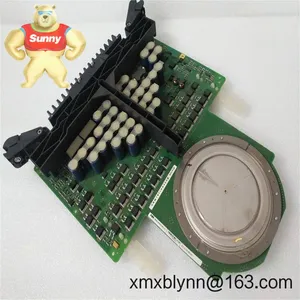

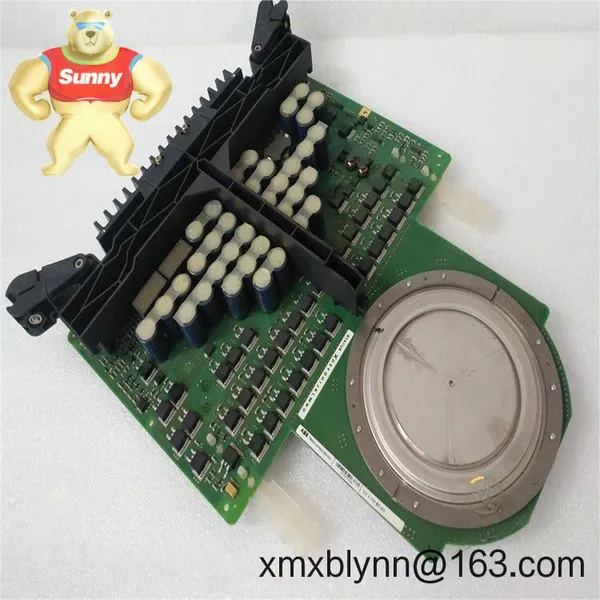

ABB IGCT Module 3BHB024548R0002 / 5SXE06-0160 – High‑reliability Switching for Medium‑voltage Drives and Converters
≥1 Combos
- T/T
- 7 days
You May Like
-
ABB 5SGY3545L0003 IGCT Module – High‑power Press‑pack Switching for Medium‑voltage Converters
-
ABB 5SGY3545L0002 IGCT Power Module – Robust Switching for Medium-voltage Drives and Grid Converters
-
ABB 5SGY3545L0008 IGCT Module – Reliable Switching for Medium‑voltage Drives and Power Conversion
-
ABB 5SHX06F6010 IGCT Module – High-reliability Press-pack Device for Medium-voltage Drives and Converters
-
ABB 5SHX26L4520 IGCT Gate Unit – Reliable Drive Module for High-power IGCT Stacks
-
ABB IGCT Gate Unit 5SHY3545L0002 (CVC750BE101) – Reliable Driver Module for Medium-voltage Converter Stacks
Product Details
| HS Code | 854130 | Stock Status | In Stock | |
| Product Color | Brand New OR Used | Warranty | 12-month Warranty | |
| Payment method | 50% advance payment, f | Delivery time | 1 week for in-stock No more than one mon | |
| Express delivery methods | FedEx, UPS, DHL | Trademark | ABB | |
| Origin | Sweden |
Product Description
Warranty: 365 days
Delivery: 1 week for in‑stock; no more than one month at the latest
Payment: 50% advance payment; full payment before delivery
Express options: FedEx, UPS, DHL
Traceability: Lot/serial traceability provided; photos and test reports available on request
Genuine ABB IGCT design – Built for medium‑voltage drive stacks with robust turn‑off capability and low on‑state loss for better efficiency.
Press‑pack construction – Uniform current distribution and reliable thermal path; ideal for high cycling and high dI/dt applications.
Matched with ABB gate unit family – Works with ABB gate unit references (5SXE series) using fiber‑optic triggering for noise immunity.
Service‑friendly replacement – Drop‑in fit within the intended ABB drive stacks; no firmware changes typically required.
Proven in harsh duty – In many cases used on pumps, fans, compressors, marine or mining drive systems running 24/7.
Traceable and screened – Seems to be supplied with factory traceability and electrical screening, reducing infant failures.
| Brand / Model | ABB 3BHB024548R0002 (Ref: 5SXE06-0160) |
| Product Type | IGCT (Integrated Gate‑Commutated Thyristor) press‑pack module |
| HS Code | 8541.30 (Thyristors, diacs and triacs; other than photosensitive devices) |
| Power Requirements | Semiconductor element is passive; gate unit typically supplied from 24 V DC in ABB drive stacks |
| Signal I/O | Fiber‑optic gate trigger via ABB gate unit; anode/cathode power terminals for main circuit |
| Cooling | Clamped to heat sink; used with forced‑air or water‑cooled plates depending on drive frame |
| Installation Method | Press‑pack clamping with calibrated force; follow ABB torque/force specification and creepage/clearance rules |
| Operating Environment | MV drive cabinet environment; typical ambient 0–40 °C with derating per drive manual |
Note: Detailed electrical ratings are stack‑specific; verify against your drive type code and position in the power cell before ordering.
Application FieldsABB medium‑voltage drives (e.g., large pumps, fans, compressors, mill drives) where high availability is needed
High‑power AC/DC converters and front‑end rectifiers in industrial plants
Marine propulsion and offshore equipment with continuous duty cycles
Power quality and reactive compensation systems (STATCOM/SVC) using IGCT stacks
Reliability under stress: Press‑pack IGCTs handle thermal and cyclic loads gracefully; fewer surprise trips on heavy process lines.
Compatibility: Proper fit in target ABB stacks means minimal commissioning time and no control re‑engineering in most cases.
Lower lifecycle cost: Reduced conduction loss can translate to measurable energy savings over multi‑year operation.
Risk control: Genuine parts and test evidence help avoid counterfeit risk, which is a real issue in high‑power semiconductors.
Technical support: Help with part cross‑reference, clamp force settings, and FO link checks so your maintenance window stays short.
Mounting/clamping: Use clean, flat, burr‑free surfaces; apply the specified clamp force with a calibrated tool; re‑torque per maintenance schedule.
Cooling: Verify thermal contact and coolant flow (for water‑cooled sinks); keep delta‑T within drive manual limits.
Gate unit & fiber: Inspect and clean fiber‑optic ends; maintain minimum bend radius; route away from HV busbars to reduce noise pickup.
Wiring/busbars: Ensure correct anode/cathode orientation; tighten to specified torque; if silvered, avoid abrasive cleaning that removes plating.
Safety: Lock‑out/tag‑out, discharge DC link capacitors, verify zero energy; use MV‑rated PPE. It sounds obvious, but this is where downtime gets avoided.
Routine checks: Thermal imaging under load, coolant quality checks, dust cleaning, and periodic verification of clamp force; update drive firmware only if recommended by ABB.
Manufactured under ISO 9001 quality systems
CE compliant; RoHS conform for applicable configurations
Meets ABB internal screening for power semiconductors used in MV drives
Warranty: 365 days
One thing I appreciate is pairing the IGCT with the correct accessories to reduce commissioning headaches:
ABB gate unit (5SXE series): Fiber‑optic triggered driver matched to the IGCT characteristics.
Fiber‑optic gate cables: Drive‑rated FO links with proper connectors and length to suit cabinet routing.
RC snubber assembly: As specified by the drive stack to control dv/dt and equalize voltage.
Clamping kit & heat sink: Correct hardware to achieve the specified clamp force and thermal performance (air or water‑cooled).
Maintenance teams typically tell us that replacing this IGCT during a planned stop takes less time than expected—most of the effort is in cleaning, clamping, and FO link checks. Getting the correct 3BHB/5SXE pairing up front avoids a second shutdown, which nobody wants.
