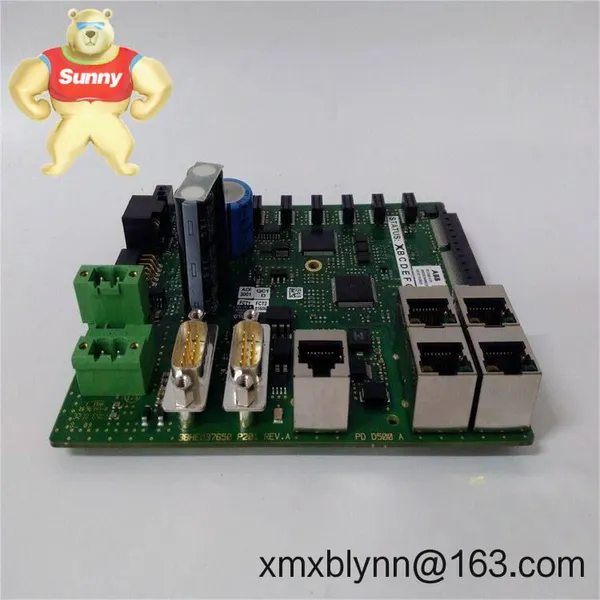

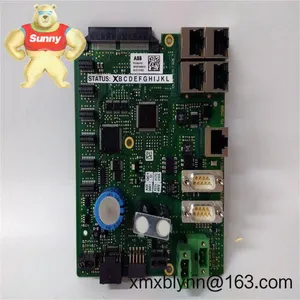

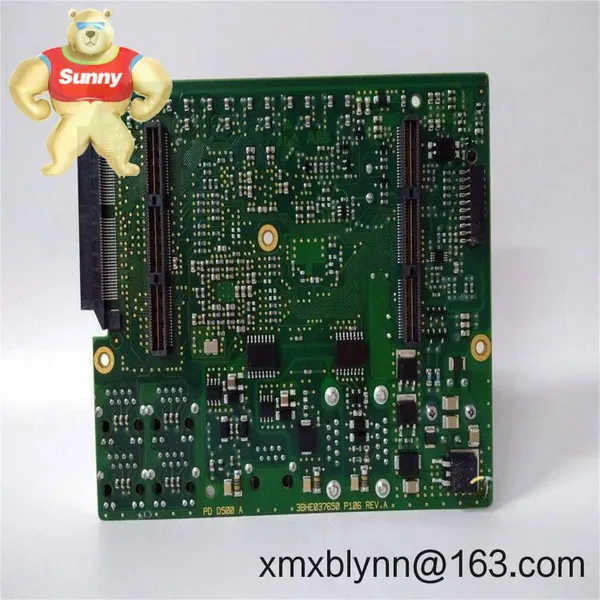

Help CenterABB PDD500A101 (3BHE037649R0101) – Industrial Control Driver Board for ABB Power Converter and Excitation Platforms
Related Products
-
ABB PFCA401SF – Fieldbus Communication Adapter for Reliable DCS/PLC ConnectivityUS$ 2360.00MOQ: 1 Combo -
ABB B3EA (HENF315147R1) Control Board – OEM Plug-in PCB for ABB Drive and Controller PlatformsUS$ 4216.00MOQ: 1 Blade
-
B5EC HENF105077R1 – Panel Temperature Controller (E5EC-series Variant) for Precise Thermal ControlUS$ 4216.00MOQ: 1 Blade
-
HENF105082R4 (B5EEd) Industrial Control Board – Field‑replaceable Module for Drive/robotics CabinetsUS$ 4216.00MOQ: 1 Blade
-
ABB CI570 3BSE001440R1 – Main Fieldbus Controller for FOUNDATION Fieldbus H1 SegmentsUS$ 4216.00MOQ: 1 Blade
Warranty period: 365 days
Delivery time: 1 week for in-stock items; no more than one month at the latest
Payment terms: 50% advance payment; full payment prior to delivery
Express delivery options: FedEx, UPS, DHL
Genuine ABB spare part – Identified by PDD500A101 and order code 3BHE037649R0101 for accurate matching.
Plug-in, service-friendly form factor – Designed to slot into ABB converter/excitation racks, reducing replacement time.
Industrial-grade build – Components and PCB layout suited to continuous operation in control cabinets.
Isolated control interfaces – Typically supports isolated signal paths to protect upstream controllers and power stages.
Status indication and test access – You might notice clear status points/headers that help maintenance teams verify operation quickly.
Revision-aware compatibility – In many cases, hardware/firmware revisions must match the host system; we help verify before shipment.
| Brand / Model | ABB PDD500A101 |
| Order Code | 3BHE037649R0101 |
| HS Code | 8538.90 (Parts suitable for apparatus of 8535/8536/8537) |
| Power Requirements | 24 VDC control supply (typical for ABB control boards) |
| Operating Temperature | 0 to +55 °C (typical control cabinet conditions) |
| Signal Input/Output Types | Isolated control and feedback signals for power converter interfaces (depends on application) |
| Communication Interfaces | Backplane/edge connector; service headers as applicable to revision |
| Installation Method | Plug-in PCB for ABB converter/excitation racks; guided slot with mechanical fixation |
| Dimensions & Weight | Board-level module; compact and lightweight (exact drawing available on request) |
This module is commonly deployed in ABB power electronics cabinets where reliable, isolated control of the power stage is required. Typical environments include:
Excitation systems and synchronous machine control
Industrial converters and drive cabinets (continuous process lines)
Power generation and marine auxiliary systems
Metals, paper, and chemical plants needing high uptime
A maintenance lead at a steel plant told us they swapped a PDD-series board during a short stop, and the line came back up within the same shift—no wiring changes, just careful seating and verification.
Reliability – Industrial-grade build supports continuous operation; reduced risk of nuisance trips.
Compatibility – Matched to ABB platforms that specify PDD500A101; we help verify revision and fit to avoid surprises.
Lower downtime costs – Plug-in replacement keeps service windows short and predictable.
Technical support – From my experience, pre-shipment checks (photos, revision confirmation) prevent most on-site issues.
Cabinet & environment – Install in a clean, ventilated control cabinet; maintain clear airflow around the rack.
ESD handling – Use antistatic protection when unpacking and inserting the board.
Wiring & seating – Power down, verify 24 VDC control supply integrity, and ensure the board fully seats in the guide rails/backplane.
Revision checks – Match hardware/firmware revisions to the host system configuration (this is often critical for seamless startup).
Routine care – Periodic dust removal (dry air, non-abrasive), visual inspection of connectors, and verification of fastening points.
Functional verification – After replacement, run the system’s built-in diagnostics and record baseline values for future reference.
Manufactured by ABB under ISO 9001 quality systems
CE conformity applicable to host assembly
RoHS compliance in most cases for board-level components
365-day warranty from us for repair/replace support
If you’d like, share the installed system type and any existing board revision. One thing I appreciate is confirming these details upfront—it typically shortens commissioning time and avoids incompatible swaps.
