High - Performance Turbine Flow Meter Series for Liquid, Gas Measurement in Industrial Automation

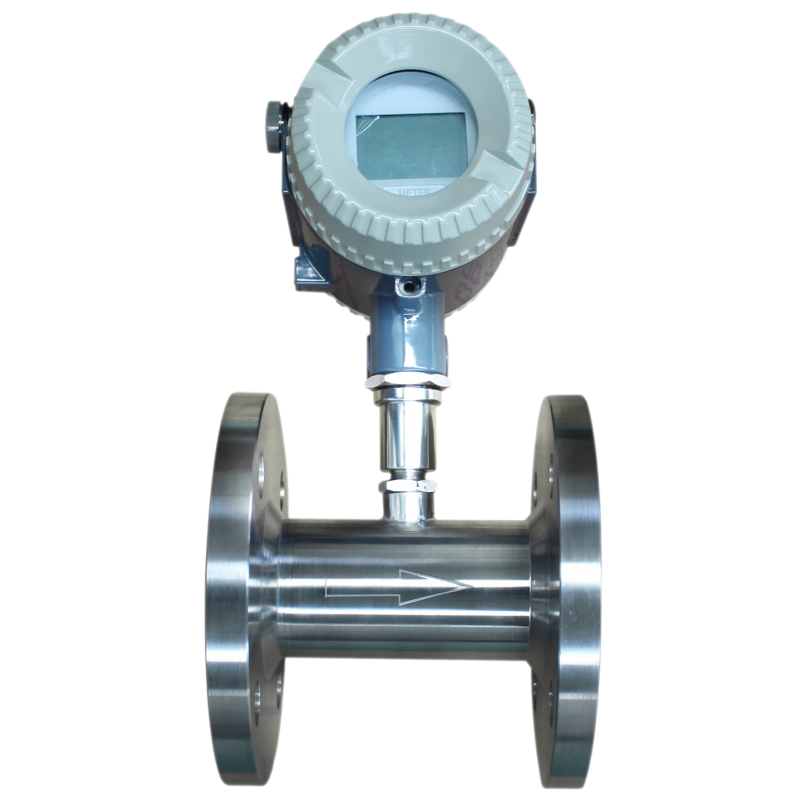

Product Name: Turbine Flowmeter Series

• Measuring Medium: Liquids without impurities and strong corrosiveness.

• Output Signal: Pulse signal, 4 - 20mA signal.

• Communication Output Function: RS485 communication, HART protocol, etc.

• Accuracy Grade: ±1% F.S, ±0.5% F.S, ±0.2% F.S (customized).

• Medium Temperature: -20°C - +120°C; -20°C - +180°C (accuracy grade 1.0).

• Explosion - proof Grade: ExdIICT6Gb.

• Explosion - proof Number: CN Ex17.1236.

• Patents: More than ten independent patents.

•

• Nominal Diameter (mm): 4, 10, 15, ……100, 125, 150, 200, 250, 300 (insertion type for 300 - 1000).

• Nominal Pressure (MPa): 6.3MPA, 2.5MPA, 1.6MPA.

• Medium Temperature (°C): Piezoelectric type: -40 - 260, -40 - 320; Capacitive type: -40 - 300, -40 - 400, -40 - 450 (ordered as per agreement).

• Body Material: 304 stainless steel, other materials (customized).

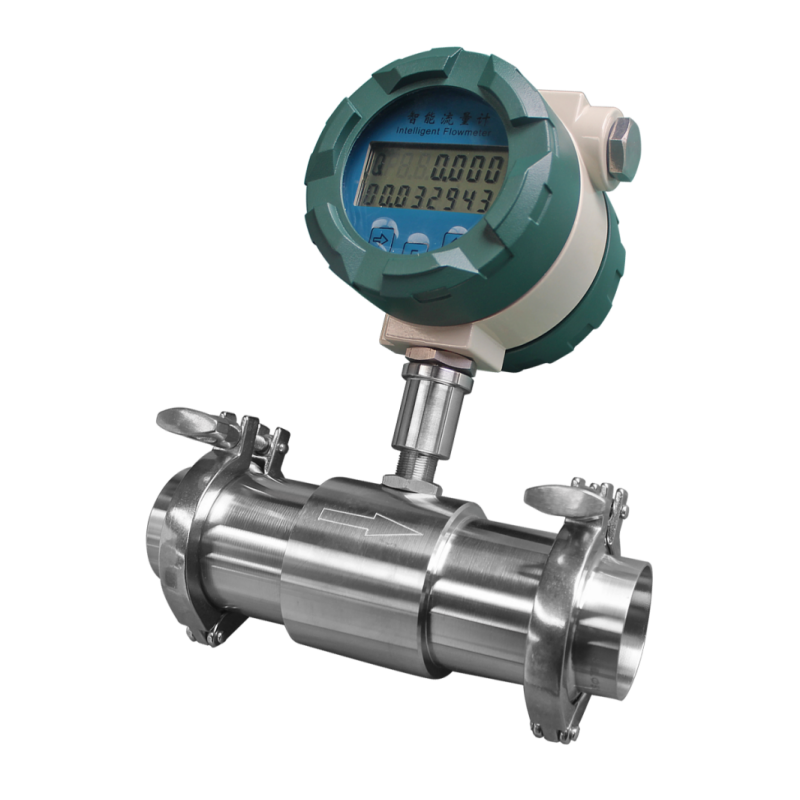

• Installation Method: Thread installation, clamp installation, flange installation.

• Accuracy: ±0.2% F.S, ±0.5% F.S, ±1% F.S.

• Supply Voltage: +12VDC, +24VDC.

• Battery - powered Type: 3.6V lithium battery.

• Output Signal: Pulse signal, current signal, RS485.

• Pressure Loss Coefficient: Complies with JB/T9249 standard, Cd ≤ 2.4.

• Protection Grade: Ordinary type IP65, submersible type IP68.

• Environmental Conditions: Temperature -20°C - 55°C; Relative humidity ≤ 90%; Atmospheric pressure 106 - 106kPa.

• Applicable Medium: Gas, liquid.

• Transmission Distance: Three - wire system pulse output type: ≤300m; Two - wire system standard current output type (4 - 20mA): Load resistance ≤750Ω.

•
