High Precision Ultrasonic Level Meter With ±0.25% Accuracy, 0-20m Range, IP65/67 Protection, 4-20mA/RS485 Outputs for Harsh Industrial Environments

High Precision Ultrasonic Level Meter With ±0.25% Accuracy, 0-20m Range, IP65/67 Protection, 4-20mA/RS485 Outputs for Harsh Industrial Environments thumbnail-1
High Precision Ultrasonic Level Meter With ±0.25% Accuracy, 0-20m Range, IP65/67 Protection, 4-20mA/RS485 Outputs for Harsh Industrial Environments photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Kind:
Other, Ultrasonic Level Meter
Contact Supplier Request Quote Chat Now
Shanghai CAMP Environmental Protection Technology Co., Ltd.
Platinum Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Kind Other, Ultrasonic Level Meter

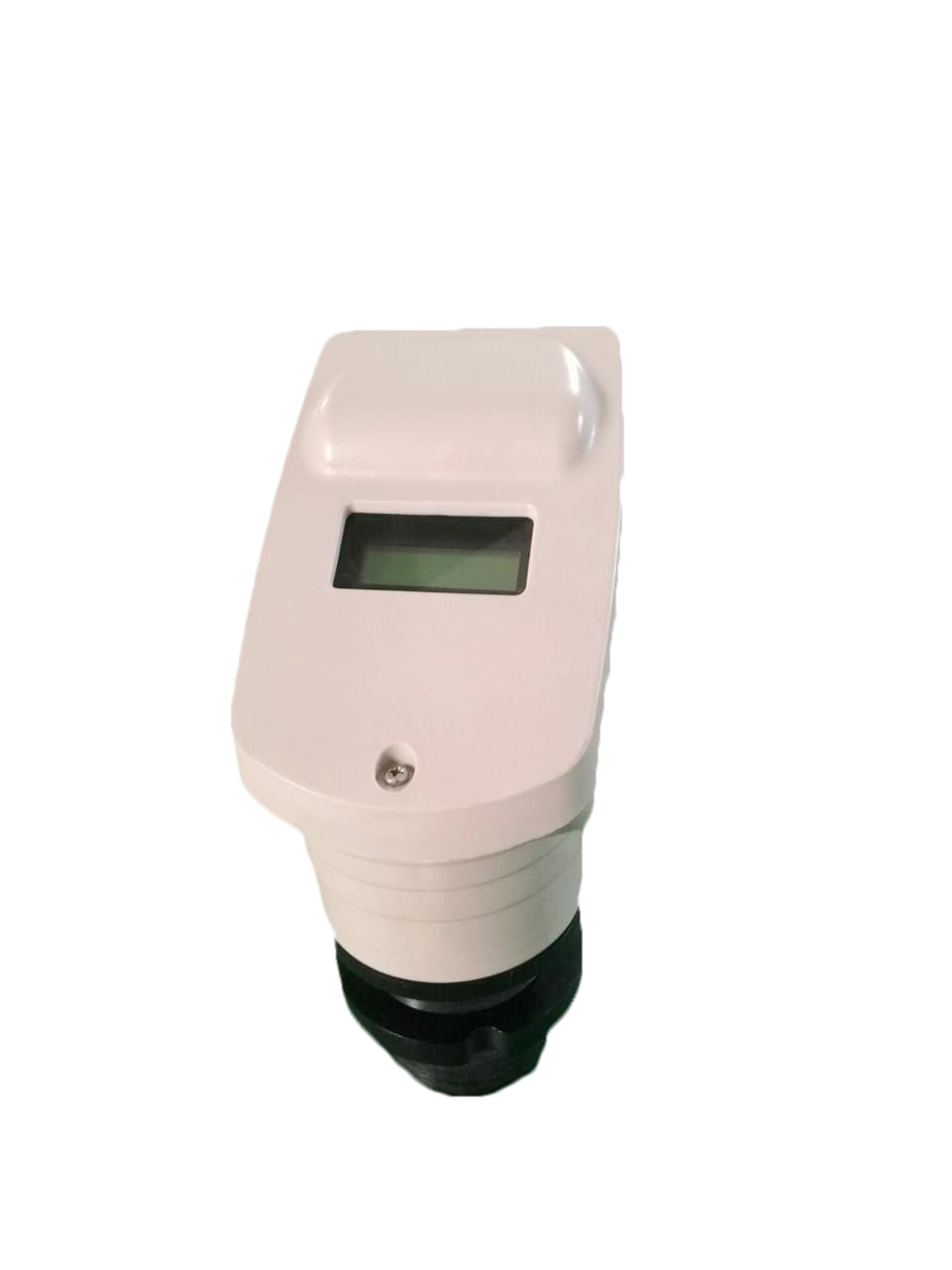

Ultrasonic Liquid (Material) Level Meter
The ultrasonic liquid level meter series adopts high - quality power modules from the circuit design and power supply part, and selects imported high - stability and reliable components, which can fully replace similar imported meters. It has exclusive ultrasonic intelligent software for intelligent echo analysis, without any debugging or other special steps, and has the functions of dynamic display and dynamic analysis.
The company's exclusive ultrasonic intelligent technology greatly improves the accuracy of the instrument, with a wave position accuracy of up to 0.25%, and can resist various interferences.
This instrument is a non - contact instrument, not in direct contact with the liquid level, so the failure rate is low. The instrument provides a variety of installation methods, and users can completely calibrate the instrument through the manual.

All input and output of the instrument have lightning protection and surge protection functions.

超声波液位计

Technical Performance

  • Power Supply: 24VDC, 220VAC, 12VDC

  • Output Signal: 4 - 20mA, RS485

  • Range: 0 - 5, 0 - 10, 15, 20M

  • Medium Temperature: - 10 - 60℃

  • Ambient Temperature: - 20 - 60℃

  • Shell Protection: IP65, IP67

  • Control: Two - way relay electrical realization of lower limit alarm control

  • Display Mode: Backlit LCD 16 * 2 LCD display, which can display liquid level, relay status, signal strength and other auxiliary information. The sensor shell is made of polytetrafluoroethylene.

  • Accuracy: 0.25%, 0.5% optional

Application
It is widely used in industrial automation equipment matching and process control fields such as petrochemical, metallurgy, electric power, medicine, chemical industry, water treatment, light industry, and food.


Product Tags: Level Measuring Instruments , Ultrasonic Level Meter , water level meter
