Explosion - Proof Pressure Transmitter Series

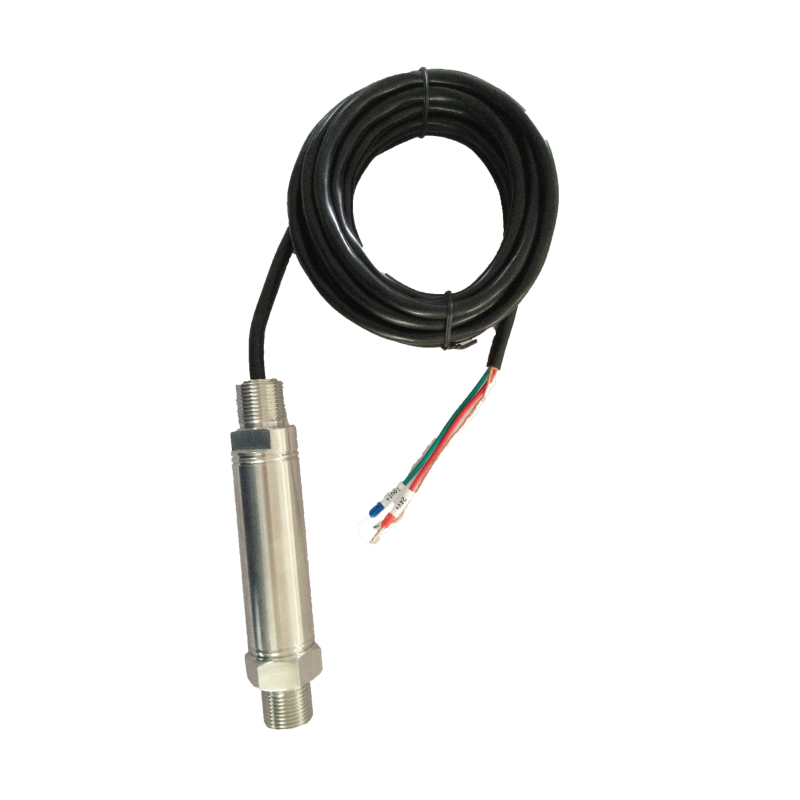

防爆型压力变送器(1)_副本

Product Introduction
The explosion - proof pressure transmitter adopts a diffused silicon pressure core as the sensing element. The built - in processing circuit converts the sensor millivolt signal into standard voltage, current, and frequency signals for output. It can be directly connected to computers, control instruments, display instruments, etc., and supports long - distance signal transmission. The explosion - proof shell is of an integrated all - stainless - steel structure, which undergoes multiple stainless - steel welding processes, achieving an all - solid - state design. Thus, it can be used for a long time in harsh environments. Besides, the product is easy to install and has high anti - interference and anti - impact properties.
Technical Specifications

  • Power Supply: 12VDC - 36VDC (24VDC is conventional).

  • Output Signal: 4 - 20mA.

  • Measurement Range: - 0.1... 0.02... 100Mpa.

  • Compensation Temperature: - 10 - 70℃.

  • Medium Temperature: - 20 - 80℃.

  • Environmental Protection: IP65.

  • Explosion - Proof Grade: CT4.

  • Pressure Types: Gauge pressure, absolute pressure, negative pressure.

  • Connection: M201.5, G1/2, G1/4, M272, NPT1/4, NPT1/2, flange, clamp, etc. (multiple installation methods are optional).

  • Accuracy: 0.25, 0.3, 0.5 (multiple options).

  • Long - term Stability: ≤0.02% FS/year.

  • Zero Point Temperature Drift: ±0.03% FS/℃.

  • Sensitivity Temperature Drift: ±0.03% FS/℃.

  • Overpressure Resistance: 200% FS.

Features

  • Constructed with 316L stainless steel isolation diaphragm.

  • High precision, all - stainless - steel structure.

  • Equipped with a micro - type amplifier circuit for voltage and current signal output.

  • Excellent anti - interference performance and good long - term stability.

  • Diverse external structural designs.

  • Warranty period: 12 months.

Applications
Widely used in industrial automation equipment supporting, as well as process control fields such as aerospace, petrochemical, metallurgy, electric power, pharmaceutical, chemical, water treatment, light industry, food, and shipbuilding.


Product Tags: Pressure Transmitter , Explosion-proof Pressure Sensor , Explosion - Proof Pressure Transmitter
